| Westerschelde 24 Apriil 2018 |
 |
|
| Westerschelde 24/04/18 | |
|
Name |

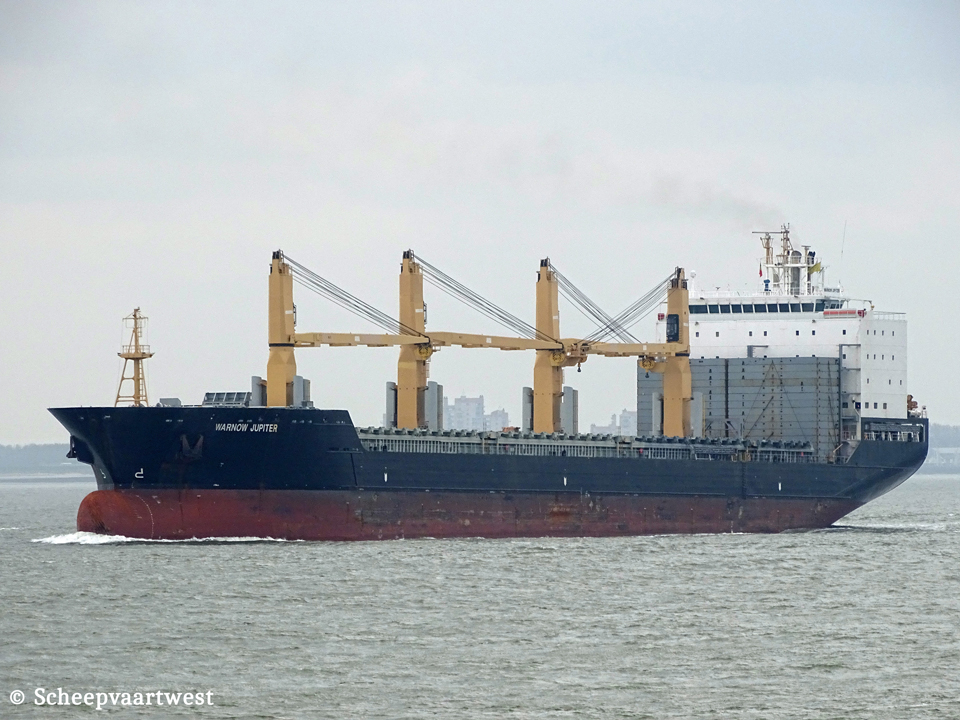

WARNOW JUPITER |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9594482 |
|
Call sign |
D5AD5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2011 - 2011 Germany |
|
GT |
22.963 t |
|
DWT |
33.402,9 t |
|
NT |
10.602 t |
|
Number of 20ft containers |
On deck: 484 In hold: 674 Total: 1.158 |
|
Number of 40ft containers |
On deck: 218 In hold: 327 Total: 545 |
|
Container capacity 14t |
545 |
|
Reefer capacity |
30 |
|
Length |
179,44 m overall 168,94 m between perpendiculars |
|
Breadth |
28,23 m extreme 28,01 m moulded |
|
Draught |
Summer: 10,80 m |
|
Depth |
15,10 m |
|
Speed |
Max: 15,5 knots |
|
Built |
2011 |
|
Keel laid |
23/12/2008 |
|
Launch date |
16/06/2011 |
|
Date of completion |
13/10/2011 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co. Ltd. China |
|
Yard number |
582 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x STX/MAN-B&W 6S50MC-C7 - 2 stroke 6 cylinder combustion engine 8.800 kW / 11.968 bhp at 127,0 rpm Transmission: main propulsion acts directly on the propellershaft Starter type: compressed air direct |
|
Propellers |
1x Fixed pitch propeller (keyless) - aft at 127,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 50,0 m² Heating surface: 340,0 m² Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Electric installations |
1x Plant 400 V - 522,5 kVA 2x Plant 400 V - 627,5 kVA 1x Plant 400 V - 200 kVA 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 300 Ah 2x Plants each 24 V - 2.720 Ah |
|
Generators |
2x MAN B&W 6L16/24 main diesel generatorsets each 627,5 kVA 1x MAN B&W 5L16/24 main diesel generatorset 522,5 kVA |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorset 200 kVA |
|
Batteries |
2x Batteries for automation, each 1360 Ah 2x Batteries for automation, each 1360 Ah 2x Batteries for UPS navigation, each 300 Ah 2x Batteries for start emergency engine, each 200 Ah |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2500 litres - 8,0 bar 1x Receiver 100 litres - 8,0 bar |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 37.490 m³ Grain: 39.927 m³ |
|
Tank capacities |
Heavy fuel oil: 2,049 m³ Gas oil: 126 m³ Fresh water: 171 m³ Water ballast: 12.957 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length 641,8 m Diameter: 70 mm |
|
Cargo gear |
3x JIB cranes each 60.00 / 50.00 / 40.00 t 1x JIB cranes 60.00 / 50.00 / 40.00 t |
|
Crew size |
30 |
|
Operator |
Marlow Ship Managemant Deutschland Hamburg Germany |
|
Registered owner |
Warnow Jupiter GmbH & Co KG Rostock Germany |
|
Renamed |
2020 - 2022 AAL Jupiter Liberia, Monrovia - Call sign: D5AD5 Owner: Warnow Schiffahrtkontor, Rostock - Germany Manager: Marlow Shipmanagement Deutschland, Hamburg - Germany 2022 The Whale Shark Liberia, Monrovia - Call sign: D5AD5 Owner: Lilla Shipping 6 Six GmbH & Co. Manager: Marlow Ship Management Deutschland GmbH & Co. KG, Hamburg - Germany |
|
Latest data adjustment |
08 April 2023 |
