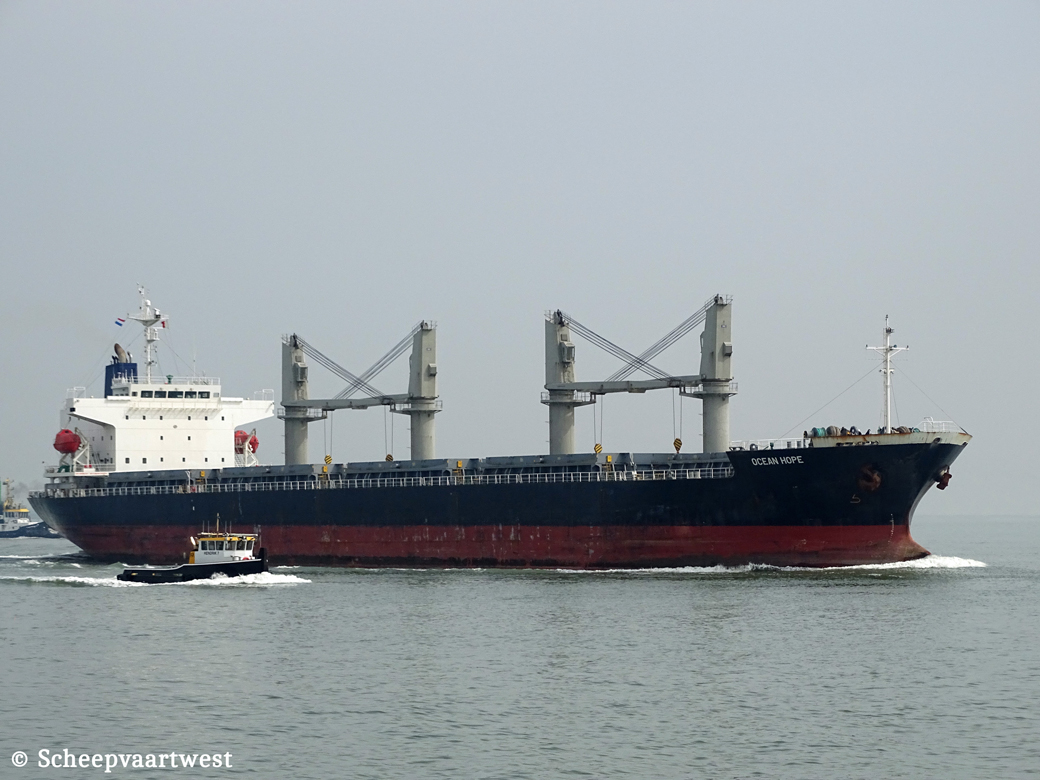

| Westerschelde 14 April 2018 |
|
Name |
OCEAN HOPE |
|
Type |
Geared bulk carrier |
|
IMO-number |
9527207 |
|
Call sign |
3EWD6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
20.992 t |
|
DWT |
32.877 t |
|
NT |
11.228 |
|
Length |
181,16 m overall |
|
Breadth |
28,00 m |
|
Draught |
Summer: 10,03 m |
|
Moulded L x B x D |
172,50 x 28,40 x 14,250 m |
|
Registered L x B x D |
173,45 x 28,40 x 14,250 m |
|
Freeboard |
Summer: 4.292 mm |
|
Depth |
14,25 m moulded |
|
Speed |
Max: 16,3 knots |
|
Built |
2012 |
|
Keel laid |
25/11/2011 |
|
Launch date |
27/03/2012 |
|
Date of completion |
29/03/2012 |
|
Builder |
Kanda Shipbuilding Co., Ltd. Kure Japan |
|
Yard number |
529 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi/Kobe 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 6.000 kW / 8.158 hp at 114,0 Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 455 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 1,84 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 1.750 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 41.964 m³ Grain: 43.488 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.671 m³ Fresh water: 131 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
ISM & commercial manager |
World Marine Co Ltd. 9th Floor, Kanpai Building, 22-27, Higashigotanda 5-chome, Shinagawa-ku Tokyo, 141-0022 Japan |
|
Registered owner |
Lua Line/Okino Kaiun Care of World Marine Co Ltd. 9th Floor, Kanpai Building, 22-27, Higashigotanda 5-chome, Shinagawa-ku Tokyo, 141-0022 Japan |
|
Renamed |
2022 Grampus Dignity Republic of Panama, Panama City - Call sign: 3EWD6 Manager: Dalian Qiangdong Ship Management Co., Ltd. Owner: Sinya Shipping Pte. Ltd. |
|
Latest data adjustment |
26 February 2023 |
