Westerschelde 03 April 2019 |
 |
 |
 |
||
| Westerschelde 03/04/19 | Westerschelde 03/04/19 | Antwerpen 16/01/20 |
|
Name |

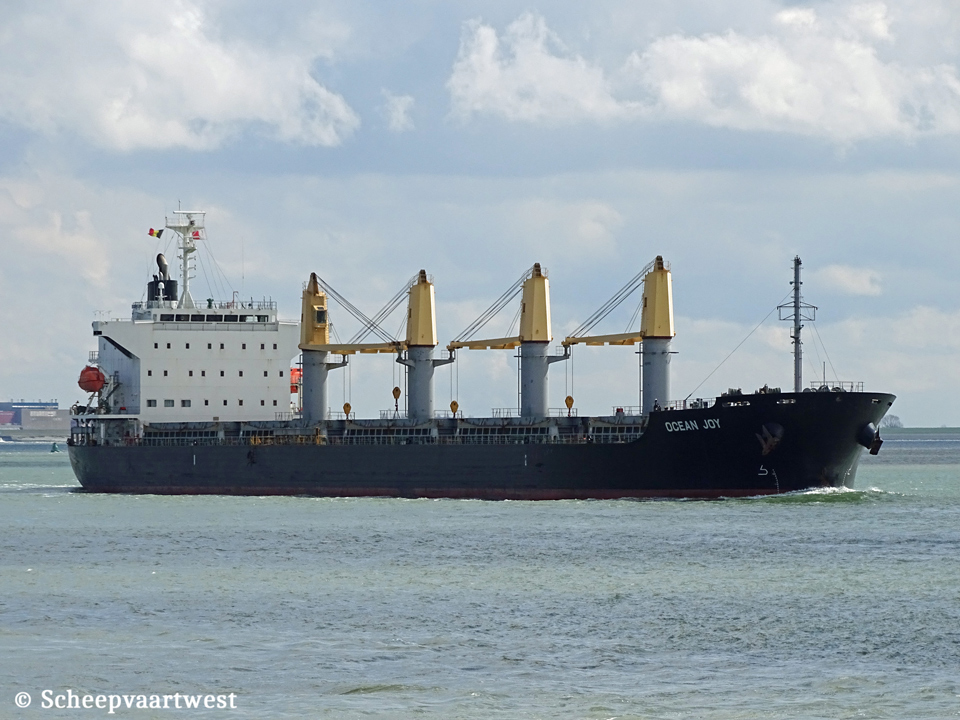

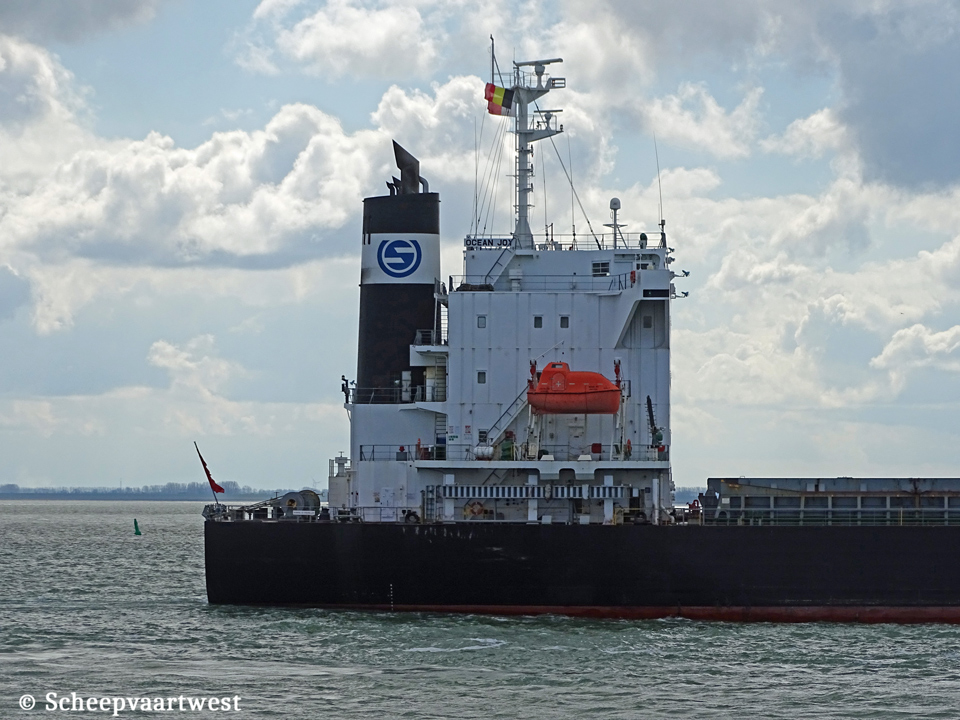

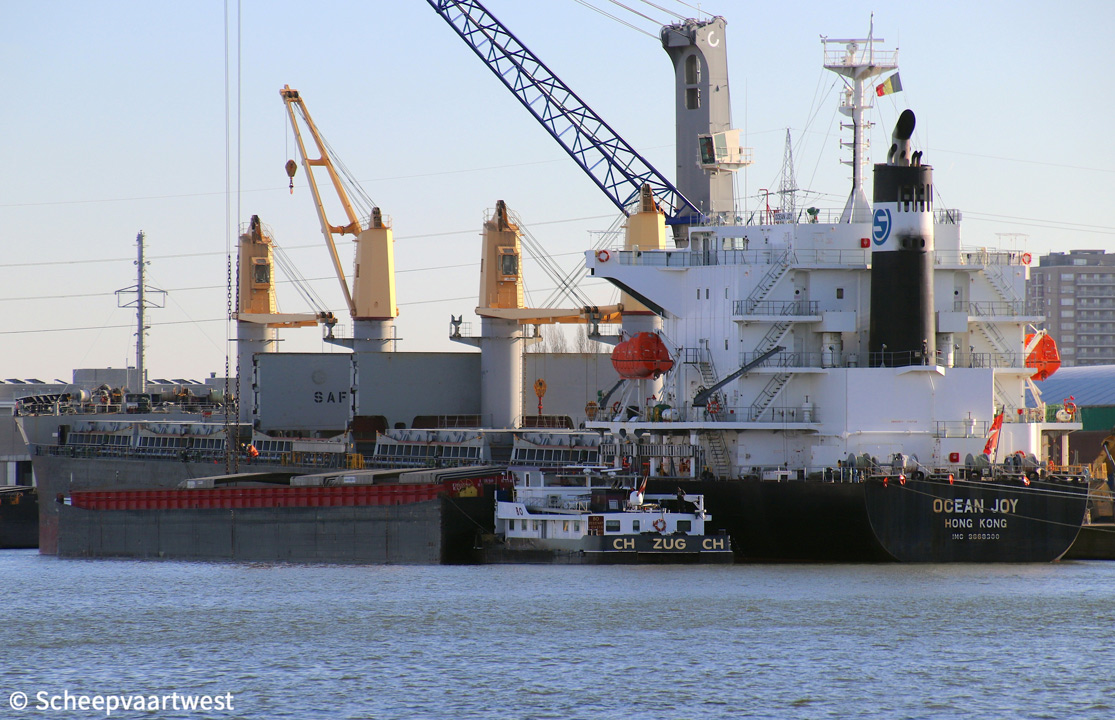

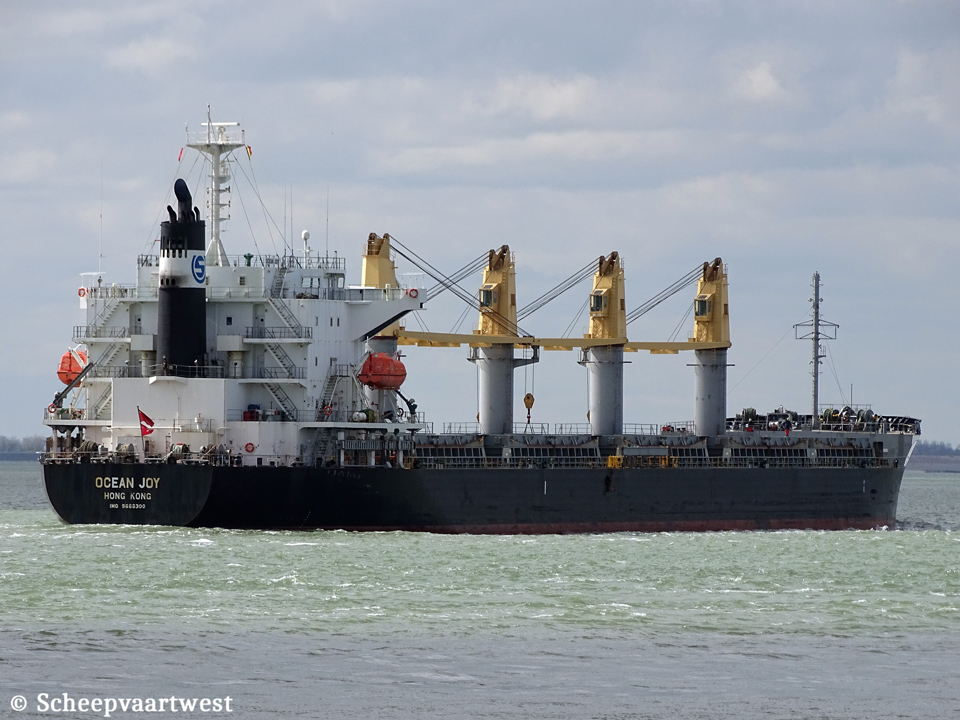

OCEAN JOY |
|
Type |
Bulk carrier - Strengthened for heavy cargo - Handymax |
|
IMO-number |
9668300 |
|
Call sign |
VRMN2 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
23.268 t registered |
|
DWT |
Summer: 38.114 t |
|
NT |
12.134 t registered |
|
Length |
179,97 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Max: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Freeboard |
4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max: 16,2 knots Service: 14,7 knots |
|
Built |
2013 |
|
Keel laid |
28/03/2013 |
|
Launch date |
15/07/2013 |
|
Date of completion |
24/06/2013 |
|
Builder |
Imabari Zosen Shipbuilding Co., Ltd. Japan |
|
Yard number |
820 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Makita/B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.040 kW / 9.572 hp at 129,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler: 8,0 bar Evaporation: 1,95 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 550 kVA - 440 kW - 679 hp |
|
Emergency generator |
1x Diesel generatorset 65 kVA - 52 kW - 111 hp |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.369 m³ Grain: 47.125 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.946 m³ Fresh water: 294 m³ |
|
Lifting equipment |
2x Provision crane - SWL 0,9 t each 1x Provision crane - SWL 2,0 t |
|
Cargo gear |
4x Deck cranes - SWL 30,7 t each |
|
Commerical manager |
United Ocean Shipping SA 11th Floor, 129-3, Zhongshan N Road, Section 2, Zhongshan District, Taipei City, 10448, China Republic of (Taiwan) |
|
ISM manager |
Prosperity Steamship Co., Ltd. Ground Floor, Tai Fat Building 43, Ko Shing Street, Sai Ying Pun, Western Hong Kong |
|
Registered owner |
Ocean Joy SA Care of United Ocean Shipping SA , 11th Floor, 129-3, Zhongshan N Road, Section 2, Zhongshan District, Taipei City, 10448, China Republic of (Taiwan) |
|
Latest data adjustment |
22 July 2021 |
