| Westerschelde 21 April 2017 |
|
Name |

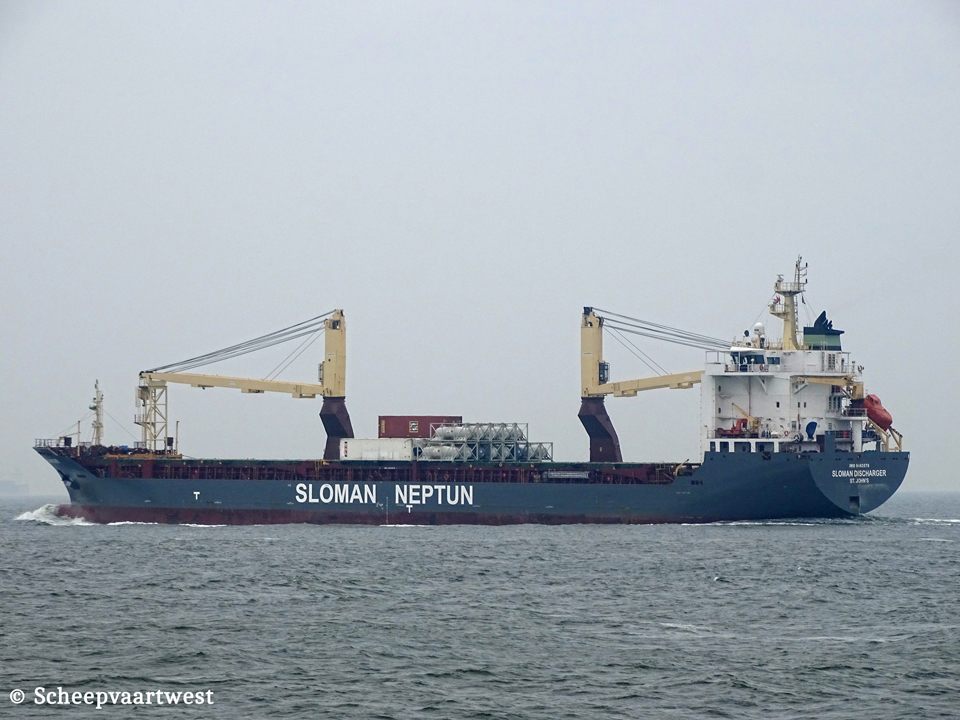

SLOMAN DISCHARGER |
|
Previous names |
2011 - 2016 Megan C. 2016 - 2017 Megan |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9463578 |
|
Call sign |
V2GZ6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
Isle of Man, Douglas - United Kingdom - Call sign: 2EFU5 |
|
GT |
9.530 t |
|
DWT |
12.914 t |
|
NT |
4.398 t |
|
Number of 20ft containers |
771 |
|
Number of 40ft containers |
338 + 89 TEU |
|
Container capacity 14t |
546 |
|
Reefer capacity |
50 |
|
Length |
138,07 m overall 130,00 m between perpendiculars |
|
Breadth |
21,33 m extreme 21,00 m moulded |
|
Draught |
Summer: 8,07 m |
|
Depth |
11,00 m |
|
Speed |
14,5 knots |
|
Built |
2011 |
|
Keel laid |
15/12/2008 |
|
Launch date |
18/12/2010 |
|
Date of completion |
05/05/2011 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co. Ltd. Jiangyin China |
|
Yard number |
YZJ2007-794 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.337 hp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired 39,00 m² - 13,0 bar 1x Thermal oil heater, exhaust heated 184,00 m² - 10,0 bar |
|
Shaft generator |
1x 938 kVA / 750 kW |
|
Generators |
3x Yanmar 6N18(A)L-SV main diesel generatorsets each 625 kVA - 500 kW - 679 hp |
|
Emergency generator |
1x Caterpillar 4XCAT43406 diesel generatorset 346 kVA - 277 kW - 376 hp |
|
Bow thruster |
1x 550 kW |
|
Number of holds |
2 Hold 1: 37,50 x 17;50 m Hold 2: 50,25 x 17,50 m |
|
Cargo hold capacity |
Hold 1: 6.436 m³ Hold 2: 9.794 m³ Total: 16.230 m³ |
|
Number of hatches |
2 Hatch 1: 37,50 x 17,50 m Hatch 2: 50,25 x 17;50 m |
|
Hatch cover type |
MacGregor folding type hatch covers |
|
Max permitted loads |
Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 900 m³ Gas oil: 50 m³ Fresh water: 140 m³ Ballast: 5.037,4 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 52 mm |
|
Cargo gear |
2x Deck cranes starboard side mounted - SWL 80, t each Combinable - SWL 160 t |
|
Crew size |
15 |
|
Manager |
Sloman Neptun Antiengesellschaft Langenstraße 44 28195 Bremen Germany |
|
Registered owner |
GbR MS "Sloman Discharger" |
|
Latest data adjustment |
07 April 2023 |
