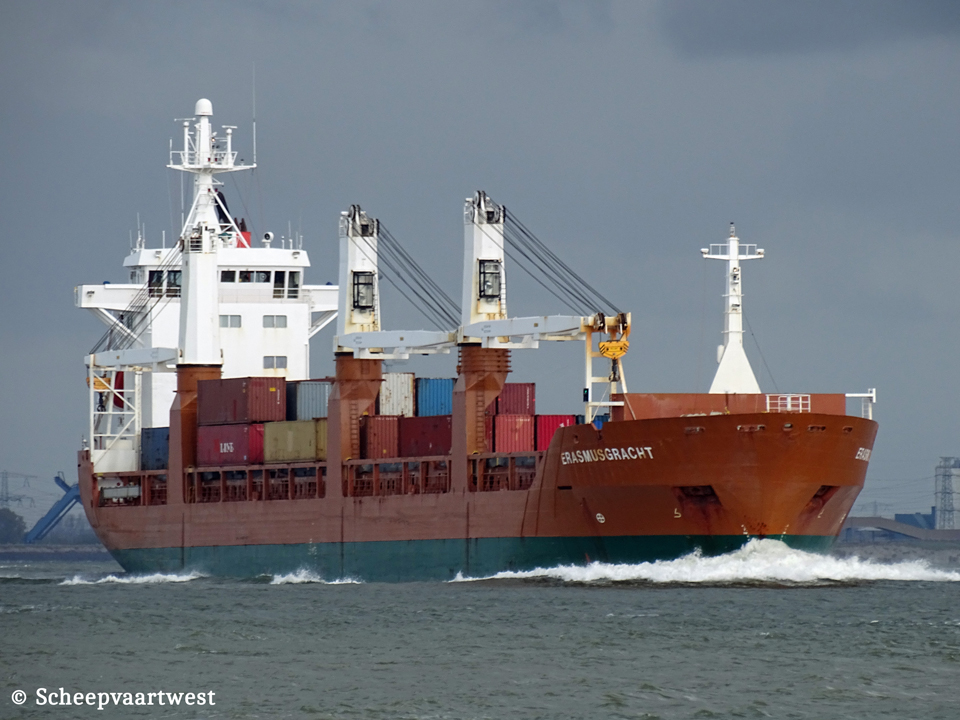

Erasmusgracht IMO 9081368 01
Westerschelde 27 April 2016

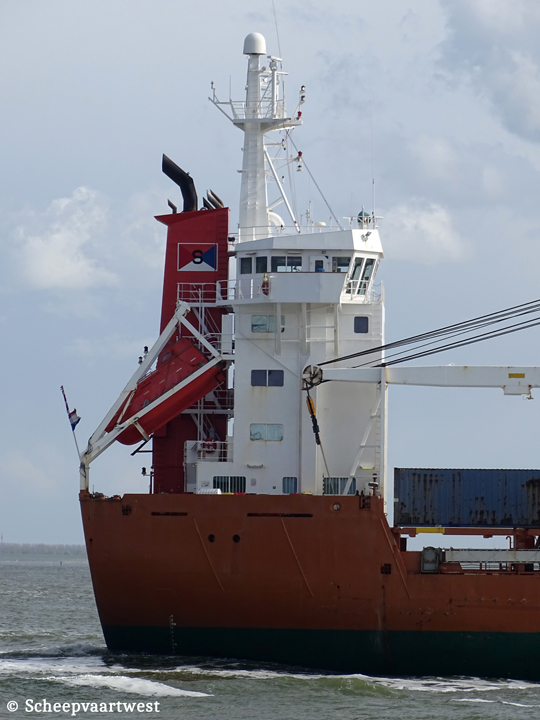

Erasmusgracht IMO 9081368 02
WS 27/04/16


Name

ERASMUSGRACHT

Type

Multi-purpose dry cargo ship

IMO-number

9081368

Call sign

PDYV

Flag

The Netherlands

Port of registry

Amsterdam

Previous flags

07/2014 - 07/2014 Canada - Call sign: CFK5359

GT

8.448 t

DWT

12.754 t

NT

4.651 t

Number of 20ft containers

In holds: 296

On deck: 434

Total: 730

Number of 40ft containers

In holds 136 + 24 TEU

On deck: 186 + 62 Teu

total: 322 + 86 TEU

Reefer capacity

322

Length

136,35 m overall

127,40 m between perpendiculars

Breadth

19,02 m extreme

Draught

Max: 8,51 m

Depth

11,65 m moulded

Speed

Max: 16,0 knots

Built

1994

Keel laid

03/11/1993

Launch date

23/04/1994

Delivery date

03/10/1994

Builder

A/S Ulstein Mek. Verksted

Ulsteinvik

Norway

Yard number

243

Hull material

Steel

Hull type

Single hull

Number of decks

1

Main engine

1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 hp

Builder: Wärtsilä Finland Oy, Vaasa/Vasa - Finland

Propellers

1x Fixed pitch propeller

Bow thruster

1x 500 kW / 700 hp

Number of holds

2

Cargo hold capacity

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

Hold ventilation

30x Per hour /empty holds

Number of hatches

Weather deck:

N° 1: 26,60 x 15,80 m

N° 2: 31,74 x 15,80 m

N° 3: 16,60 x 15,80 m

Tween deck:

91,94 x 15,80 m

Consisting of 17 steel pontoons:

11x 6,35 x 15,80 m

2x 4,36 x 15,80 m

3x 3,19 x 15,80 m

1x 3,19 x 15,80 m

Timber

17.500 m³ length package

Floor spaces

Tank top: 1.280 m²

Tween deck: 1.430 m²

Weather deck: 1.280 / 1.500 m²

Max permitted loads

Weather deck hatch covers: 1,75 t/m²

Tween deck hatch covers: 4,00 t/m²

Tank top: 20,00 t/m²

Tank capacities

Fuel oil: 1.338 m³

Diesel oil: 173 m³

Ballast water 4.044 m³

Cargo gear

3x Cranes starboard side each 60,0 t

Manager

Spliethoff's Bevrachtingskantoor B.V.

Amsterdam

The Netherlands

Registered owner

Rederij Erasmusgracht

Amsterdam

The Netherlands

Previous owners

10/1994 - 07/2012 C.V. Scheepvaartonderneming Erasmusgracht, Amsterdam - The Netherlands

Renamed

06/2021 Terskiy Bereg

Russia, Arkhangelsk - Call sign: UBEW9

Owner & manager: TK Nord Project LLC, Arkhangelsk - Russia

Latest data adjustment

09 April 2023
