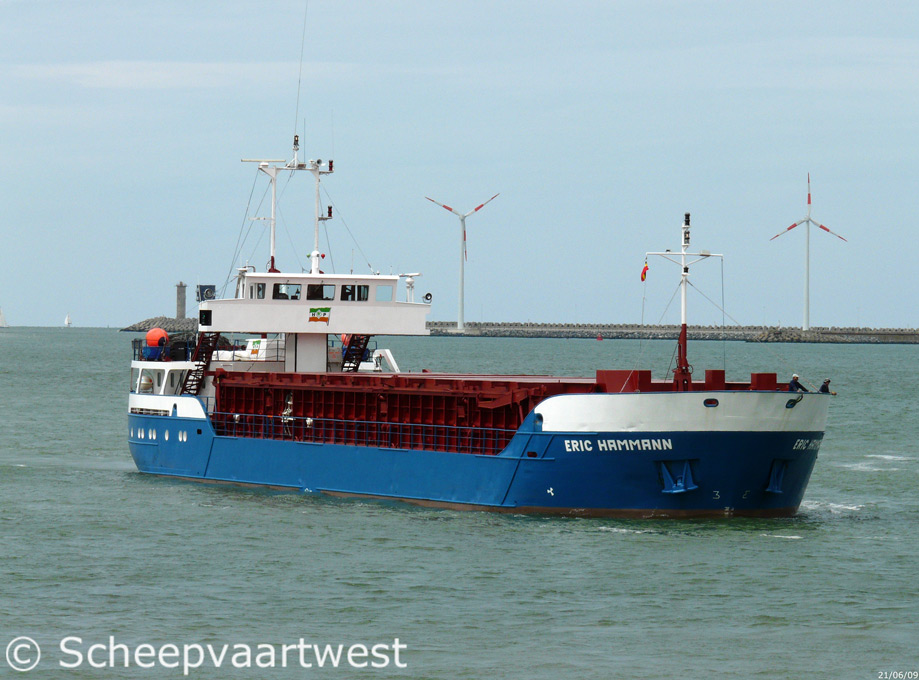

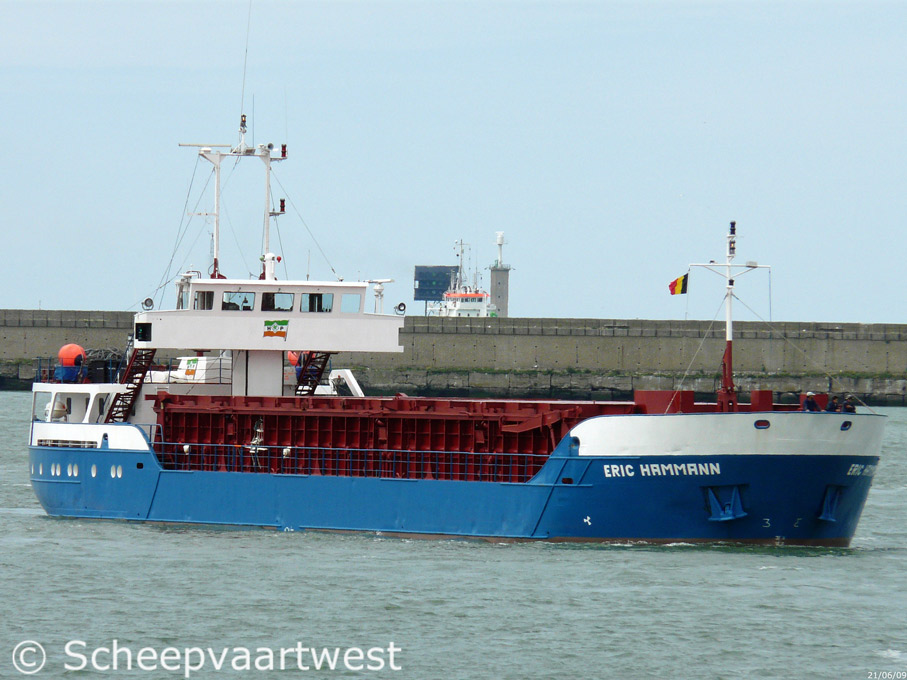

| Zeebrugge 21 June 2009 |
 |
 |
|

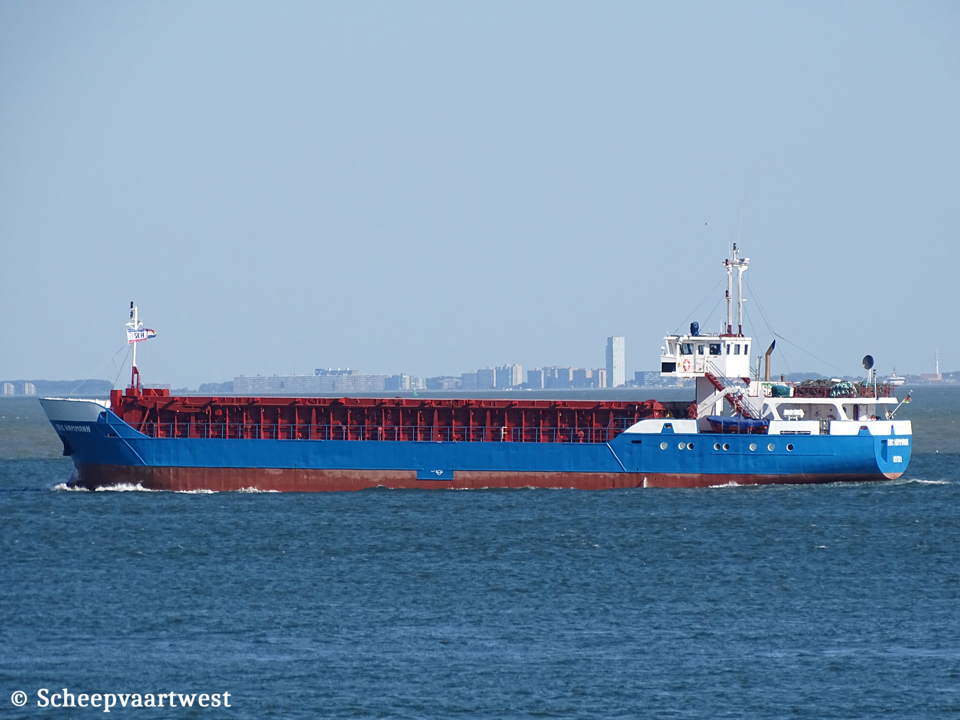

| Zeebrugge 21/06/09 | Westerschelde 28/05/20 |
|
Name |
ERIC HAMMANN |
|
Type |
General cargo |
|
IMO-number |
9011985 |
|
Call sign |
DQFF |
|
Flag |
Germany |
|
Port of registry |
Rostock |
|
GT |
1.156 t |
|
DWT |
Summer: 1.323 t |
|
DWCC |
Summer & winter: 1.200 t |
|
NT |
346 t |
|
Number of 20ft containers |
On deck: 20 In hold: 30 Total: 50 |
|
Length |
58,00 m overall 55,20 m between perpendiculars 55,78 m registered |
|
Breadth |
11,65 m registered 11,60 m moulded |
|
Draught |
Summer: 3,552 m |
|
Air draft |
10,00 m 3,00 m in ballast |
|
Forecastle |
4,20 m |
|
Poop |
13,80 m |
|
Freeboard |
180 mm |
|
Depth |
5,50 m |
|
Speed |
10,0 knots |
|
Built |
1991 |
|
Keel laid |
06/06/1990 |
|
Lunch date |
31/05/1991 |
|
Date of completion |
06/1991 |
|
Builder |
Kötter-Werft GmbH Industriestr. 2 49733 Haren/Ems Federal Republic of Germany |
|
Yard number |
87 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom, (E.G. Interrupted in way of machinery space) |
|
Watertight bulkheads |
3 |
|
Movable bulkheads |
2x Movable bulkheads (7 positions) |
|
Continuous decks |
2 |
|
Main engine |
1x MAN 6L23/30 – 4 stroke single acting 6 cylinder 230 x 300 mm combustion engine 720 kW / 980 bhp Manufacturer: MAN B&W Diesel A/S Frederikshavn Niels Juels Vej 15 9900 Frederikshavn Kingdom of Denmark |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x 380/220 V - 84 kVA 1x 380 V - 168 kVA 1x 380 V - 33 kVA |
|
Shaft generator |
1x 135 kW / 168 kVA |
|
Generator |
1x Main diesel generatorset 84 kVA |
|
Harbour generator |
1x Diesel generatorset 33 kVA |
|
Bow thruster |
1x Transverse thruster 'JASTRAM' - 74 kW, forward |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Number of holds |
1 34,00 x 9,30 x 6,70 m |
|
Cargo hold capacity |
Grain: 2.210 m³ |
|
Hatches type |
Folding covers |
|
Max permitted loads |
Tanktop: 10,0 t/m² Hatch covers; 1,0 t/m² |
|
Tank capacities |
Ballast: 740 m³ |
|
Anchor equipment |
3x Anchors weight each 1.020 kg Chain length: 357,50 m |
|
Crew size |
8 |
|
Crew |
5 |
|
Commerical manager |
Karl Meyer Reederei GmbH & Co. KG Stader Str. 55-63 21737 Wischhafen Germany |
|
ISM manager |
Hammann & Prahm Reederei GmbH Stader Str. 55-63 21737 Wischhafen Federal Republic of Germany |
|
Registered owner |
Hammann & Prahm Reederei GmbH & Co. KG MS "ERIC HAMMANN" Stader Str. 55-63 21737 Wischhafen Federal Republic of Germany |
|
Remarks |
Wheelhouse hydraulic lowering Grain bulkhead removable |
|
Latest data adjustment |
02 February 2022 |
