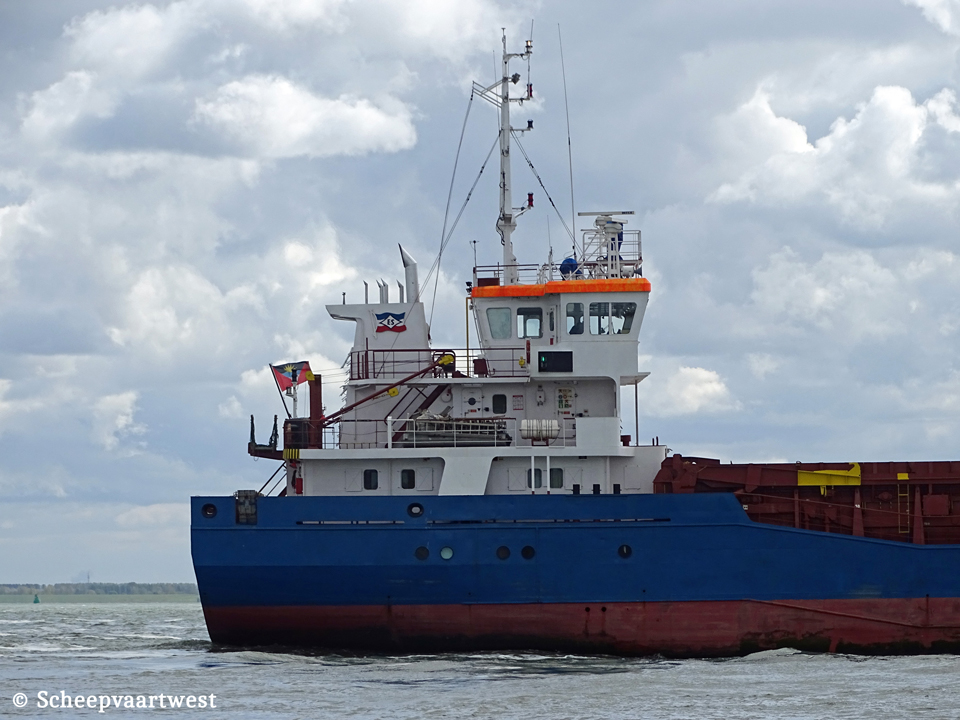

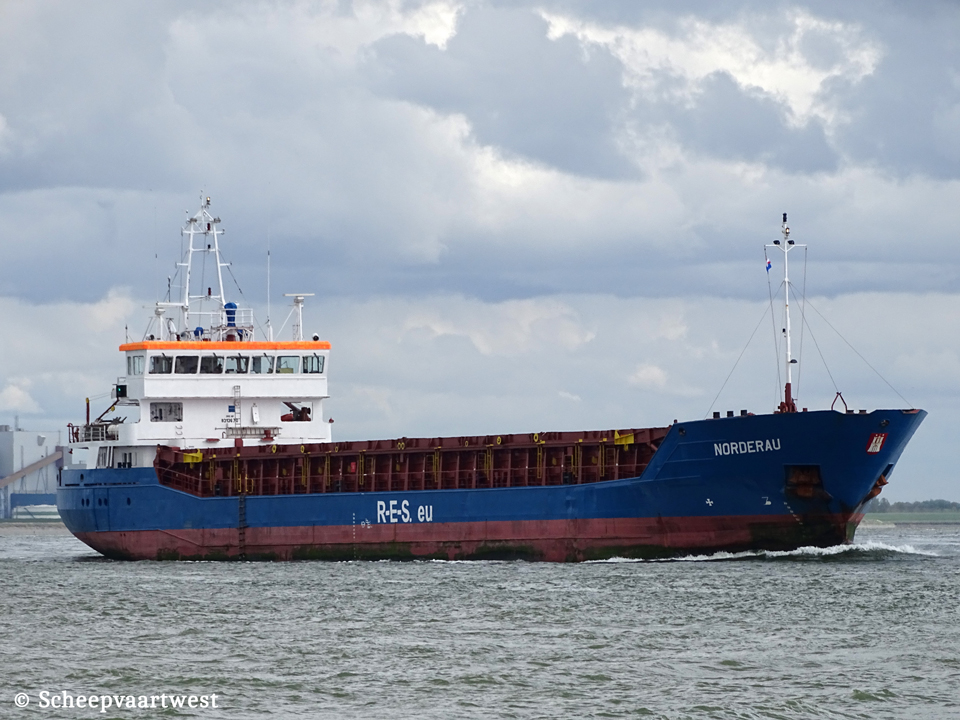

| Westerschelde 28 April 2017 |
 |
|
| Westerschelde 28/04/17 | |
|
Name |
NORDERAU |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9313670 |
|
Call sign |
V2BB3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.461 t |
|
DWT |
3.711,6 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
176 |
|
Length |
87,82 m overall 81,00 m between perpendiculars |
|
Breadth |
12,90 m extreme 12,80 m moulded |
|
Draught |
Summer: 5,59 m |
|
Depth |
7,10 m |
|
Speed |
Max: 12,3 knots |
|
Built |
2005 |
|
Keel laid |
25/06/1998 |
|
Launch date |
24/02/2005 |
|
Date of completion |
23/06/2005 |
|
Builder |
Slovenske Lodenice Komarno A.S. Prevadzkaren Slovakia |
|
Yard number |
2956 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkheads, various positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder combustion engine 1.520 kW / 2.039 bhp Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN D2866E main diesel generatorsets each 130 kW |
|
Emergency generator |
1x Cummins 4B-T3.9-DM diesel generatorset 49 kW |
|
Bow thruster |
1x Jamstram BU40F - 185 kW |
|
Number of holds |
1x Box 55,75 x 10,20 x 8,15 m |
|
Cargo hold capacity |
Bale & grain: 4.613 m³ / 162.875 ft³ |
|
Number of hatches |
1 55,75 x 10,20 m |
|
Hatch type |
Kavaerner type |
|
Number of pumps |
2x Ballast pump each 200 m³/h |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatches: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.652,7 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Manager |
Strahlmann E Reederei e.K. Schleusenstrasse 10 25541 Brunsbuettel Germany |
|
Registered owner |
Schifffahrtskontor Erwin Strahlmann e.K. |
|
Renamed |
2020 Isartal Portugal, Madeira - Call sign: CQEP3 Owner: Schiffahrts UG (haftungsbeschränkt) & Co. KG MS ISARTAL Manager: HS Bereederungs GmbH & Co. KG, Haren - Germany |
|
Latest data adjustment |
12 April 2023 |
