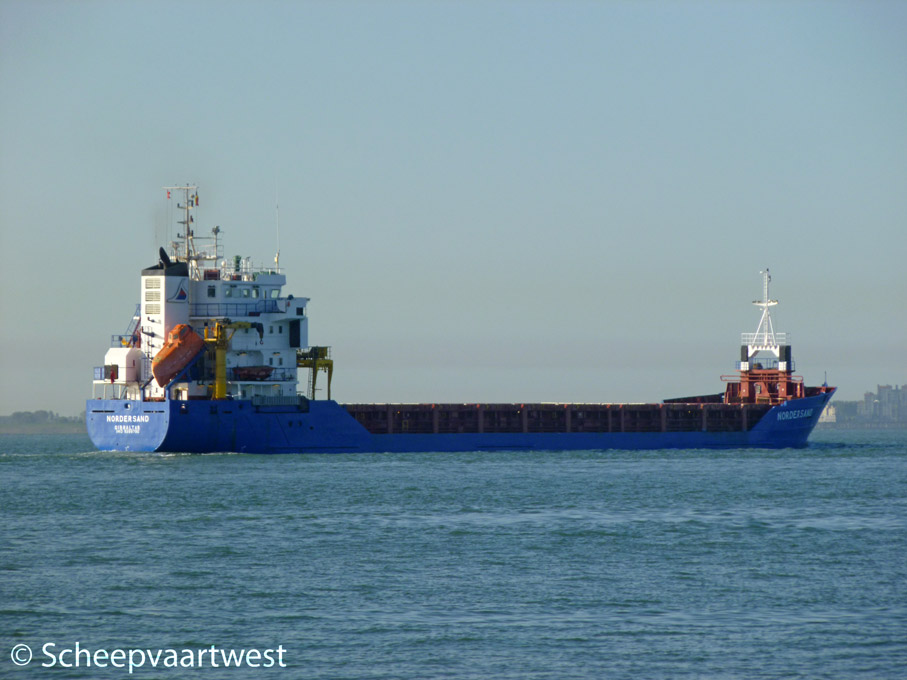

| Westerschelde 25 February 2018 |
 |

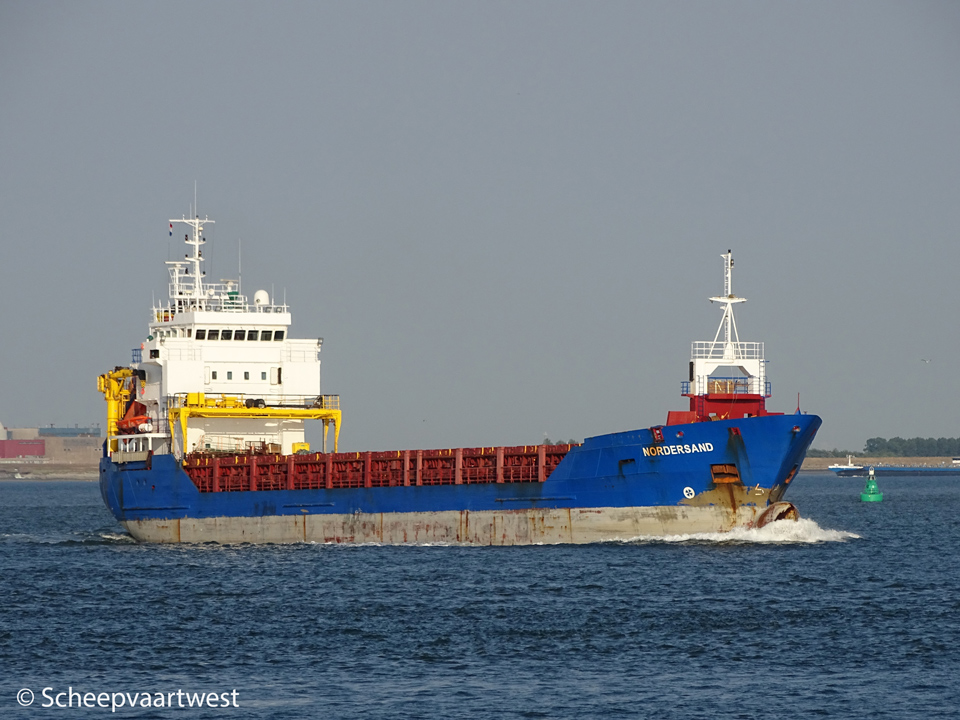

| Westerschelde 10/10/12 |
|
Name |
NORDERSAND |
|
Type |
Multi-Purpose dry cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9289790 |
|
Call sign |
ZDGO5 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
3.173 t |
|
DWT |
4.512 t |
|
NT |
1.725 t |
|
Number of 20ft containers |
In hold: 120 On deck: 142 Total: 262 |
|
Container capacity 14t |
152 |
|
Reefer plug |
20 on deck |
|
Length |
98,83 m overall 92,50 m between perpendiculars 92,75 m registered |
|
Breadth |
13,80 m registered |
|
Draught |
5,74 m |
|
Air draft |
22,76 m |
|
Height above keel |
30,20 m |
|
Forecastle |
6,79 m |
|
Poop |
12,57 m |
|
Depth |
7,40 m moulded |
|
Speed |
13,9 knots |
|
Built |
2004 |
|
Keel laid |
29.06.1998 |
|
Launch date |
11.09.2004 |
|
Date of completion |
11.11.2004 |
|
Builder |
Rousse Industry A.D. |
|
Yard number |
435 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Movable bulkhead |
2x movable |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6 M 32 C - 4 stroke 6 cylinder 320 x 480 mm diesel engine - 2.880 kW at 600 rpm Year of manufacture: 2004 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 231 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Heating surface: 11,0 m² Year of manufacture: 2003 Manufacturer: Carbofuel Officine Meccaniche S.p.A. |
|
Electric installations |
2x Plants each 380/220 V - 268 kVA 1x Plant 380 V - 410 kVA 1x Plant 380 V - 106 kVA |
|
Shaft generator |
1x AEM 410 kVA / 328 kW |
|
Generators |
2x Main diesel generatorsets each 160 kW |
|
Emergency generator |
1x Caterpillar diesel generatorset 106 kVA / 84,8 kW |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse JASTRAM thruster - 325 kW, forward |
|
Number of holds |
1 70,35 x 11,20 x 8,45 m |
|
Number of hatches |
1 70,35 x 11,20 m, one movable beam |
|
Hatch cover type |
11 panels lift away covers of pontoon type |
|
Cargo capacity |
6.374 m³ / 225.100 ft³ |
|
Strength |
On tanktop: 15,0 t/m² On tweendeck: 2,50 t/m² On deck: 1,68 t/m² |
|
Tank capacities |
Fuel oil: 275 m³ Gas oil: 65 m³ Water ballast: 1.865 m³ Fresh water: 42 m³ |
|
Ventilation |
6 Air changes per hour |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m |
|
Cargo gear |
Gearless |
|
Accommodation |
10 persons, 10 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "NORDERSAND" |
|
Last update |
01.04.2013 |
