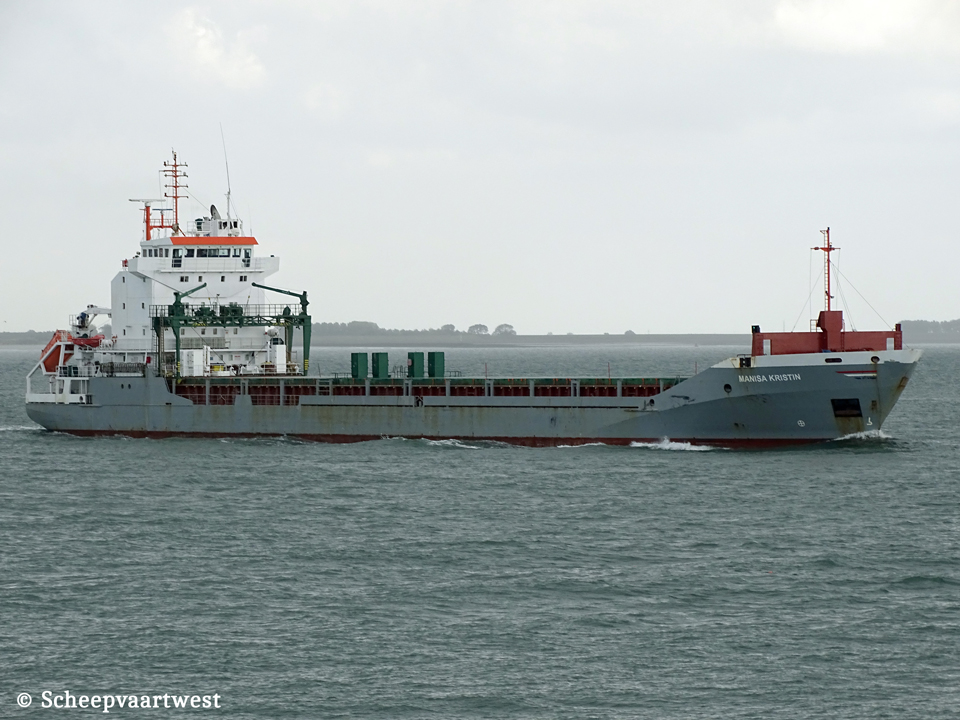

| Westerschelde 23 September 2019 |
|
Name |
MANISA KRISTIN |
|
Previous names |
04/2000 - 01/2017 Zeus 01/2017 - 02/2018 Longnes |
|
Type |
Multi-purpose cargo ship - Container ship - Heavycargo - Single deck |
|
IMO-number |
9190212 |
|
Call sign |
PCIK |
|
Flag |
The Netherlands |
|
Port of registry |
Schoonhoven |
|
Previous flags |
The Netherlands, Delfzijl - Call sign: PCIK |
|
GT |
6.142 t |
|
DWT |
Summer: 9.103 t Winter: 8.700 t |
|
DWCC |
Summer: 8.850 t Winter: 8.500 t |
|
NT |
3.491 t |
|
Number of 20ft containers |
494 |
|
Length |
130,17 m overall 121,16 m between perpendiculars |
|
Breadth |
15,87 m |
|
Draught |
Summer: 7,46 m Winter: 7,33 m |
|
Air draft |
Max.: 35,00 m 29,70 m in ballast |
|
Freeboard |
2.748 mm |
|
Depth |
10,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
2000 |
|
Keel laid |
1998 |
|
Launch date |
05/02/2000 |
|
Date of completion |
06/04/2000 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
323 |
|
Hull material |
Steel |
|
Watertight bulkheads |
6 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Stork/Wärtsilä Type 6SW38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 3.960 kW / 5.380 hp at 600 rpm Built: 04/2000 Builder: Wärtsilä Nederland B.V., Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148 rpm |
|
Boilers |
1x CHO Wiesloch - 17,50 m² / 13,0 bar 1x CHR Wiesloch - 53,00 m² / 13,0 bar Built: 1999 |
|
Shaft generator |
1x 700 kVA - 560 kW |
|
Generators |
2x Main diesel generatorsets 225 kVA - 180 kW - 245 hp |
|
Emergency generator |
1x Diesel generatorset 85 kVA - 68 kW - 103 hp |
|
Bow thruster |
1x 500 kW |
|
Number of cargo holds |
2 Hold 1: 61,55 x 13,20 x 11,05 m (narrow fore 5,2 m) Hold 2: 25,20 x 13,20 x 11,05 m (narrow aft 10,2 m) |
|
Total capacity of holds |
Grain/bale: 423.250 ft³ / 11.978 m³ |
|
Cargo hatchways |
2 Hatch 1: 25,20 x 13,20 m Hatch 2: 61,55 x 13,20 m |
|
Hatch type |
Pontoon |
|
Number of tweendecks |
1x Moveable partial tweendeck |
|
Max. permitted loads |
Tank top: 15,0 t/m² Hatch Cover: 1,75 t/m² Tween deck: 3,50 t/m² |
|
Tank capacities |
Fuel oil: 460 m³ Fresh water: 60 m³ Ballast water: 2.960 m³ |
|
Manager |
Vaage Ship Management AS Bergen Norway |
|
Previous managers |
04/2000 - 08/2007 Wagenborg Shipping B.V., Delfzijl - The Netherlands 08/2007 - 12/2013 - Flinter Shipping B.V., Rotterdam - The Netherlands 12/2013 - 09/2015 Flinter Management B.V., Barendrecht - The Netherlands |
|
Registered owner |
BBS Bulk VI KS Bergen Norway |
|
Previous owners |
04/2000 - 04/2008 Gebr. Hilco en Jan Cornelis Waker, Delfzijl - The Netherlands 04/2008 - 12/2013 BBS Bulk VI KS - Norway 12/2013 - 09/2015 Flinter Bareboat B.V., Groningen - The Netherlands |
|
Renamed |
07/2023 Kristen Palau, Ngerulmud - Call sign: T8A4424 Owner: TTS Denizcilik A.S., Istanbul, Turkey Manager: Aga Teknik Denizilik Sanayi ve Ticaret Anonim, Istanbul - Turkey 09/2023 RCC Stargazer Russia, St. Petersburg Call sign: UBJZ8 Owner & manager: Russian Container Company JSC, St. Petersburg - Russia |
|
Latest data adjustment |
30 July 2024 |
