Westerschelde 02 August 2018 |
|
Name |

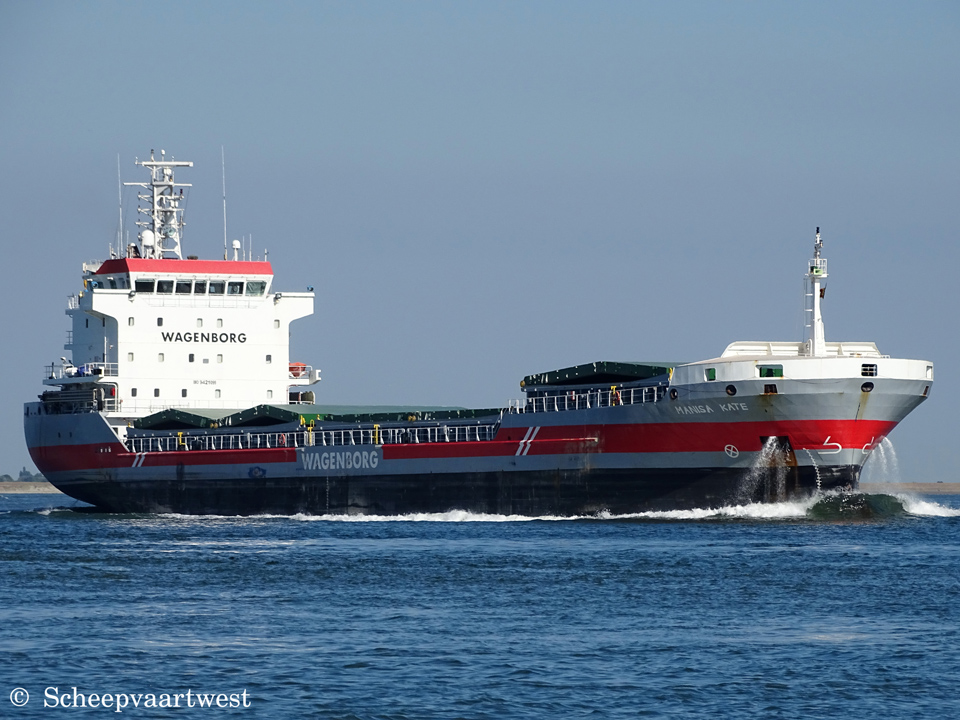

MANISA KATE |
|
Previous names |
12/2008 - 02/2017 Loenerdiep 02/2017 - 04/2018 Loenerborg |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo Single decker |
|
IMO-number |
9421099 |
|
Call sign |
PCHH |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
12/2008 - 07/2011 The Netherlands, Groningen - Call sign: PBON 07/2011 - 02/2017 Liberia, Monrovia - Call sign: A8ZO8 |
|
GT |
5.598 t |
|
DWT |
Summer: 7.600 t |
|
DWCC |
Summer: 7.700 t |
|
NT |
2.883 t |
|
Light ship |
2.868 t |
|
Length |
108,24 m overall 103,90 m between perpendiculars |
|
Breadth |
18,47 m moulded |
|
Draught |
Max: 7,01 m |
|
Keel to mast end |
54,00 m |
|
Air draft |
28,50 m in ballast |
|
Freeboard |
2.005 mm |
|
Depth |
9,00 m moulded |
|
Speed |
11,5 knot |
|
Built |
2008 |
|
Keel laid |
18/10/2007 |
|
Launch date |
16/07/2008 |
|
Delivery date |
12/11/2008 |
|
Builder |
Nanjing Huatai Shipyard Co., Ltd. Nanjing China |
|
Yard number |
5406 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 3.000 kW / 4.076 hp at 1.800 rpm Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 208 rpm |
|
Boilers |
1x CHF 78,70 m² - 6,0 bar |
|
Shaft generator |
1x 450 kVA - 360 kW |
|
Generators |
2x Main diesel generatorsets each 331 kVA - 265 kW - 380 hp |
|
Emergency generator |
1x Diesel generatorset 331 kVA - 265 kW - 425 hp |
|
Bow thruster |
280 kW |
|
Number of holds |
3x Fully open hatch, box shaped and double skinned Hold 1: 17,50 x 15,20 x 11,40 m Hold 2: 25,90 x 15,20 x 9,20 m Hold 3: 25,20 x 15,20 x 9,20 m |
|
Total capacity of holds |
Bale/Grain: 10.291,5 m³- 360.202 ft³ |
|
Number of hatches |
3 Hatch 1: 17,50 x 15,20 m Hatch 2: 25,90 x 15,20 m Hatch 3: 25,20 x 15,20 m |
|
Max Permitted loads |
Tanktop: 15,0 t/m² Weatherdeck: 2,2 t/m² |
|
Tank capacities |
HFO 293 m³ MGO: 69 m³ Water ballast: 2.200 m³ Fresh water: 100 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Wagenborg Shipping B.V. Delfzijl The Netherlands |
|
Previous managers |
12/2008 - 02/2017 Feederlines B.V., Groningen - The Netherlands |
|
Owner |
Loenerborg B.V. Delfzijl The Netherlands |
|
Previous owners |
12/2008 - 02/2017 Beheermaatschappij Loenerdiep B.V., Groningen - The Netherlands |
|
Renamed |
27/05/2018 Loenerborg Delfzijl, The Netherlands - Call sign PCHH Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Loenerborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
19 July 2024 |
