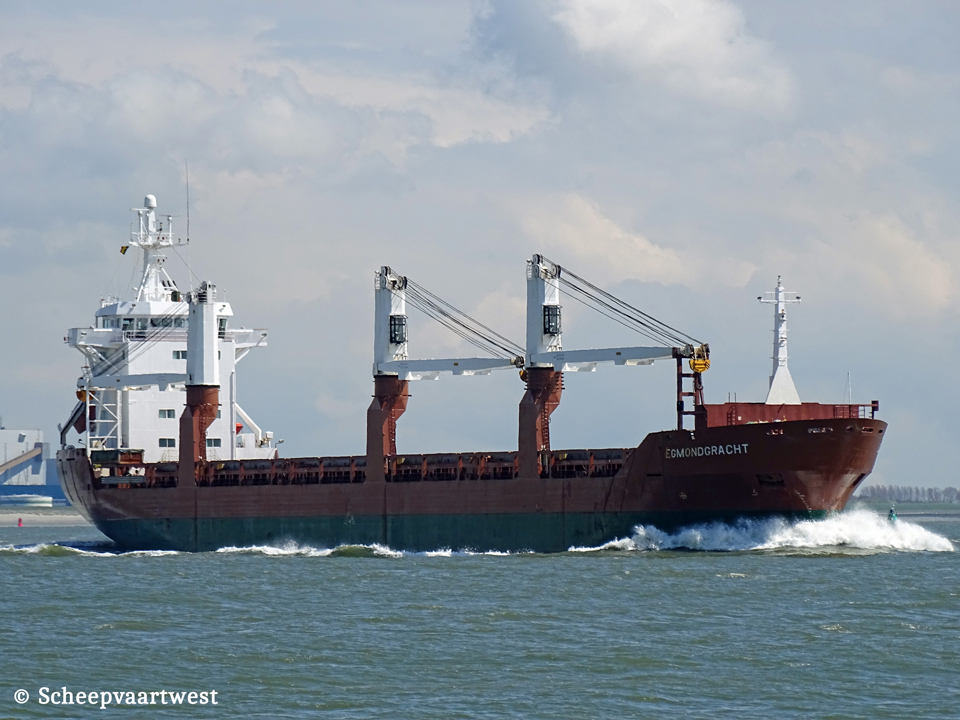

Egmondgracht IMO 9081320 01
Westerschelde 28 April 2016


Name

EGMONDGRACHT

Type

Multi-purpose dry cargo ship

IMO-number

9081320

Call sign

PDWG

Flag

The Netherlands

Port of registry

Amsterdam

GT

8.448 t

DWT

12.760 t

NT

4.651 t

Number of 20ft containers

In hold: 296

On deck: 434

Total: 730

Number of 40ft containers

In hold: 136 + 24 TEU

On deck: 186 + 62 TEU

Total: 322 + 86 TEU

Reefer capacity

322

Length

136,34 m overall

127,14 m between perpendiculars

Breadth

18,90 m moulded

19,02 m extreme

Draught

Summer: 8,52 m

Depth

11,65 m moulded

Speed

Max: 16,0 knots

Service: 14,5 knots

Built

1994

Keel laid

29/09/1993

Launch date

16/07/1994

Delivery date

14/10/1994

Builder

Merwede Shipyard B.V.

Hardinxveld-Giessendam

The Netherlands

Yard number

665

Hull material

Steel

Hull type

Single hull

Movable bulkheads

Removable pontoons for up to 11 compartments

Number of decks

1

Main engine

1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 hp

Manufacturer: Wärtsilä Finland Oy, Vaasa/Vasa - Finland

Propellers

1x Pitch propeller

Bow thruster

1x 500 kW / 700 bhp

Number of holds

2

Cargo hold capacity

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

Hold ventilation

About 30 x per hour /empty holds

Timber

17.500 m³ length packages

Hatches

Weather deck:

N° 1: 26,60 x 15,80 m

N° 2: 31,74 x 15,80 m

N° 3: 16,60 x 15,80 m

Tween deck:

91,94 x 15,80 m

Consisting of 17 steel pontoons:

11x 6,35 x 15,80 m

2x 4,36 x 15,80 m

3x 3,19 x 15,80 m

1x 3,19 x 15,80 m

Floor spaces

Tank top: 1.280 m²

Tween deck: 1.430 m²

Weather deck: 1.280 / 1.500 m²

Max permitted loads

Weather deck hatch covers: 1,75 t/m²

Tween deck hatch covers: 4,00 t/m²

Tank top: 20,00 t/m²

Tank capacities

Fuel oil: 1.338 m³

Diesel oil: 173 m³

Ballast water: 4.044 m³

Cargo gear

3x Deck cranes starboard side - SWL 60,0 t each at 16,00 m

3x Deck cranes starboard side - SWL 40,0 t each at 24,00 m

Manager

Spliethoff's Bevrachtingskantoor B.V.,

Amsterdam

The Netherlands

Owner

Rederij Egmondgracht

Amsterdam, Noord-Holland

The Netherlands

Previous names & owners

10/1994 - 07/2012 Egmondgracht - C.V. Scheepvaartonderneming Egmondgracht, Amsterdam - The Netherlands

Sister ships

Erasmusgracht

Elandsgracht

Renamed

05/2019 Aujaq

Canada, Montreal - Call sign: VAAF

11/2019 Aujaq

The Netherlands, Amsterdam - Call sign: PDWG

Manager: Nunavut Eastern Artic Shipping, Montreal (P.Q.) - Canada

Owner: Transport Aujaq Inc., Montreal (P.Q.) - Canada

Latest data adjustment

21 April 2023
