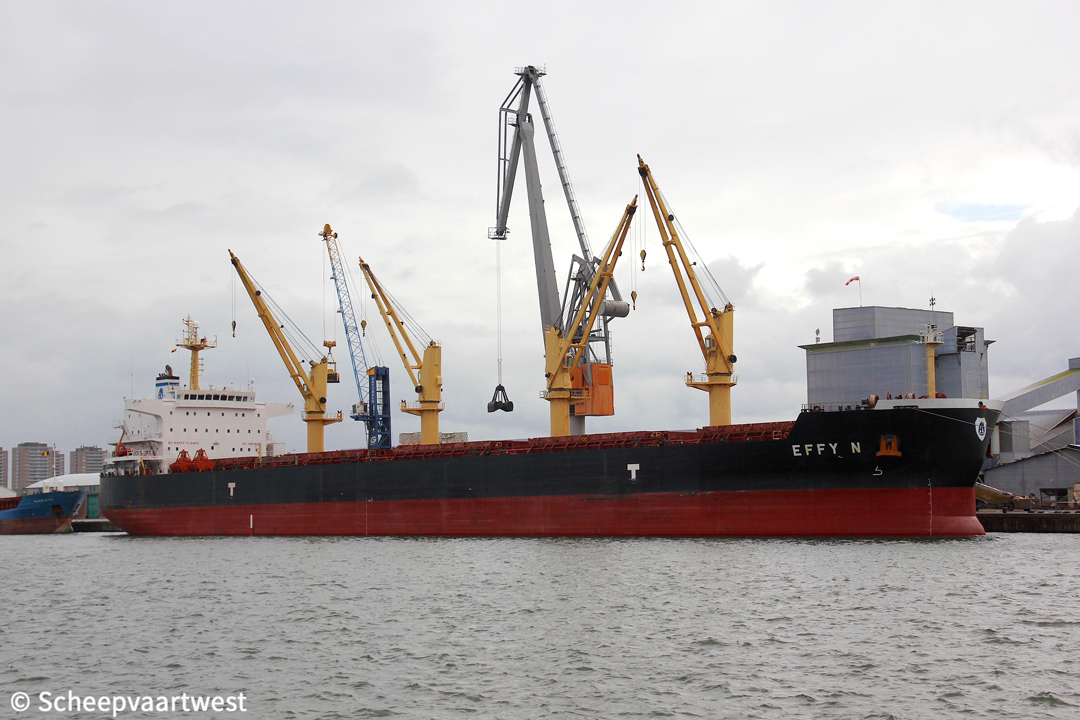

Effy N 01

Antwerpen 28 September 2019



Name

EFFY N

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9509516

Call sign

VRFI9

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

31.532 t registered

Suez: 32.491,42 t

DWT

Summer: 55.804 t

Winter: 54.798 t

NT

18.765 t registered

Suez: 29.975,35 t

Panama: 26.155 t

Length

190,00 m overall

Breadth

32,26 m moulded m

Draught

Summer: 12,74 m

Moulded L x B x D

185,00 x 32,26 x 18,10 m

Registered L x B x D

186,48 x 32,26 x 18,10 m

Freeboard

Summer: 5.427 mm

Depth

18,10 m moulded

Speed

14,5 knots ballast

14,0 knots laden

Max: 15,4 knots

Built

2009

Keel laid

22/10/2008

Launch date

14/05/2009

Date of completion

23/07/2009

Builder

IHI Marine United Inc., Yokohama Shipyard
Yokohama

Japan

Yard number

3284

Hull material

Steel

Main engine

1x Wärtsila RT-Flex-50 - 2 stroke single acting 6 cylinder 500 x 2.050 mm combustion engine 8.890 kW at 116,0 rpm

Manufacturer: Diesel United, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,49 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 1.786 kVA

Number of holds

5

Hold No.1: Length 27,30 m, Width fwd bulkhead 11,00 m, mid 21, 90 m , aft 23,80 m

Hold No.2: Length 29,20 m, Width 23,80 m

Hold No.3: Length 27,30 m, Width 23,80 m

Hold No.4: Length 27,30 m, Width 23,80 m

Hold No.5: Length 27,30 m, Width fwd bulkhead 23,80 m, mid 20, 10 m, aft 10,50 m

Cargo hold capacity

Grain / Bale

Hold 1: 12.060,43 / 11.042,22 m³

Hold 2: 15.706,72 / 14.650,88 m³

Hold 3: 14.777,22 / 13.775,41 m³

Hold 4: 14.770,43 / 13.812,35 m³

Hold 5: 14.747,66 / 13.781,41 m³

Total: 67.062,46 / 72.062,27 m³

Number of hatches

5

Hatch 1 opening: 14,56 x 18,60 m

Hatches 2 to 5 opening: 20,93 x 18,60 m

Hatch type

4 panels per hatch, end folding, double skin - hydraulic cylinder operated

Max permitted loads

Tank top local strength: Holds 1-2-3-4-5 = 26,5 t/m²

Main deck: 3,50 t/m² (excluding cross- decks)

Hatch cover:

Hatch 1: 2,8 t/m²

Hatches 2-3-4-5: 2,1 t/m²

Tank capacities

Fuel oil: 1.840 t

Gas oil: 300 t

Fresh water 300 t

Cargo gear

4x Units electro/hydraulic deck cranes - SWL 30,0 t each

Working radius at SWL 30,0 t 26,00 m

Maximum clear outreach 9,87 m

Grabs: 4x 12,5 m³ Peiner electro hydraulic

Crew size

22

Manager

A.M. Nomikos Transworld Maritime Agencies S.A.

Alamanas 1

Marousi 151 25

Greece

Previous owners

Aquarius Bulk Carriers Inc.

c/o AM Nomikos Transworld Mari, Euroco Building, 1

Alamanas Street

Marousi, 151 25

Athens

Greece

Latest data adjustment

13 March 2020
