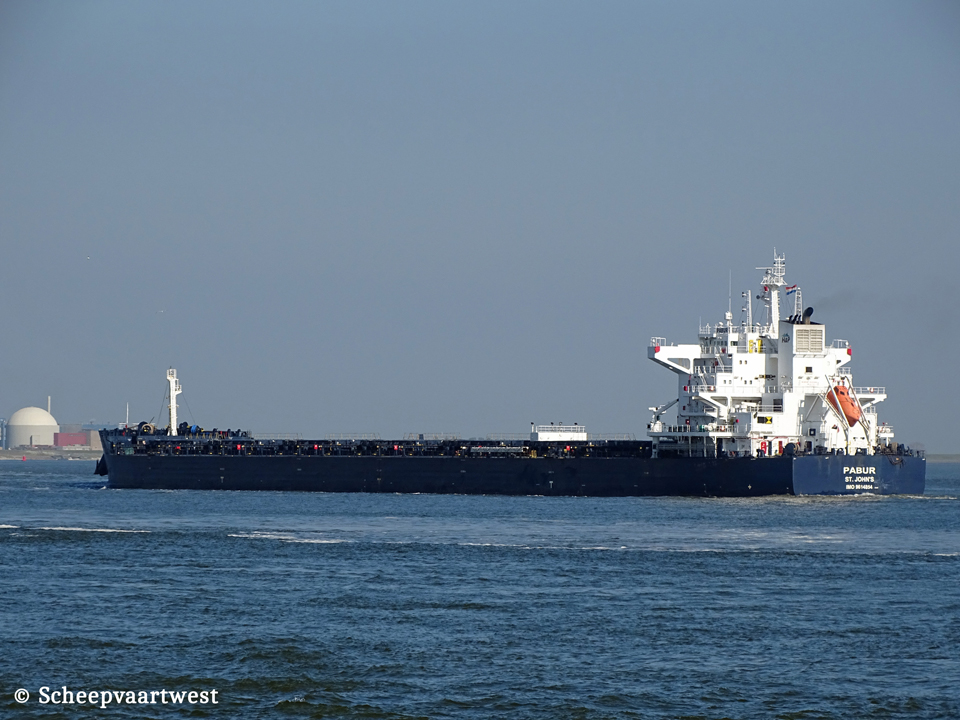

| Westerschelde 26 April 2020 |
|
Name |
PABUR |
|
Type |
Bulk carrier - Panamax |
|
IMO-number |
9614854 |
|
Call sign |
V2GD7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
41.213 t |
|
DWT |
75.426,2 t |
|
NT |
25.762 t |
|
Length |
224,96 m overall 221,50 m between perpendiculars |
|
Breadth |
32,30 m extreme |
|
Draught |
Summer: 14,11 m |
|
Depth |
19,50 m |
|
Speed |
14,2 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2011 |
|
Launch date |
24/08/2012 |
|
Date of completion |
03/12/2012 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. Taizhou China |
|
Yard number |
TK0702 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 5S60MC-C8.1 - 2stroke 5 cylinder 600 x 2.400 mm combustion engine 9.660 kW at 103, rpm Manufacturer: STX Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 103,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 254,0 m² Manufacturer: Alfa Laval Qingdao Ltd. |
|
Shaft generator |
1x 688 kVA |
|
Generators |
2x MAN 5L23/30H main diesel generatorsets each 750 kVA |
|
Emergency generator |
1x John Deere 6068HF275 diesel generatorset 124 kVA |
|
Batteries |
4x Batteries for automation each 200 Ah 4x Batteries for UPS navigation each 200 Ah 2x Batteries for start emergency engine each 200 Ah 2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar 1x Receiver 500 litres - 7,0 bar |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 90.993 m³ |
|
Tank capacities |
Ballast: 33.599,2 m³ |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain Length: 660,00 m Diameter: 78 mm |
|
Crew size |
27 |
|
Manager |
Harren Bulkers Management UG (haftungsbeschränkt) Hermann-Hollerith-Straße 10 28355 Bremen Germany |
|
Registered owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS “PABUR” Germany |
|
Latest data adjustment |
18 May 2023 |
