Name |

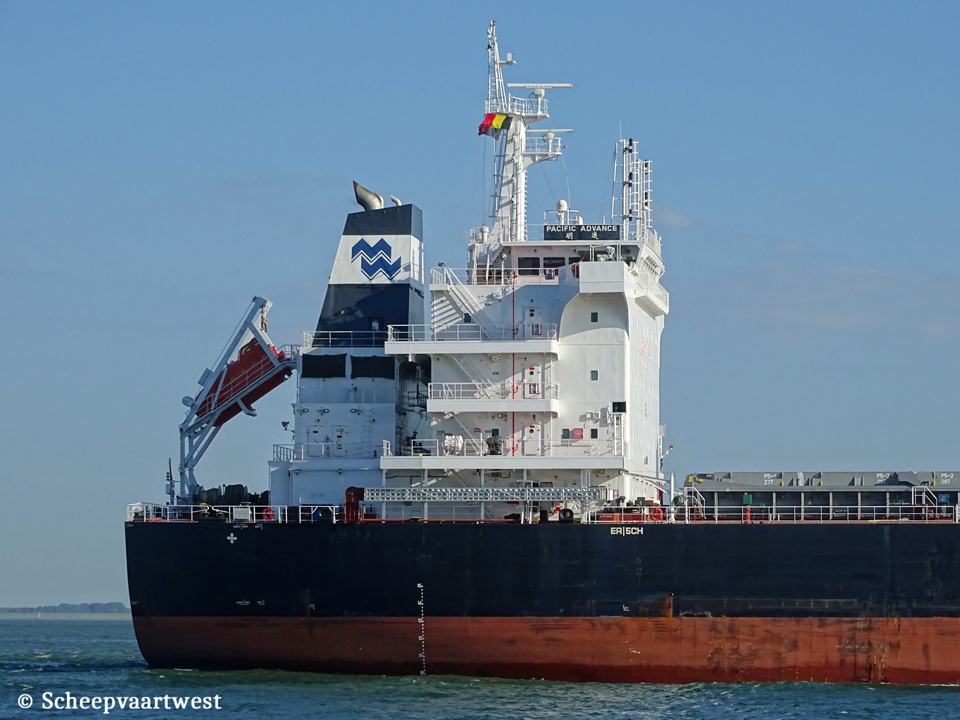

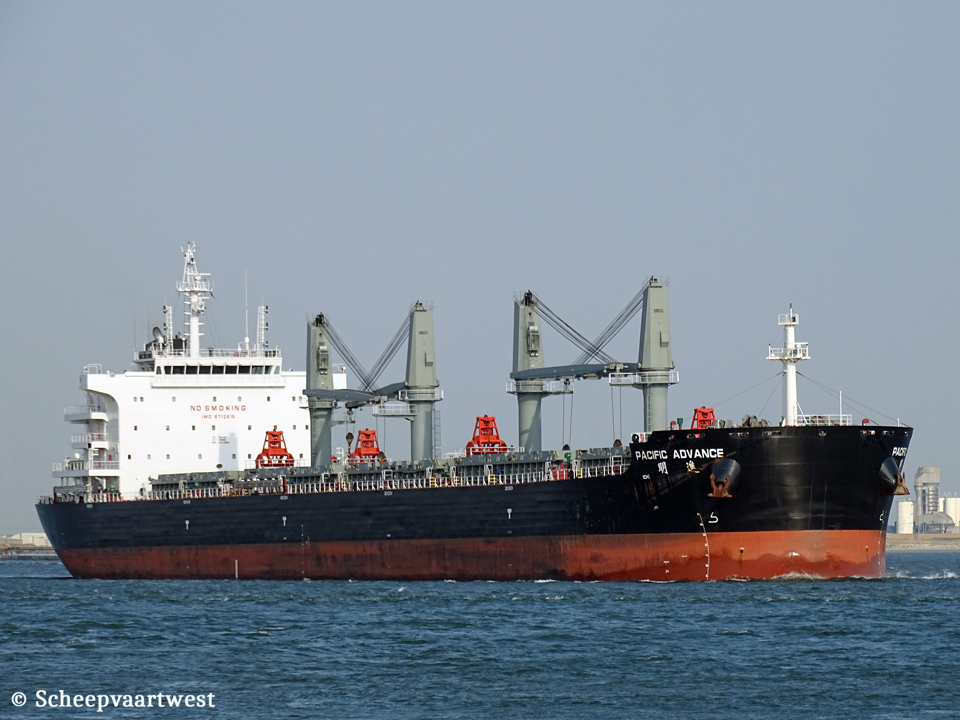

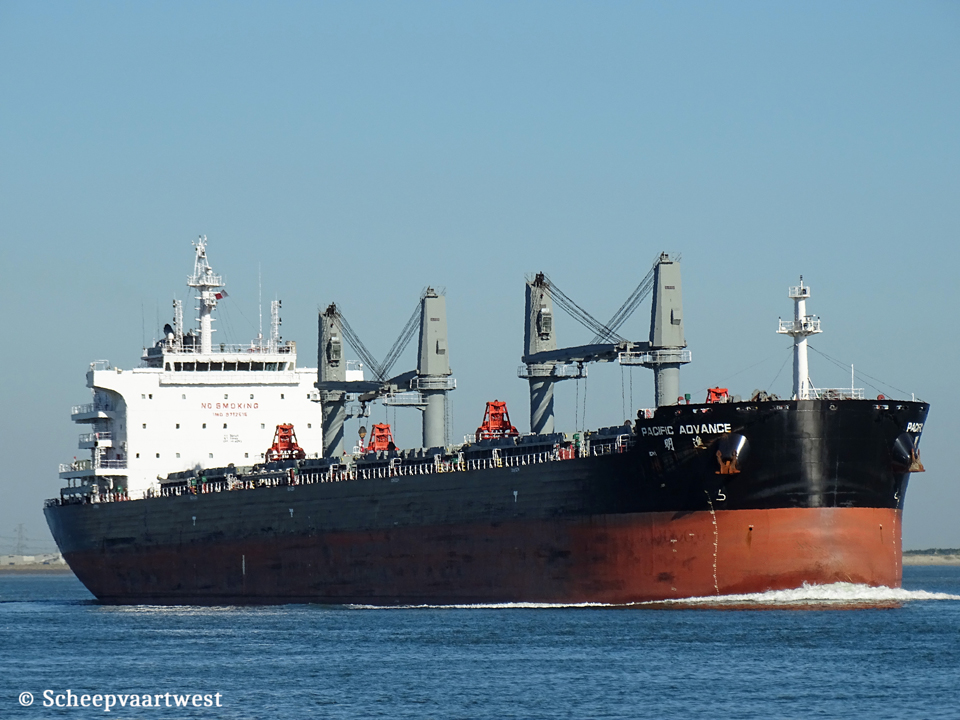

PACIFIC ADVANCE |
|
Chinese name |
明進 |
|
Type |
Bulk carrier |
|
IMO-number |
9712515 |
|
Call sign |
VROQ5 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
36.449 t |
|
DWT |
63.507 t |
|
NT |
21.646 t |
|
Length |
199,90 m overall 194,50 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 11,32 m |
|
Forecastle |
13,14 m |
|
Deckhouse |
21,24 m |
|
Freeboard |
5.228 mm |
|
Depth |
18,50 m moulded |
|
Speed |
Max: 14,4 knots |
|
Built |
2015 |
|
Keel laid |
2013 |
|
Delivery date |
27/11/2015 |
|
Builder |
Chengxi Shipyard Co.,Ltd. Jiangyin China |
|
Yard number |
CX0632 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
6 |
|
Continuous decks |
1 Upper deck |
|
Main engine |
1x HHM/MAN-B&M 5S60ME-C8.2 - 5 cylinder 600 x 2.400 mm combustion engine 8.050 kW / 10./944 hp at 89,0 rpm Builder: Hu Dong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 720 KW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: Hold 1: 13957,80 m³ Hold 2: 17658,30 m³ Hold 3: 15352,99 m³ Hold 4: 15839,60 m³ Hold 5: 15942,06 m³ Total: 78.750,75 m³ Bale total: 76.680 m³ |
|
Number of hatches |
5 4x 22,96 x 18,26 m 1x 19,68 x 18,26 m |
|
Tank capacities |
Ballast: 17.701 m³ |
|
Lifting equipment |
1x Provision crane - SWL 4,0 t 1x Enigne room overhead Crane - SWL 4,0 t |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Sinotrans Ship Management Ltd. |
|
Operator |
Hong Kong Ming Wah Shipping Co., Ltd. 32nd Floor, China Merchants Tower, Shun Tak Centre, 168-200, Connaught Road Central, Central Hong Kong - China |
|
Registered owner |
Pacific Advance Shipping Company Limited Hong Kong - China |
|
Latest data adjustment |
09 November 2023 |
