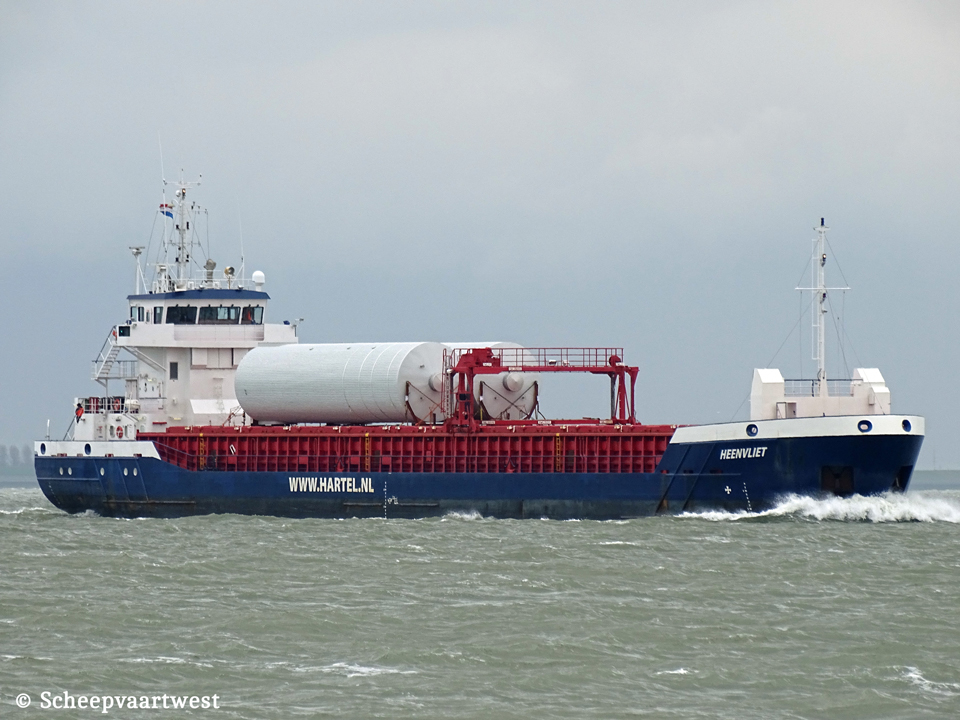

| Westerschelde 25 April 2016 |
|
Name |
HEENVLIET |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargoes - Containers cargoes Damen Combi Coaster 3850 |
|
IMO-number |
9536076 |
|
Call sign |
LARN8 |
|
Flag |
Norway |
|
Port of registry |
Stavanger |
|
Previous flags |
2011- 08/2022 The Netherlands, Rotterdam - Call sign: PCNF |
|
GT |
2.834 t |
|
DWT |
3.789 t |
|
DWCC |
Summer: 3.300 t Winter: 2.250 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,67 m extreme 12,50 m moulded |
|
Draught |
Summer: 5,42 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
21,50 m |
|
Depth |
7,00 m moulded |
|
Speed |
Service: 11,5 knots Max: 13,5 knots |
|
Built |
2011 |
|
Keel laid |
23/12/2008 |
|
Launch date |
23/04/2010 |
|
Date of completion |
07/10/2011 |
|
Builder casco |
Brodogradiliste Sava D.D. Mitrovica Serbia |
|
Builder completion |
B.V. Damen Scheepswerf Bergum Bergum The Netherlands |
|
Yard number |
9407 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20C - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.065 hp at 1.000 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x AGCO Sisu Power 634 main diesel generatorset |
|
Emergency generator |
1x AGCO Sisu Power 420 diesel generatorset |
|
Bow thruster |
1x Veth 2-K-1200 S6 - 220 kW |
|
Number of holds |
1x Box shaped 62,50 x 10,12 x 8,43 m |
|
Cargo hold capacity |
Grain: 5.243,1 m³ |
|
Number of hatches |
1 62,50 x 10,12 m |
|
Max permitted loads |
Tanktop: 18,0 t/m² Hatches: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.374 m³ Fresh water: 55 m³ MDO: 32 m³ DMA: 172 m³ Lub oil: 8,6 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
ISM & commercial manager |
Falkeid Shipping AS Fåholmen 8 4160 Finnøy Norway |
|
Previous managers |
2011- 08/2022 Hartel Shipping & Chartering B.V., Oostvoorne - The Netherlands |
|
Registered owner |
Falkeid Shipping AS Fåholmen 8 4160 Finnøy Norway |
|
Previous owners |
2011- 08/2022 Beheermaatschappij Heenvliet B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
03 June 2023 |
