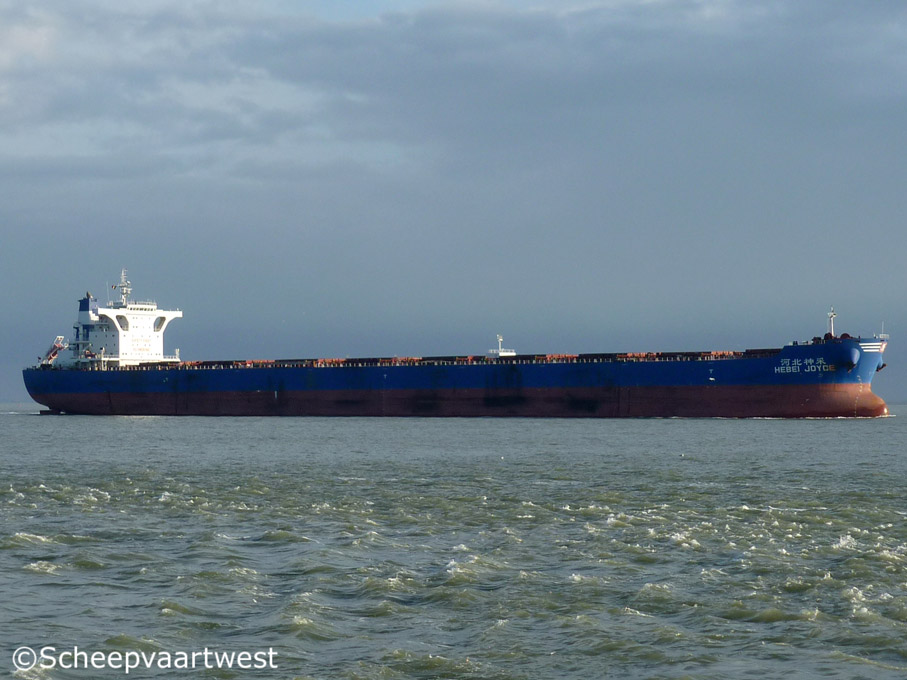

Hebei Joyce - IMO 9439606

Name

HEBEI JOYCE

Type

Bulk carrier - Strengthened for heavy cargoes

IMO-number

9439606

Call sign

VRHD2

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

94.710 t

DWT

180.099,6 t

NT

59.527 t

Length

295,00 m overall

285,00 m between perpendiculars

Breadth

46,00 m moulded

Draught

18,10 m

Forecastle

21,00 m

Deckhouse

22,80 m

Freeboard

6.732 mm

Depth

24,80 m moulded

Speed

15,0 knots

Built

2011

Date of completion

18.01.2011

Builder

Qingdao Beihai Shipbuilding Heavy Industry Co., Ltd.

No.369 Lijiang East Rd
266520 Qingdao
China

Hull material

Steel

Watertight bulkheads

10

Continuous decks

1

Main engine

1x 6S70MC-C - 6 cylinder diesel engine - 18.660 kW at 91,0 rpm

Built: 21.05.2010

Builder: Dalian Marine Diesel Co., Ltd. - China

Propellers

1

Boilers

3x Oil heating boilers - 9,0 bar

Built: 01.08.2010

Builder: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 900 kVA / 450 Volt

Number of holds

9

Hold capacity

Hold 1: 19.128,7 m³

Hold 2: 23.168,0 m³
Hold 3: 23.211,8 m³
Hold 4: 23.228,1 m³
Hold 5: 23.211,7 m³
Hold 6: 23.211,7 m³
Hold 7: 23.197,7 m³
Hold 8: 20.499,5 m³
Hold 9: 23.096,9 m³

Total: 201.954,1 m³

Number of hatches

9

Dimension:

2x Hatches: 15,47 x 16,50 m

7x Hatches: 15,47 x 20,00 m

Water ballast

134.895,6 m³

Lifting equipment

1x Overhead crane - SWL 8,0 t

2x Hoist cranes - SWL 9,0 t each

2x Provision cranes - SWL 8,0 t each

Manager

Hosco
Qinhuangdao
China

Operator

Hebei Ocean Shipping Co., Ltd.
258 East of Qinhuang Street
Qinhuangdao, Hebei
China

Registered owner

Enormous Success Limited
