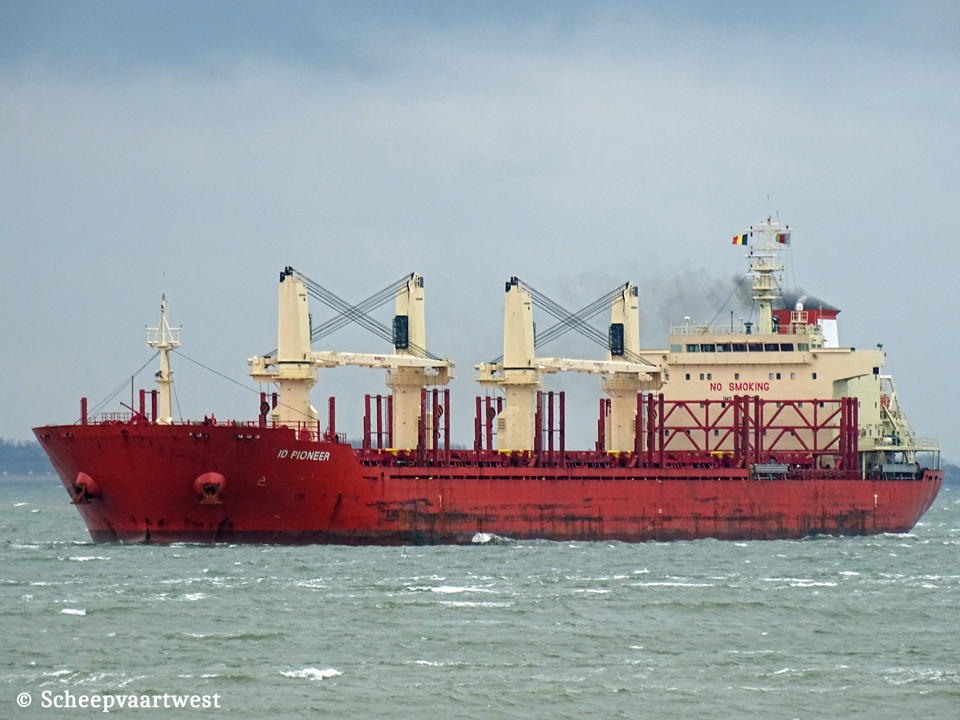

| Westerschelde 25 April 2016 |
|
Name |
ID PIONEER |
|
Previous names |
11/2012 - 02/2014 Maple Apus |
|
Type |
Bulk carrier - Lumber carrier - Strengthened for heavy cargo loading - Handysize |
|
IMO-number |
9665700 |
|
Call sign |
9HA3761 |
|
Flag |
Malta Valletta |
|
Previous flags |
11/2012 - 09/2014 Hong Kong - Call sign: VRLB3 |
|
GRT |
23.883 t |
|
DWT |
35.534 t |
|
NRT |
11.400 t |
|
Length |
179,90 m overall |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 10,17 m |
|
Moulded L x B x D |
171,50 x 30,00 x 14,80 m |
|
Registered L x B x D |
172,63 x 30,00 x 14,80 m |
|
Freeboard |
Summer: 4.679 mm |
|
Depth |
14,80 m moulded |
|
Speed |
13,7 knots |
|
Built |
2012 |
|
Keel laid |
06/12/2011 |
|
Launch date |
17/09/2012 |
|
Date of completion |
08/11/2012 |
|
Builder |
Taizhou Maple Leaf shipbuilding Co., Ltd. Linhai, Zhejiang China |
|
Yard number |
051 |
|
Hull material |
Steel |
|
Main engine |
1x STX/MAN-B&W 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 5.889 kW at 114,0 rpm Manufacturer: STX Engine Co., Ltd., Changwon - South Korea |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 440 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler (Composite) - 0,78 MPa Evaporation: 2,10 t/h Builder: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
2x Generatorsets total 2.400 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 44.727 m³ Grain: 46.283 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.784 m³ Fresh water: 332 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Crew size |
25 |
|
Manager |
Tamar Ship Management Ltd. 26/F Vertical, SQ Building, 28 Heung Yip Rd Wong Chuk Hang Hong Kong - China |
|
Registered owner |
Danskib 87 Care of ID Management ApS Bredgade 30, DK-1260 København K Denmark |
|
Previous names & owners |
11/2012 - 02/2014 Maple Apus - Maple Prosperity Shipping Ltd. |
|
Latest data adjustment |
04 June 2023 |
