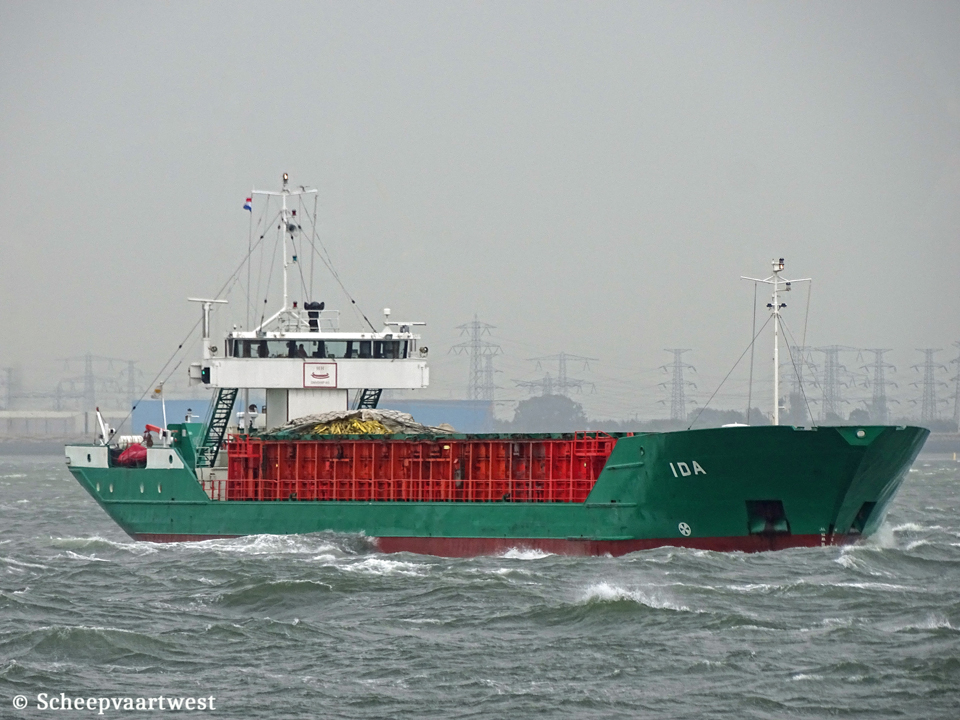

| Westerschelde 22 June 2017 |
 |
 |
|

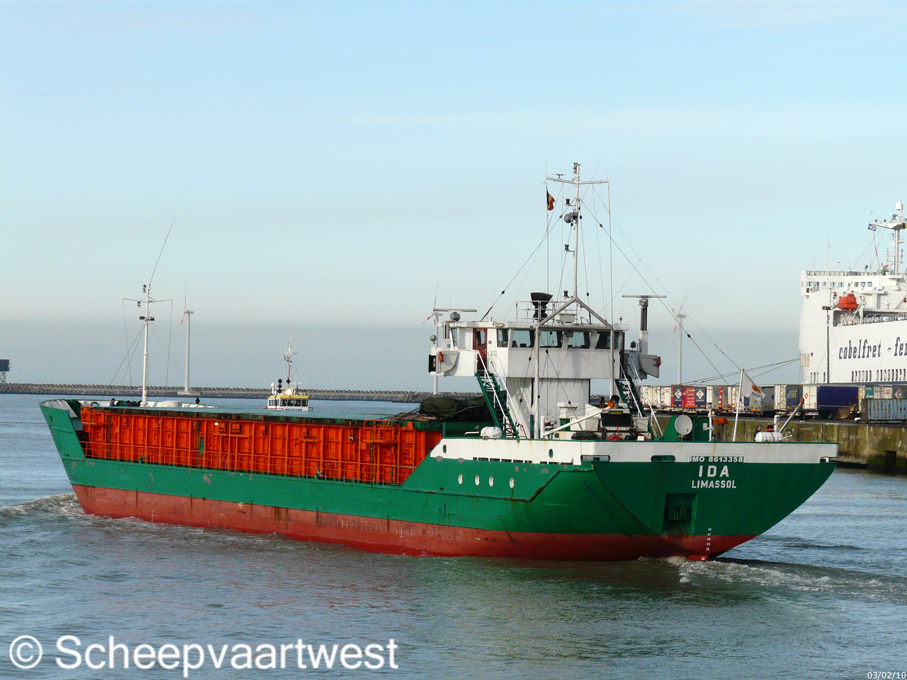

| Westerschelde 22/06/17 | Zeebrugge 03/02/10 | |
|
Name |
IDA |
|
Previous name |
1986 - 06/2005 Sooneck |
|
Type |
General cargo - Strengthened for heavy cargo, Equipped for carriage of containers Box single seine-trader |
|
IMO-number |
8613358 |
|
Call sign |
C4CZ2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
1.616 |
|
DWT |
2.019 t |
|
NT |
844 |
|
Number of 20ft containers |
76 |
|
Length |
82,53 m overall 77,35 m registered |
|
Breadth |
11,30 m registered |
|
Draught |
3,891 m |
|
Poop |
12,60 m |
|
Freeboard |
1.518 mm |
|
Depth |
5,40 m moulded |
|
Speed |
10,0 knots |
|
Built |
1986 |
|
Keel laid |
06/12/1985 |
|
Launch date |
28/08/1986 |
|
Date of completion |
10/1986 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
613 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom - Interrupted in way of machinery space |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MWM TBD 440-6 K - 4 stroke single acting 6 cylinder 230 x 270 mm combustion engine 646 kW at 800 rpm Year of manufacture: 1986 Manufacturer: Motoren-Werke Mannheim AG Carl-Benz-Str. 5 68167 Mannheim Federal Republic of Germany |
|
Propeller |
1x Solid propeller - aft at 279 rpm |
|
Boiler |
Steam boiler, oil fired Year of manufacture: 1986 |
|
Electric installations |
1x Plant 380/220 V - 240 kVA 1x Plant 380 V - 57 kVA |
|
Shaft generator |
1x 57 kVA |
|
Generators |
2x Main diesel generatorsets each 120 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 132 kW, forward |
|
Cargo capacity |
Grain & bales: 2.873 m³ / 107.000 ft³ |
|
Number of hold |
1 49,80 x 9,00 x 6,80 m Step on tanktop 8,00 m towards front |
|
Number of hatches |
1 49,80 x 9,00 m |
|
Strength |
Tanktop: 12,0 t/m² Hatchcovers: 1,5 t/m² |
|
Tank capacities |
Fuel oil: 112 m³ Ballast water: 1.239 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m |
|
Crew |
6 |
|
Manager |
Interscan Schiffahrtsges. MbH Raboisen 32 20095 Hamburg Federal Republic of Germany |
|
Owner |
Provence Navigation Ltd. 284, Arch Makarios III. Ave. 2nd & 3rd Floor Limassol Republic of Cyprus |
|
Special annotation |
Wheelhouse hydraulic lowering |
|
Renamed |
12/2022 Agia Anna Republic of Panama, Panama City - Call sign: 3E3876 Manager: Uniteam Marine Limited, Limassol - Cyprus Owner: Athos Oceanway Ltd.,Thessaloniki - Greece |
|
Latest data adjustment |
04 December 2024 |
