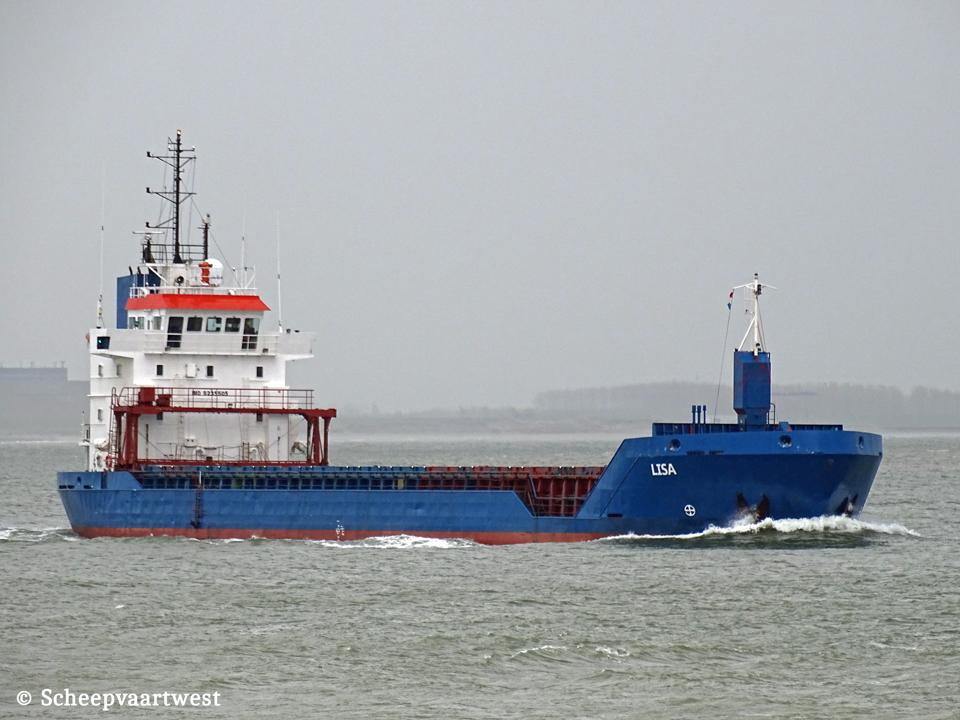

Lisa IMO 9235505 01
Westerschelde 25 April 2016


Name

LISA

Previous names

Launch as: Asgard

River Aln

Blue Stream

Lehmann Viking

Blue Stream

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9235505

Call sign

5BNE5

Flag

Cyprus

Port of registry

Limassol

Previous flags

2001 - 2021 Antigua & Barbuda, St. John’s - Call sign: V2GA4

GT

2.829 t

DWT

Summer: 2.885 t

Winter: 4.737 t

NT

1.548 t

Number of 20ft containers

In hold: 111

On deck: 76

Total 187

Length

89,75 m overall

94,98 m between perpendiculars

Breadth

13,60 m extreme

Draught

Summer: 6,37 m

Winter: 6,42 m

Air draft

29,30 m

Depth

7,20 m to main deck

Speed

Max: 12,2 knots

Service: 10,0 knots

Built

2001

Keel laid

30/06/1998

Launch date

13/01/2001

Date of completion

31/03/2001

Builder casco

Bodewes Scheepwerft Volharding NV

The Netherlands

Builder completion

Scheepswerf Pattje B.V.

Waterhuizen

The Netherlands

Yard number

429

Hull material

Steel

Hull type

Double hull

Movable bulkheads

2x Moveable grain bulkhead with 7 stowage positions

Continuous decks

1

Main engine

1x Krupp MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.447 hp at 750 rpm

Propellers

1x Controllable pitch propeller - aft at 750 rpm

Shaft generator

1x 264 kW

Generators

2x Scania DS9 main diesel generatorsets each 135 kW - 50 Hz

Emergency generator

1x Sisu diesel generatorset 110 kVA - 50 Hz

Bow thruster

1x 225 kW

Number of holds

1x Boxshaped hold narrowing fore and aft

62,88 x 11,00 x 8,35 m

Caro hold capacity

Grain: 5.498 m³

Hold ventilation

6x Electric drive ventilation

Number of hatches

1

62,70x10,10 m

Hatch type

Steel pontoon hatches with 1 gantry crane

Maw permitted loads

Tanktop: 12,5 t/m²

Hatches: 1,6 t/m²

Tank capacities

Ballast: 1.674,0 m³

IFO: 140,0 m³

MGO: 216,0 m³

Potable water: 53,6 m³

Anchor equipment

Length: 440,00 m

Diameter: 36 mm

Accommodation

For Captain and Crew of a total 10 persons with heating, ventilation and air-conditioning

Commercial manager

Hermann Lohmann Bereederungen GmbH & Co.

Boschstraße 15,

49733 Haren (Ems)

Germany

ISM manager

Hermann Lohmann Schiffahrtsverwaltung

Registered owner

Hermann Lohmann Schiffahrts GmbH & Co. KG MS "SCHWARTENBERG"

Care of Hermann Lohmann Bereederungen GmbH & Co

KG, Boschstrasse 15

49733 Haren (Ems)

Germany

Latest data adjustment

04 June 2023
