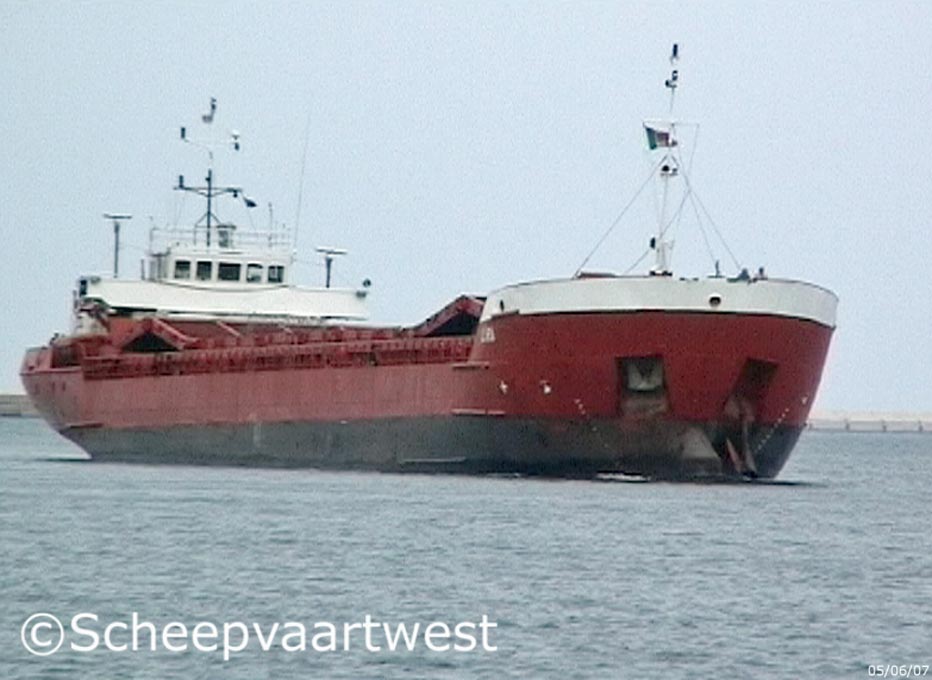

Lira
Brindisi - Italy 05 June 2007



Name

LIRA

Previous names

1985 - 10.02.1989 Sea Jade - Germany

10.02.1989 - 11.03.1999 Jade

11.03.1999 - 30.09.2005 Munster
2005 Lira

Type

General cargo vessel / Multi-purpose
Strengthened for heavy cargo, Equipped for carriage of containers

IMO-number

8516744

Call sign

OMMF

Flag

Slovakia (Slovak Republic)

Previous flags

1985 - 18.03.1992 - Germany

18.03.1992 - 30.09.2005 - Antigua & Barbuda

Port of registry

Bratislava

GT

1.948 t

Summer

Summer: 2.821 t

NT

1.006 t

Number of 20ft containers

158

Length

89,38 m overall
85,50 m between perpendiculars

86,02 m registered

Breadth

12,51 m overall

12,50 m registered

Draught

4,612 m

Forecastle

6,70 m

Freeboard

1.740 mm

Depth

6,35 m moulded

Speed

11,0 knots

Built

1985

Keel laid

31.08.1984

Launch date

27.04.1985

Date of completion

06.1985

Builder

B.V. Scheepswerf Damen Gorinchem
Industrieterrein Avelingen West 20
4202 MS Gorinchem
The Netherlands

Yard number

8201

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x MaK 6 M 332 - 4 stroke single acting 6 cylinder 240 x 330 mm diesel engine - 2.441 kW at 603 rpm

Year of manufacture: 1985

Builder:Krupp MaK Maschinenbau GmbH Kiel - Germany

Number of screws

1x Solid propeller - aft

Electric installations

1x 380 V - 200 kVA

1x 380 V - 47,5 kVA

Generators

2x Main diesel generatorsets each 100 kVA

Emergency generator

1x Diesel generatorset 47,5 kVA

Bow thruster

1x Transverse thruster VEMOPA - 195 kW, forward

Compressed air receivers

1x Receiver 250 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

Largest hatch

Length: 63,35 m
Breadth: 10,10 m

Cargo capacity

Grain: 3.902 m³

Ballast capacity

1.500 m³

Anchor equipment

3 Anchors weight each 1.440 kg

Chain length: 412,50 m

Manager

Yugreftransflot JSC
5, Rybakov Street
99014 Sebastopol
Ukraine

Owner

Titan Faith
Calle 53, Urbanizacion Ohario Torre Swiss Bank, 16th Floor
Panama City
Republic of Panama

Special annotations

Wheelhouse hydraulic lowering
