| Westerschelde 19 May 2017 |
 |
|
| Westerschelde 19/05/17 | |
|
Name |

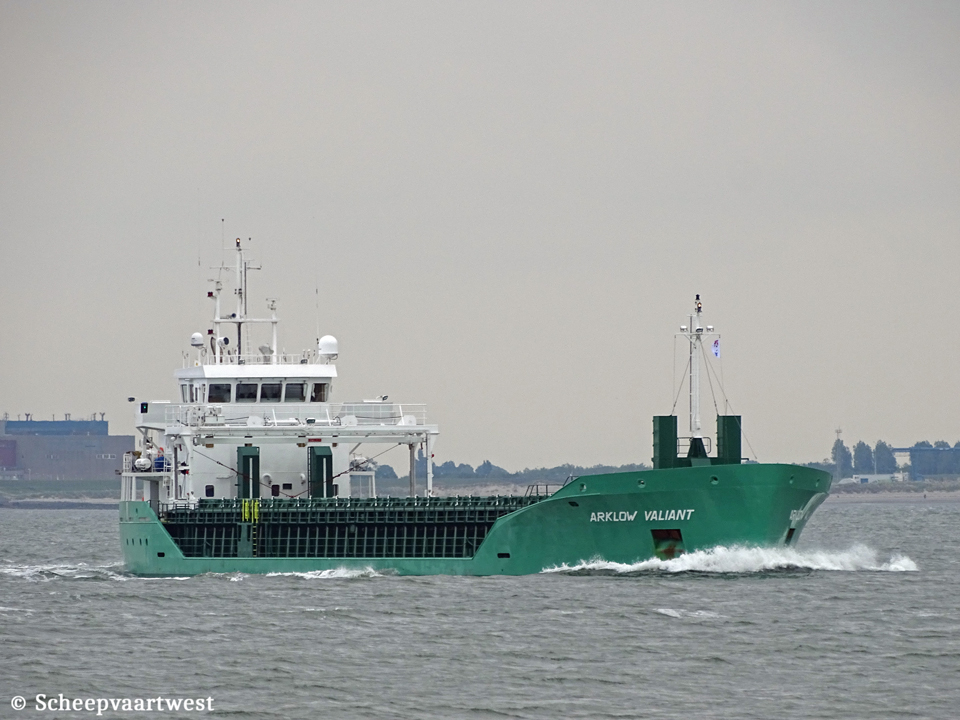

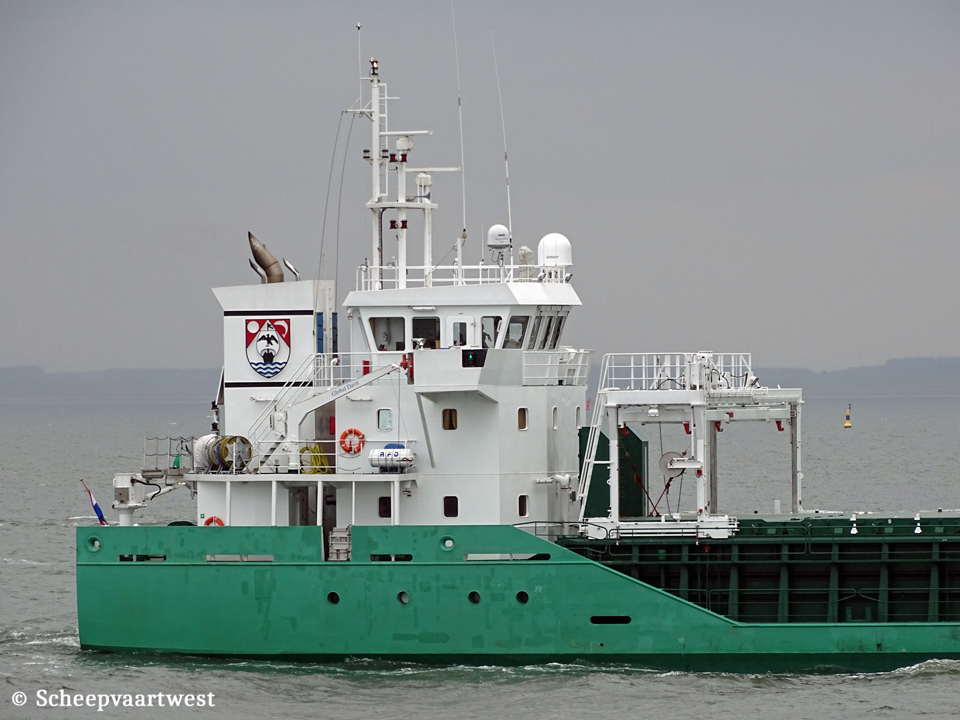

ARKLOW VALIANT |
|
Type |
General Cargo ship - Heavycargo |
|
IMO-number |
9772541 |
|
Call sign |
PBRP |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.999 t |
|
DWT |
Summer: 5.169 t Winter: 5.017 t |
|
NT |
1.731 t |
|
Length |
86,93 m overall 84,98 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,35 m Winter: 6,23 m |
|
Air draft |
Min: 17,84 m Ballast: 4,36 m |
|
Freeboard |
830 mm |
|
Depth |
7,17 m moulded |
|
Speed |
12,5 knots |
|
Built |
2016 |
|
Launch date |
01/04/2016 |
|
Delivery date |
31/05/2013 |
|
Builder |
Bodewes Hoogezand BV The Netherlands |
|
Yard number |
723 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x in 8 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.740 kw / 2.365 bhp at 720 rpm Build: 09/11/2015 Manufacturer: Caterpillar Motoren G.m.b.H. & Co. K.G., Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Shaft generator |
1x 154 kW 1x 342 kW |
|
Generators |
1x Sisu Diesel main diesel generatorset 193 kVA - 154 kW - 224 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 101 hp |
|
Bow thruster |
1x Electric bowthruster 300 kW |
|
Number of holds |
1 60,00 x 12,40 x 8,64 m |
|
Cargo hold capacity |
Grain: 6.258 m³ / 221.000 ft³ |
|
Hold ventilation |
Mechanical ventilation 6x Changes per hour in empty holds |
|
Hatch type |
Pontoon system |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 210,5 m³ |
|
ISM & commercial manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Avoca Shipping BV Care of Arklow Shipping Nederland BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Latest data adjustment |
17 September 2023 |
