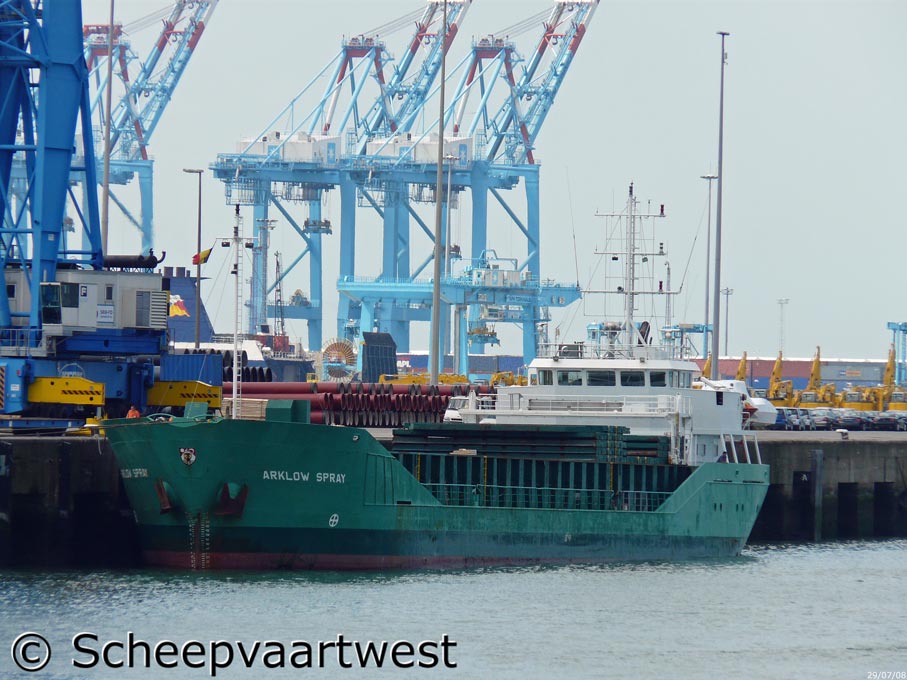

Arklow Spray - IMO 9117961

Name

ARKLOW SPRAY

Type

General Cargo

IMO-number

9117961

Call sign

C6VK8

Flag

Bahamas

Previous flag

2006 - 2008 Ireland

Port of registry

Nassau

GT

2.300 t

DWT

3.211 t

NT

1.290 t

Number of 20ft containers

270

Displacement

4.351 t

Length

89,99 m overall

84,99 m between perpendiculars

Breadth

12,64 m over all
12,50 m moulded

Draught

Summer: 4,65 m

Air draft

19,80 m

Freeboard

1.180 mm

Depth

6,00 moulded

Speed

10,5 knots

Built

1996

Keel

03.06.1995

Launch date

17.11.1995

Date of completion

15.01.1996

Builder

Barkmeijer Shipyard
Stroobos
The Netherlands

Yard number

279

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.360 kW / 1.847 hp at 1.000 rpm with Lohmann & Stolterfoht 4:1 reverse reduction gear

Built: 1995

Number of screws

1 Screw propeller solid at 253 rpm

Electrical installation

Power voltage: 380 V

Lighting Voltage: 220 V

Frequency: 50 Hz

Auxiliary power

2x Valmet 620DSG diesel engines each 110 kW couples with 2 Stamford UCM274 E23 generators each 112 kVA 50Hz
1x Valmet 320DSG diesel engine 42 kW coupled with Stamford UCM224 E generator 47,5 kVA 50Hz

Bow thruster

1x 200 kW

Tank capacity

Ballast: 1.586,30 m³
Fuel: 92,50 m³
Fresh water:56,20 m³
Lub oil: 3,56 m³

Number of cargo holds

1

Hold capacity

Grain & Bale: 166.765 ft³ / 4.723 m³

Hatchways

1

63,00 x 10,20 m

Hatches

Roden Staal pontoon system

Max. hatch top loading

1,6 t/m²

Max. tank top loading

14,0 t/m²

Consumption

In port 0,5 t gas oil per day
At sea 5,0 t gas oil per day

Manager

Arklow Shipping Limited
North Quay
Arklow
Co. Wicklow
Ireland

Operator

Arklow Shipping Limited

Owner

Arklow Shipping Limited (Head Office)
North Quay
Arklow
Co. Wicklow
Ireland

Owner as Completed

James Tyrrel - Arklow
