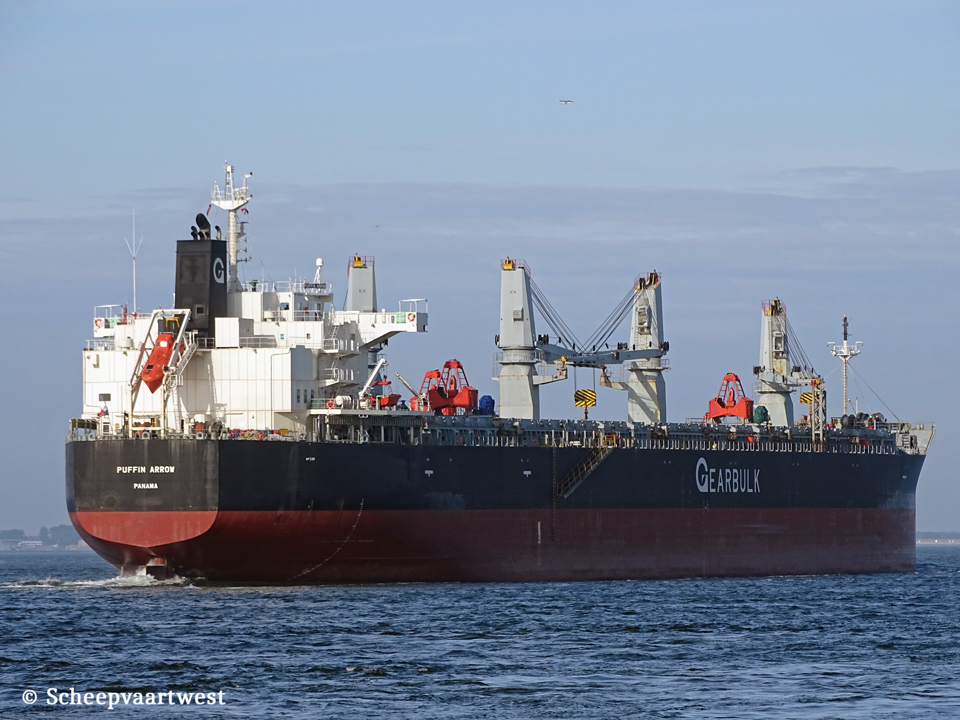

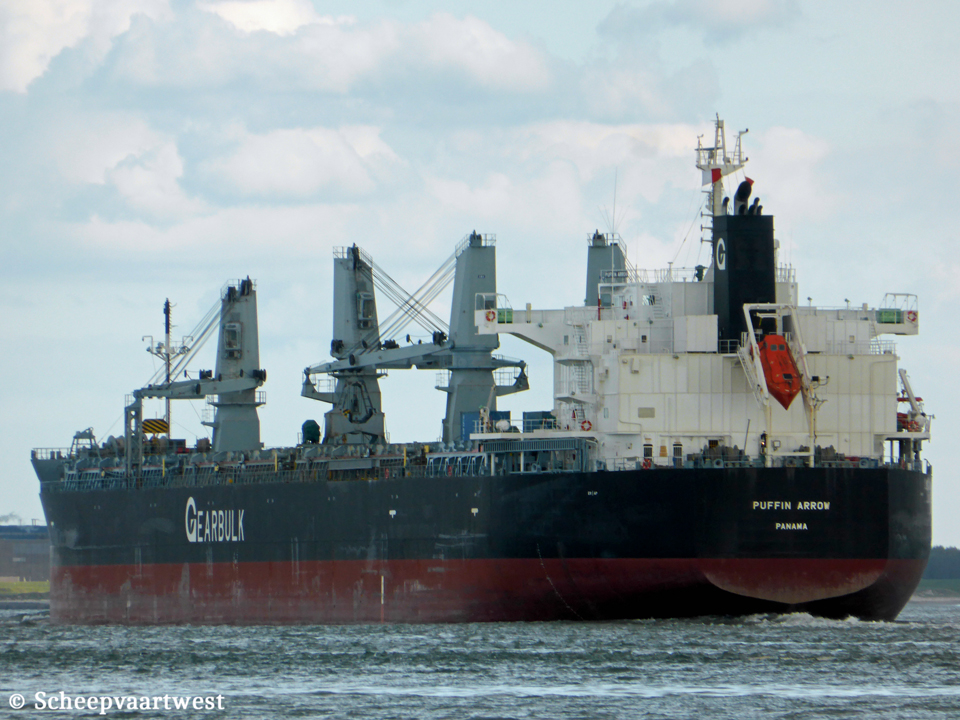

Puffin Arrow - IMO 9566605

Name

PUFFIN ARROW

Type

General cargo ship - Open hatch - Jib Crane vessel

Strengthened for heavy cargo loading

IMO-number

9566605

Call sign

3FIZ6

Flag

Republic of Panama

Port of registry

Panama City

GRT

36.925 t

DWT

62.967 t

NRT

18.292 t

Number of 20ft containers

270

Number of 40ft containers

132

Length

199,98 m overall

Breadth

32,26 m moulded

Draught

Summer: 13,51 m

Moulded L x B x D

196,00 x 32,26 x 19,22 m

Registered L x B x D

196,11 x 32,26 x 19,22 m

Freeboard

Summer: 5.786 mm

Depth

19,22 m moulded

Speed

Max: 16,0 knots

service: 13,9 knots

Economic: 13,1 knots

Built

2011

Keel laid

04/02/2010

Launch date

17/06/2011

Date of completion

22/07/2011

Builder

Oshima Shipbuilding Co., Ltd.

Saikai

Japan

Yard number

10616

Hull material

Steel

Hull type

Single hull

Double hull construction applied to all cargo holds

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 495 mm

Continuous decks

1

Main engine

1x MAN-B&W 6S50MC-CMKVIII - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.605 kW / 11.699 hp at 110,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,69 MPa

Evaporation: 2,87 t/h

Manufacturer: Aalborg Industries Limited

Generators

3x Main diesel generatorsets each 800 kW

Bow thruster

1x 1.480 kW

Number of holds

8

Cargo hold capacity

Bale: 70.283 m³

Grain: 70.312 m³

Number of hatches

8

Under deck capacity

3.759 m²

Max permitted loads

Hatch covers: 2,50 t/m²

Tank top # 1, 2, 4, 6, 8: 27,0 t/m²

TANK tOP # 3, 5, 7: 28,0 t/m²

Tank capacities

Fuel oil: 2.177 m³

Fresh water: 551 m³

Cargo gear

4x Deck cranes - SWL 40,0 t each

Manager

Gearbulk Norway AS

Ytrebygdsvegen 215

5258 Blomsterdalen

Norway

Registered owner

Gearbulk Shipowning Ltd.

Latest data adjustment

25 September 2023
