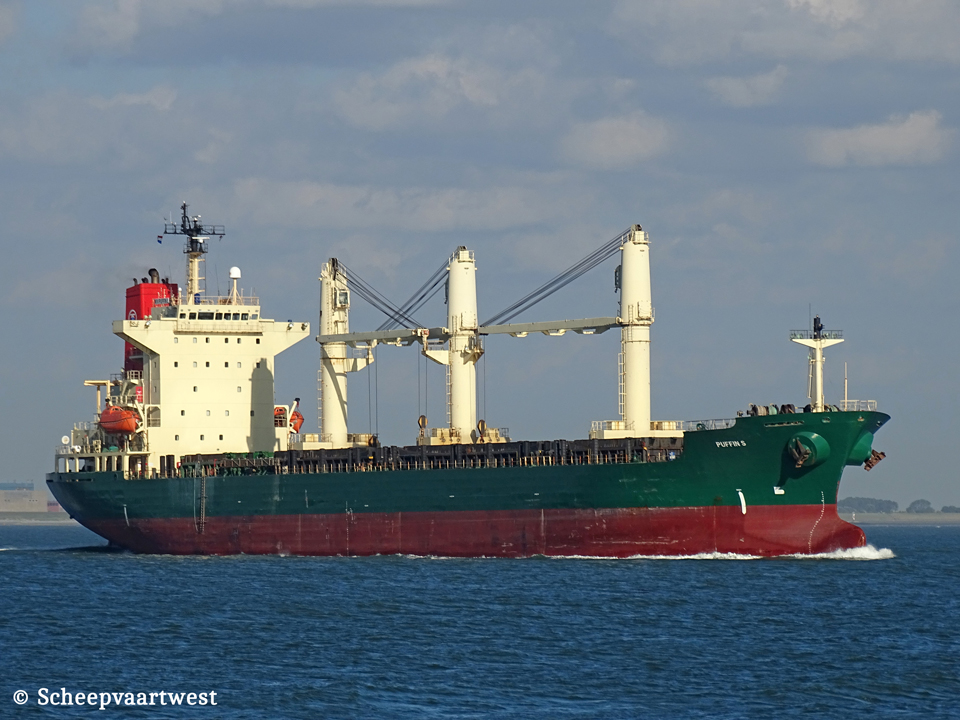

Westerschelde 12 August 2016 |
 |
 |
 |
 |
|||

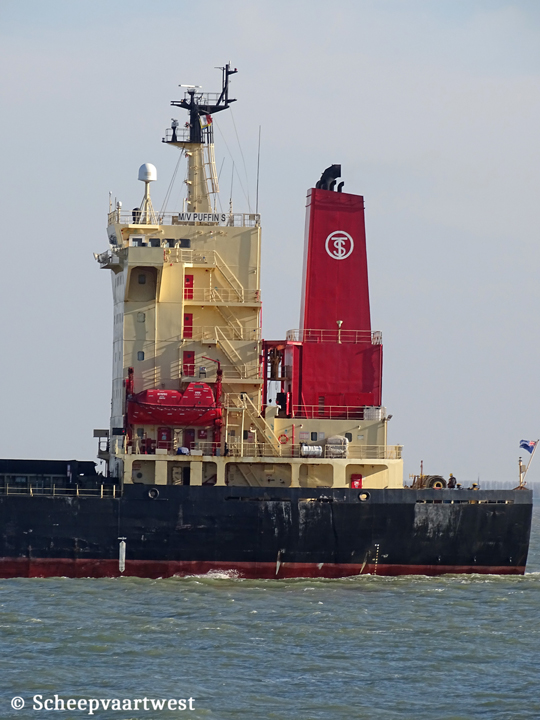

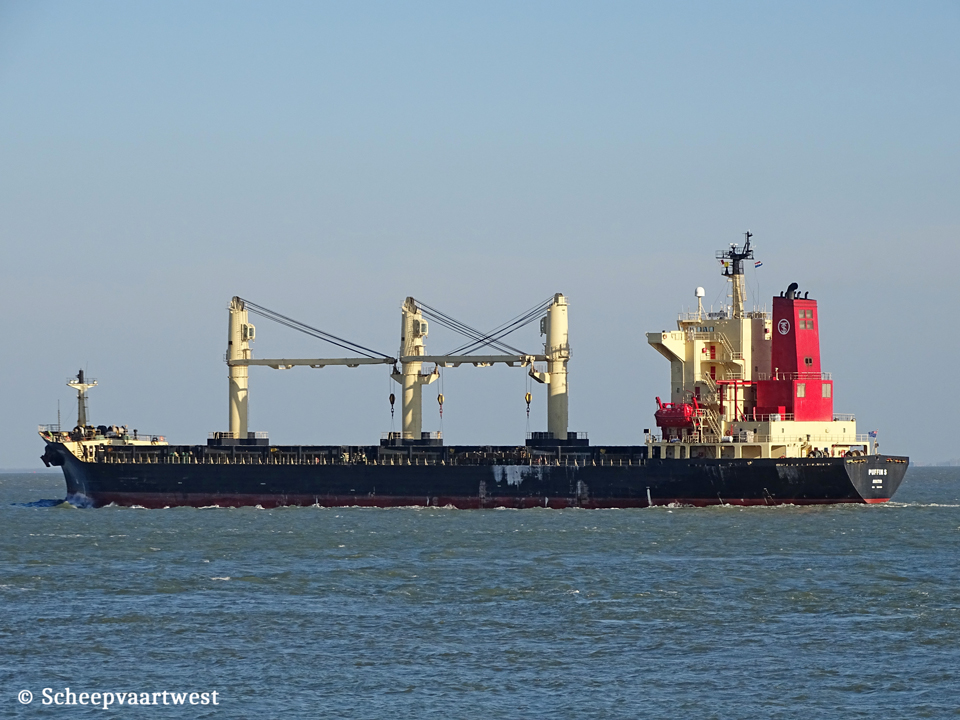

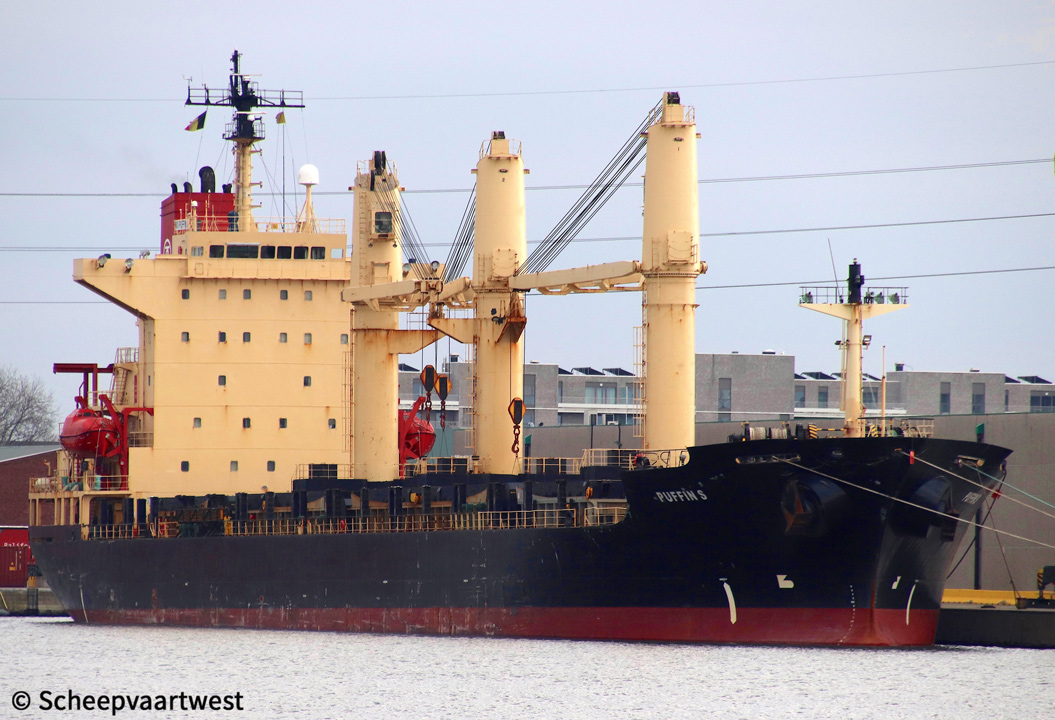

| Antwerpen 14/02/20 | Westerschelde 20/07/16 | Westerschelde 10/04/19 | WS 10/04/19 | |||
|
Name |
PUFFIN S |
|
Previous names |
1999 - 02/2002 Splendour 20/2002 - 04/2008 DS Splendour 04/2008 - 2014 Lady Anthula H |
|
Type |
Geared general multi-purpose carrier - Containership |
|
IMO-number |
9164811 |
|
Call sign |
D5VI4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
Malta, Valletta- Call sign: 9HMY9 until 2014 Cook Islands, Avatiu - Call sign: E5U2890 until 2019 |
|
GT |
14.118 t |
|
DWT |
Summer: 20.738 t |
|
NT |
6.124 t |
|
Displacement |
20.738 t |
|
Number of 20ft containers |
847 |
|
Reefer capacity |
54 |
|
Length |
157,90 m overall 149,00 m between perpendiculars |
|
Breadth |
23,10 m |
|
Draught |
Max: 9,72 m |
|
Freeboard |
4.118 mm |
|
Depth |
13,80 m |
|
Speed |
Max: 17,0 knots |
|
Built |
1999 |
|
Date of completion |
05/06/1999 |
|
Builder |
Hitachi Zosen Marine Service Singapore Pte |
|
Yard number |
N-026 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hitachi 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.356 hp at 136,0 rpm Built: 10/04/1998 Builder: Hitachi Shipbuilding & Engineering, Osaka - Japan |
|
Propellers |
1x Screw propeller solid - aft at 136,0 rpm |
|
Boilers |
1x CHM Osaka boiler MFG CO. 13,00 m² |
|
Generators |
3x Main diesel generatorsets each 750 kVA - 600 kW - 815 hp |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 194 hp |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 23.880 m³ Bale: 23.795 m³ |
|
Number of hatches |
4 |
|
Tank capacities |
Fuel oil: 1.240 m³ Diesel oil: 65 m³ Fresh water: 246,6 m³ Water ballast: 9.008 m³ |
|
Cargo gear |
3x Deck cranes - SWL 36,0 t each |
|
Commerical manager |
Armador Gemi Isletmecilig Kat 3, 3/1 Sokak 2, Sumer Mah, Zeytinburnu 30425 Istanbul Turkey |
|
ISM manager |
Puffin Shipping & Trading Ltd. Kat 1, 3/1 Sokak 2, Sumer Mah, Zeytinburnu 34025 Istanbul Turkey |
|
Registered Owner |
Puffin Shipping & Trading Ltd. Care Of Armador Gemi Isletmecilig Ticaret Ltd Sti (Armador Shipping) Kat 3, 3/1 Sokak 2, Sumer Mah, Zeytinburnu 34025 Istanbul Turkey |
|
Latest data adjustment |
01 May 2022 |
