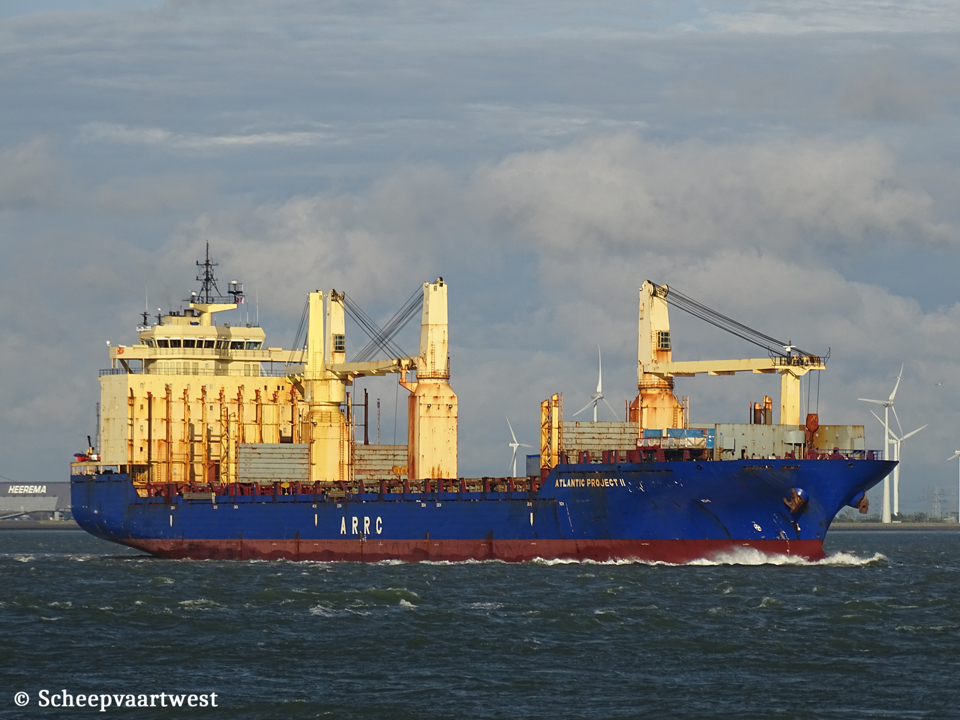

Atlantic Project II IMO 9235983 01
Westerschelde 03 August 2016

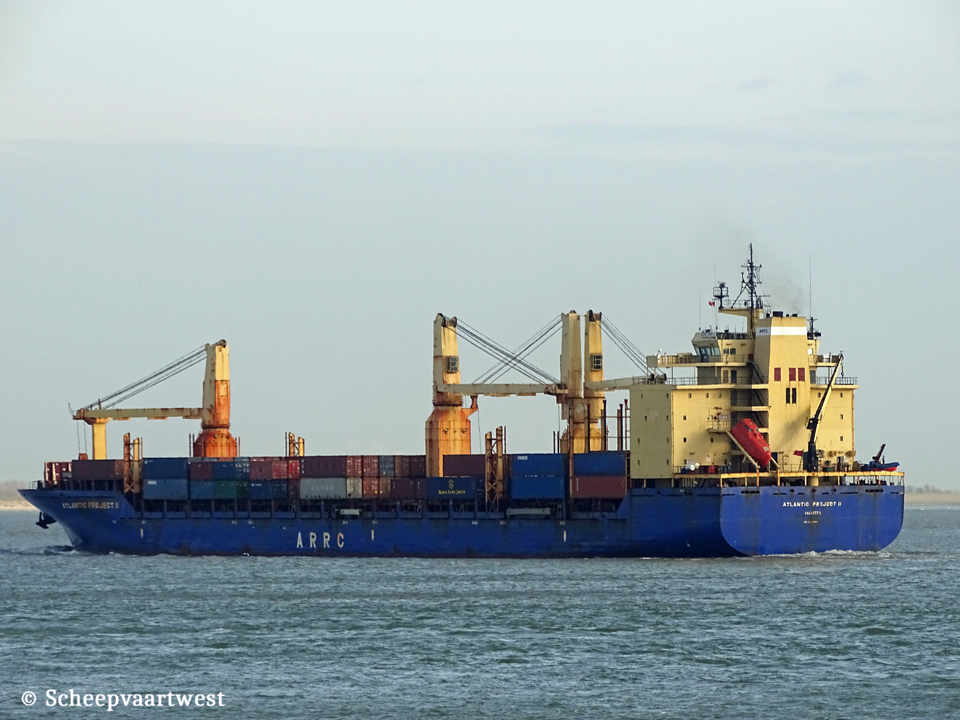

Atlantic Project II IMO 9235983 02
Westerschelde 02/02/17


Name

ATLANTIC PROJECT II

Previous names

06/2002 - 11/2003 Cape Dye

11/2003 - 05/2007 CCNI Magallanes

05/2007 - 06/2007 CCNI Antartico

06/2007 - 12/2011 Hyundai Jumbo

12/2011 - 10/2014 Antonio

Type

Multi-purpose dry dry ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9235983

Call sign

V7A5871

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

Marshall Islands - Call sign: V7CZ5

Liberia, Monrovia - Call sign: A8VI7

Malta, Valletta- Call sign: 9HA3795

GT

23.132 t

Suez: 23.514 t

DWT

30.586 t

NT

9.375 t

Suez: 20.171 t

Panama: 20.285 t

Light ship

11.922,7 t

Number of 20ft containers

In hold: 786

On deck: 1.043

Total: 1.829

Number of 40ft containers

In hold: 56 + 703 TEU

On deck: 56 + 1.043 TEU

Total: 112 / 1.749 TEU

Container capacity 14t

1.350

Reefer capacity

150 on deck

Length

192,90 m overall

182,00 m between perpendiculars

Breadth

27,80 m extreme

Draught

Summer: 11,20 m

Keel to mast end

51,10 m

Depth

15,50 m

Speed

Max: 19,4 knots

Built

2002

Keel laid

24/06/2001

Launch date

16/12/2001

Date of completion

01/06/2002

Builder

Xiamen Shipbuilding Industry

Xiamen

China

Yard number

439C

Hull material

Steel

Hull type

Double hull

Main engine

1x ZJMD/MAN-B&W 7L23/30H - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine Mcr 15.785 kW / 21.471 hp at 105,0 rpm

Propellers

1x Fixed pitch propeller

4 Blades - diameter 6.800 mm

Boilers

1x Auxiliary boiler, oil/gas fired AQ12

1x Auxiliary boiler, exhaust gas heated AV-4

Builder: Alfa Laval Qingdao Ltd.

Generators

1x ZJMD/MAN-B&W 7L23/30H diesel generatorset 1.135 kW at 900 kW

2x ZJMD/MAN-B&W 6L23/30H diesel generatorsets each 975 kW at 900 rpm

Builder: Zhenjiang CME Co., Ltd. Zhenjiang Marine Diesel Works

Emergency generator

1x MAN D2866 TE diesel generatorset 200 kW at 1.800 rpm

Bow thruster

1x 900 kW

4 Blades - Diameter: 1.880 mm

Number of holds

5

Box shaped holds

Hold No,1 (fore): 12,80 x 15,40 x 15,77 m

Hold No,1 (aft): 12,80 x 20,40 x 15,77 m

Hold No,2-4 (p): 25,60 x 10,30 x 15,77 m

Hold No,2-4 (s): 25,60 x 10,30 x 15,77 m

Hold No,5 (p): 12,80 x 10,30 x 15,77 m

Hold No,5 (s): 12,80 x10,30 x 15,77 m

Hold No. 2,3,4: one level of tweendeck pontoons are fitted at following levels:

  • Tank top to underneath tweendecks - 8,35 m

  • Total clear heights in cargo holds no 2,3,4 (without tween decks): tank top to underneath hatch cover - 15,77 m

Cargo hold capacity

Hold 1: 1x 5.599,75 m³ (Container hold)

Hold 2: 2x 4.100,66 m³

Hold 3: 2x 4.143,47 m³

Hold 4: 2x 4.143,47m³

Total grain/bale capacity holds 2,3,4 stb/port 24.775 m³

Number of hatches

9

Hatch cover type

MacGregor folding type

Max permitted loads

Tanktop strength:

  • Hold 2,3,4: 22,0 t/m²

  • Hold 1, 5: 14,9 t/m²

Hatch cover strength: abt. 2,5 t/m²

Tween deck strength: abt. 4,0 t/m²

Tank capacities

HFO: 2.908 m³

MDO: 139,1 m³

Lub oil: 129,5 m³

fresh water: 287 m³

Ballast: 12.586 m³

Anchor equipment

Length: 605,00 m

Chain diameter: 68 mm

Cargo gear

2x Deck cranes - SWL 100 t

Combinable to 200 t

2x Deck cranes - SWL 50 t

Accommodation

For a crew of 26 persons with heating, ventilation and air-conditioning

Manager

CISN Management Company Netherlands B.V.

Registered owner

Asterias Marine Company

Previous names & owners

06/2002 - 11/2003 Cape Dye - Cape Dyer Shipping Co Ltd.

11/2003 - 05/2007 CCNI Magallanes - Ganymed Shipping GmbH - Germany

05/2007 - 06/2007 CCNI Antartico - San Antonio Schiffahrtsges mbH, Hamburg - Germany

06/2007 - 12/2011 Hyundai Jumbo - NSC Schifffahrtsgesellschaft mbH & Cie KG - Germany

12/2011 - 10/2014 Antonio - NSC Schifffahrtsgesellschaft mbH & Cie KG - Germany

Latest data adjustment

12 December 2023
