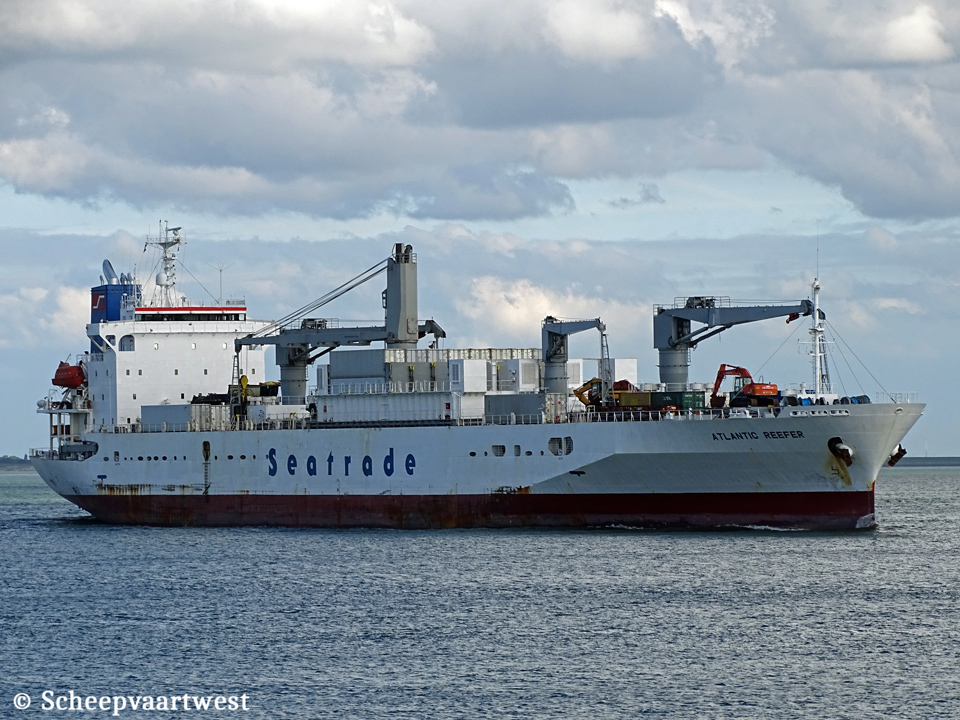

Atlantic Reefer IMO 9179256 18
Westerschelde 13 September 2019

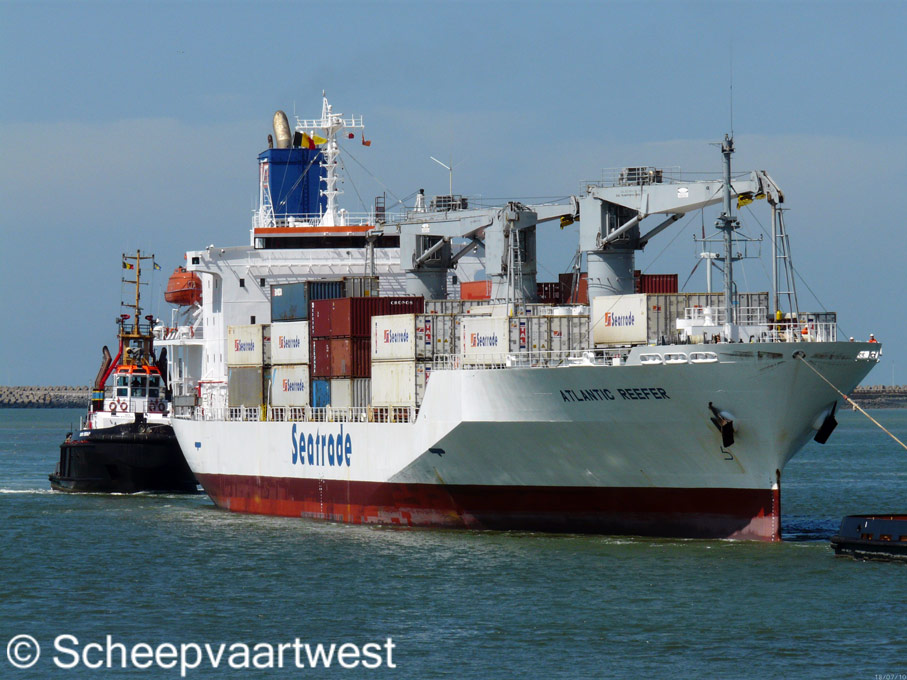

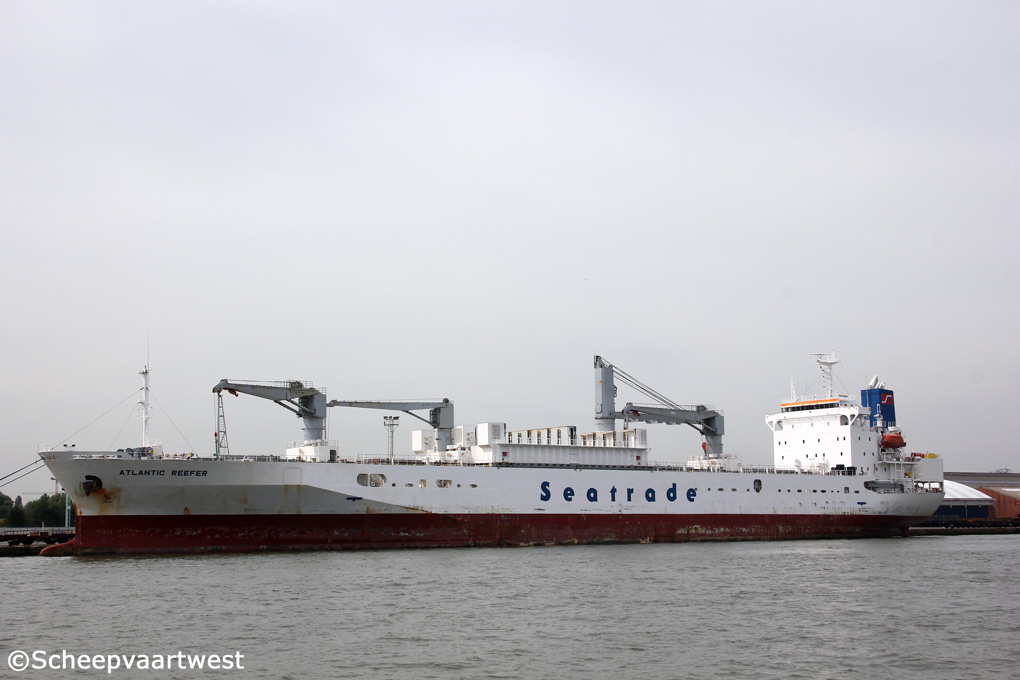

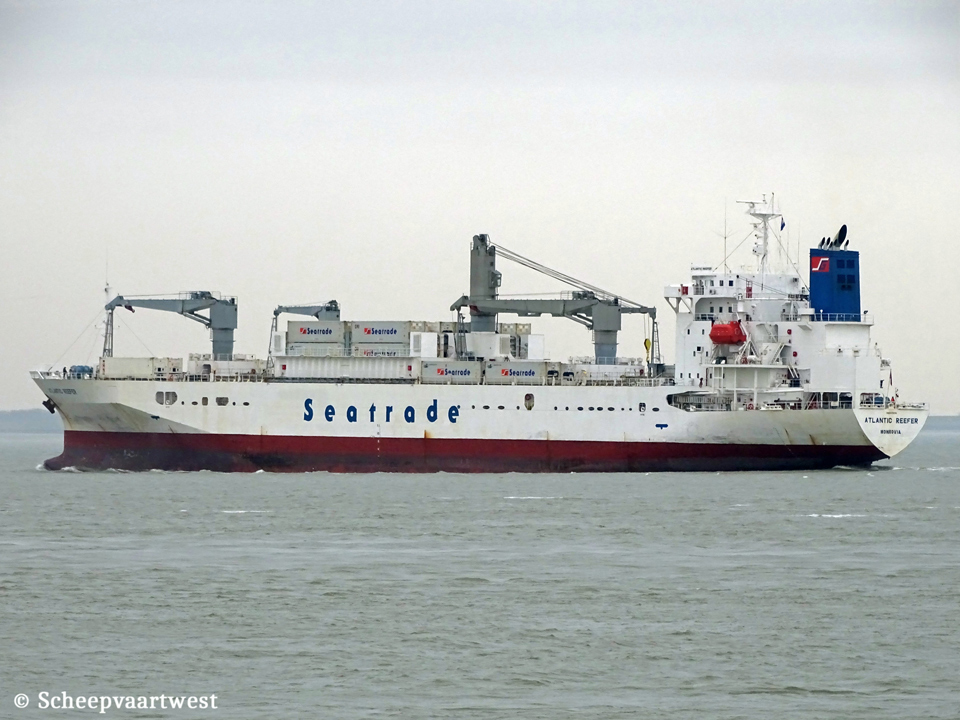

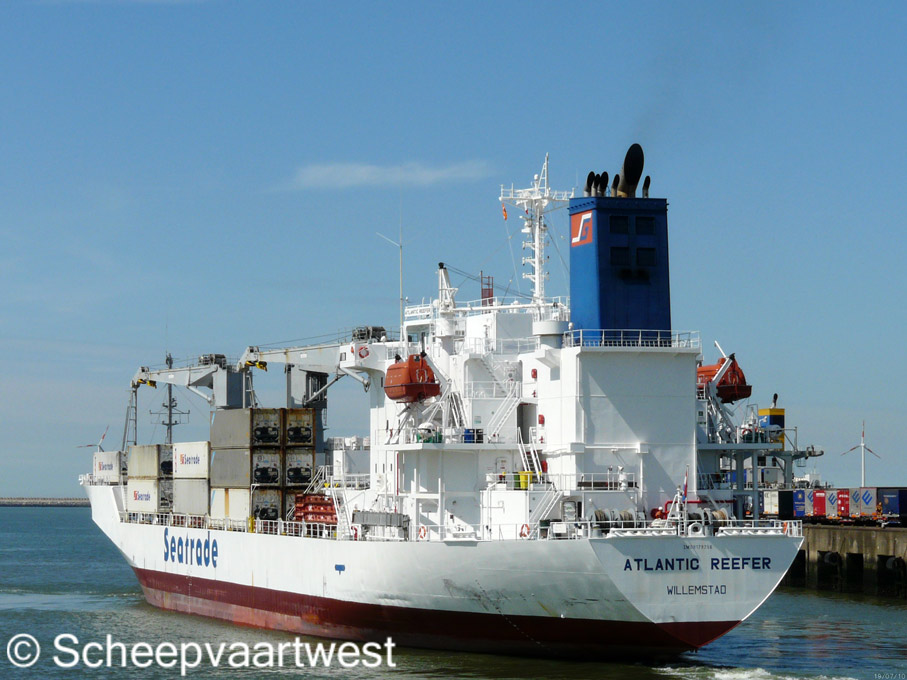

Atlantic Reefer 06   Atlantic Reefer 09   Atlantic Reefer 11   Atlantic Reefer 16   Atlantic Reefer IMO 9179256 17
Zeebrugge 18/07/10 Zeebrugge 19/07/10 Zeebrugge 04/07/13 Antwerpen 26/06/15   Westerschelde 30/12/18



Name

ATLANTIC REEFER

Type

Frozen cargo - Refrigerated cargo ship - Equipped for carriage of containers

IMO-number

9179256

Call sign

D5FE2

Flag

Liberia

Port of registry

Monrovia

Previous flags

10/1198 - 11/2007 Republic of panama, Panama city - Call sign: 3FVY8

11/2007 - 10/2013 Netherlands Antilles, Willemstad - Call sign: PJCL

GT

14.505 t

DWT

17.100 t

NT

7.580 t

Container capacity

51 FEU or 72 TEU+15 FEU

Reefer plugs

61

Length

175,72 m overall

166,75 m between perpendiculars

Breadth

22,60 m

Draught

Summer: 9,72 m

Freeboard

3.620 mm

Depth

13,30 m moulded

Speed

21,0 knots

20,0 knots bananas load

Built

1998

Transformation year: 2012

Lengthened 15/12/2011 with 30,00 m - Cosco Shanghai Shipyard, Dhanghai - China

Date of completion

28/10/1998

Builder

Shin Jyuko K.K Heavy industries

Kochi

Japan

Yard number

7106

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsubishi 8UEC50LSII - 2 stroke single acting 8 cylinder 500 x 1.950 mm combustion engine 11.003 kW / 14.951 hp at 124 rpm

Built: 06/1998

Builder: Kobe Diesel Co., Ltd., Kobe - Japan

Propelling system

1x Screw propeller solid

Boilers

1x CHO Tortoise 44,48 m² - 6,9 bar

1x CHR Tortoise 274,10 m² - 6,9 bar

Diesel generators

3x Diesel generatorsets each 1.250 kVA - 1.000 kW - 1.359 hp

Holds / Hatches / Compartments

4 / 4 / 19

Total capacity of holds

24.084 m³

Floorspace

6.870,2 m²

Cooling sections

8

Refrigerating installations

  • Temperature range:+12 / -30 °C

  • Number of holds:4

  • Total capacity: 16.330 m³

  • Insulation material: Polyurethane

  • Insulation lining: Plywood

  • Compressors:3x Mycom Enrope Refrigeracion, S.L. Electrical

  • 2x Mycom Enrope Refrigeracion, S.L. Electrical

  • 1x Mycom Enrope Refrigeracion, S.L. Electrical

  • Refrigerant type: R22

  • Method of cooling: Brine

  • Means for distribution: Air Coolers

Air circulations

Vertical 90

Air renewals

2

Fuel capacity

1.385 m³

Lifting equipment

2x Cranes - SWL 36,0 t each

2x Cranes - SWL 8,0 t each

Crew

17

Manager

Seatrade Groningen B.V.

Groeningen

The Netherlands

Previous managers

10/1998 - 11/2007 Fukujin Kisen K.K. - Japan

11/2007 Seatrade Groningen B.V., The Netherlands

Operator

Seatrade

Owner

Atlantic Reefer Shipping Company B.V.

Willemstad

Netherlands Antilles

Previous owners

10/1998 - 11/2007 Wealth Line Inc. - Republic of Panama

Latest data adjustment

17 July 2021
