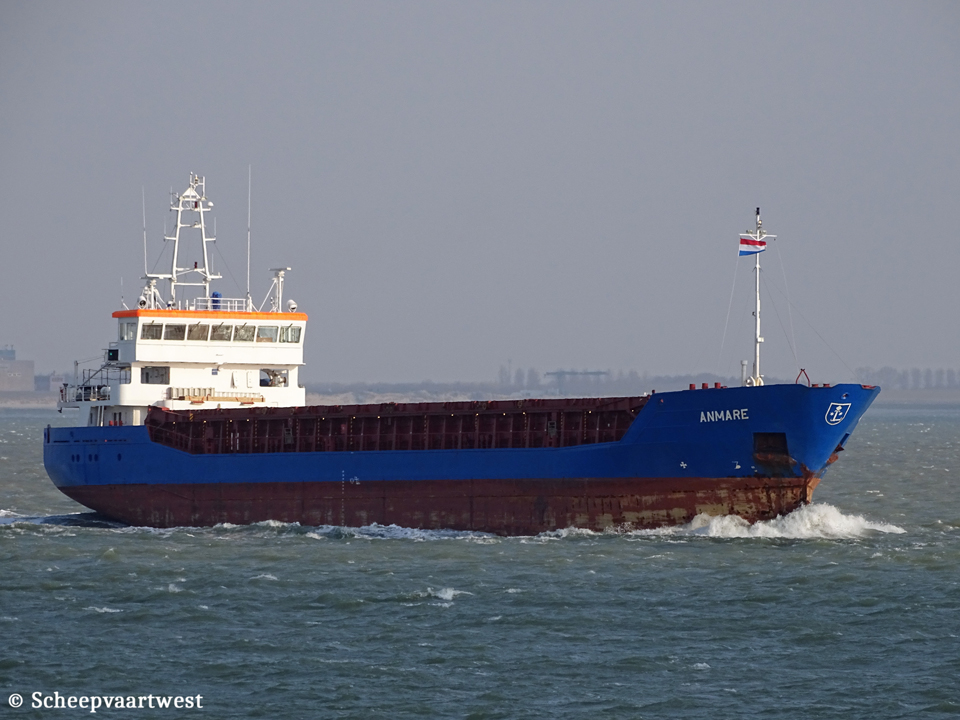

| Westerschelde 28 February 2018 |
|
Name |
ANMARE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Equipped for dangerous goods Singledecker |
|
IMO-number |
9434589 |
|
Call sign |
V2EO3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.461 t |
|
DWT |
Summer: 3.670 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
In hold: 180 On deck: 156 Total: 366 |
|
Number of 40ft containers |
In hold: 75 + 30 TEU On deck: 78 Total: 153 + 30 TEU |
|
Length |
87,86 m overall 81,00 m between perpendiculars |
|
Breadth |
12,89 m extreme |
|
Draught |
Summer: 5,51 m |
|
Depth |
7,10 m |
|
Speed |
Service: 11,1 knots Max: 12,0 knots |
|
Built |
2009 |
|
Keel laid |
17/06/1998 |
|
Launch date |
17/10/2008 |
|
Delivery date |
11/11/2009 |
|
Builder |
Slovenske Lodenice Komarno A.S. Slovakia |
|
Yard number |
2969 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable, can be placed in 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 8 cylinder combustion engine 1.520 kW / 2.066 hp |
|
Propellers |
1x Fixed propeller |
|
Generators |
2x Sisu 49.492 CTAG-4V main diesel generatorsets each 116 kW |
|
Emergency generator |
1x Sisu/Valmet 320 DSG diesel generatorset 53 kW |
|
Bow thruster |
1x Jastram Bu40F fixed pitch propeller thruster 185 kW |
|
Number of holds |
1 56,55 x 10,20 x 8,15 m |
|
Cargo hold capacity |
Grain: 4.600 m³ Bale: 4.588 m³ |
|
Hold ventilation |
6 Air-changes per hour |
|
Number of hatches |
1 56,55 x 10,20 m |
|
Hatch cover type |
Hydraulic folding type |
|
Floor space |
Under deck: 560 m² - 6.028 ft² On deck: 590 m² - 6.351 ft² |
|
Max permitted loads |
Tanktop: 15,0 t/m² On deck: 1,0 t/m² |
|
Tank capacities |
MDO: 165,0 m³ Ballast: 1.652,7 m³ Fresh water: 58,0 m³ Lub oil: 8,0 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
Crew size |
9 |
|
ISM & commercial manager |
Briese Dry Cargo GmbH & Co. KG Hafenstrasse 12 26789 Leer Germany |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "KUKELBORG" Germany |
|
Latest data adjustment |
14 February 2024 |
