| Westerschelde 20 January 2018 |
|
Name |

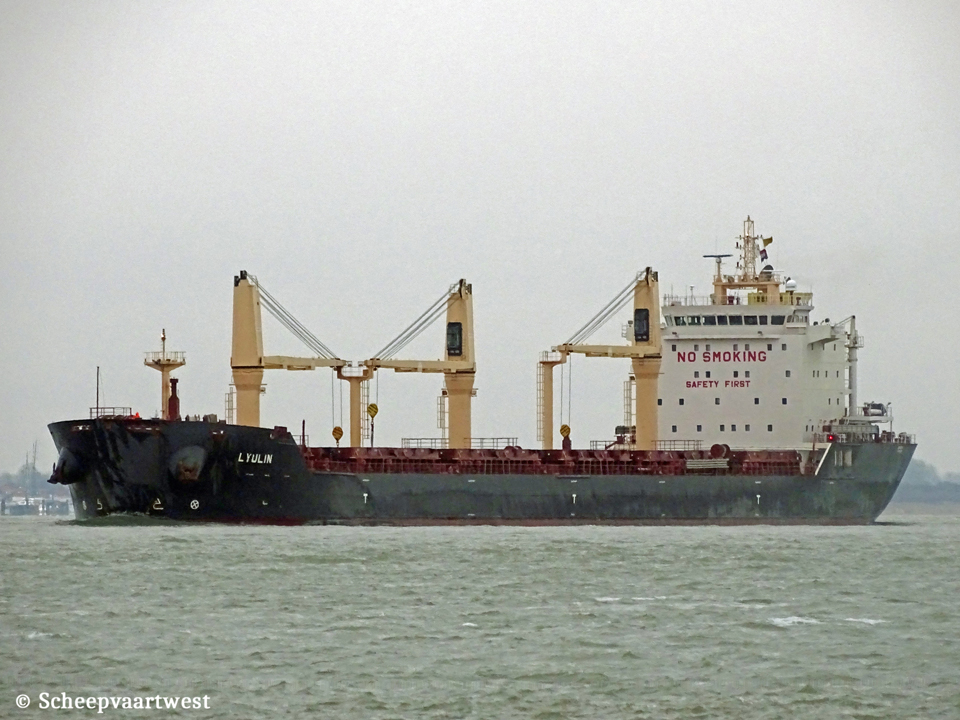

LYULIN |
|
Type |
Geared bulk carrier - Strengthened for heavy cargo SDARI 30 type |
|
IMO-number |
9498248 |
|
Call sign |
9HA2582 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
19.906 t |
|
DWT |
30.686 t |
|
NT |
10.279 t |
|
Light displacement |
8.977 t |
|
Length |
186,00 m overall 178,80 m between perpendiculars |
|
Breadth |
23,76 m extreme |
|
Draught |
Summer: 10,41 m |
|
Freeboard |
4.227 mm |
|
Depth |
14,60 m moulded |
|
Speed |
Service: 14,5 knots |
|
Built |
2011 |
|
Keel laid |
26/07/2010 |
|
Date of completion |
25/01/2011 |
|
Builder |
Shanhaiguan Shipbuilding Industry Co Ltd. Qinhuangdao China |
|
Yard number |
SHG-028 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x YMD/MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.200 kW / 9.789 hp at 118,0 rpm Builder: Yichang Marine Diesel Engine Co Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary boiler, composite |
|
Generators |
3x MAN-B&W 6L23/30H main diesel generatorsets each 960 kW |
|
Bow thruster |
1x 900 kW |
|
Number of holds |
6 |
|
Cargo hold capacity |
Bale: 37.911 m³ Grain: 38.872,7 m³ |
|
Number of hatches |
6 |
|
Tank capacities |
Fuel oil: 1.445,4 m³ Diesel oil: 224,8 m³ Lub oil: 139,7 m³ Fresh water: 275,5 m³ Water ballast: 9.866,0 m³ |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each |
|
ISM & commercial manager |
Navigation Maritime Bulgare Navibulgar House bul Primorski 1 9000 Varna Bulgaria |
|
Registered owner |
Lyulin Maritime Ltd. Care of Navigation Maritime Bulgare Navibulgar House, bul Primorski 1 9000 Varna Bulgaria |
|
Latest data adjustment |
13 March 2023 |
