| Westerschelde 05 November 2011 |
 |
| Westerschelde 05/11/11 |
|
Name |

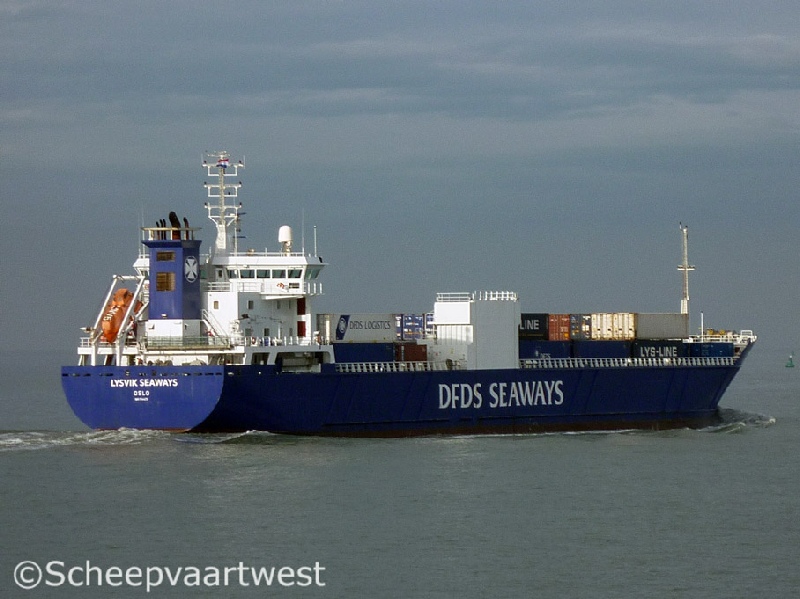

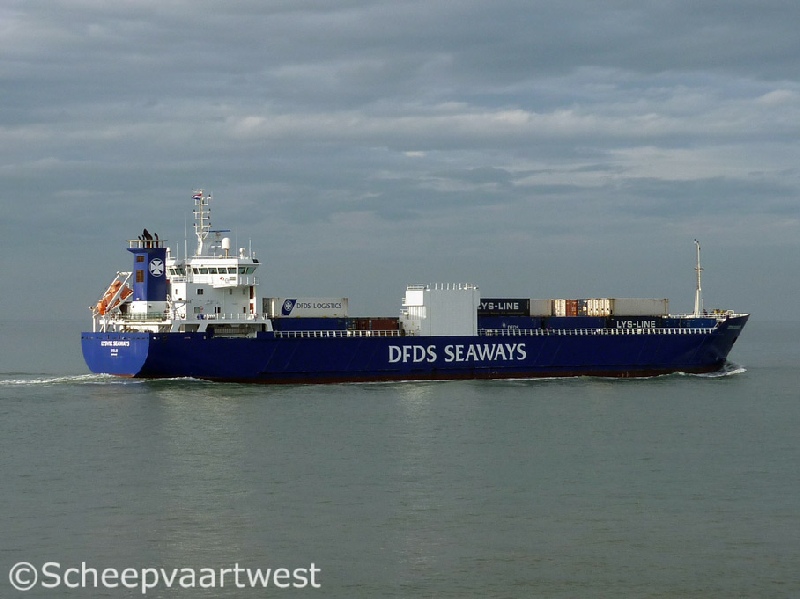

LYSVIK SEAWAYS |
|
Previous names |
1998 - 02.09.2010 Lysvik |
|
Type |
General Cargo |
|
IMO-number |
9144251 |
|
Call sign |
LAYV5 |
|
Flag |
Norway |
|
Previous flags |
1998 - 2003 Norway 2003 - 2003 Denmark |
|
Port of registry |
Oslo |
|
GT |
7.409 t |
|
DWT |
5.175 t |
|
NT |
4.568 t |
|
Light ship |
4254 t |
|
Number of 20ft containers |
160 |
|
Reefer points |
30 |
|
Length |
129,00 m overall 122,68 m between perpendiculars |
|
Breadth |
18,03 m extreme |
|
Draught |
6,613 m |
|
Depth |
12,25 m moulded |
|
Speed |
16,0 knots |
|
Built |
1998 |
|
Keel laid |
10.03.1997 |
|
Launch date |
29.04.1998 |
|
Date of completion |
01.11.1998 |
|
Builder |
ABG Shipyard Ltd. |
|
Yard number |
153 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Trans. bulkheads |
4 |
|
Main engine |
1x Wärtsilä NSD 6L46C diesel engine - 8.560 bhp / 6.300 kW at 500 rpm |
|
Propeller |
1x Controllable pitch - 4 blades diameter 4,5 m at 135 rpm Builder: Wichmann PR 130/4H |
|
Boilers |
1x Auxiliary boiler, composite - AQ16 |
|
Shaft generator |
1.000 kW |
|
Diesel generators |
3x SCANIA DSI 145M diesel engines each 463 bhp / 345 kW at 1.500 rpm driving 3 main Van Kaick generators each 400 kVA |
|
Bow thruster |
1x Brunvoll FU-63-LTC-1750 - 600 kW |
|
Hatchways |
2x Hatch 20,0 x 12,50 m each max. 3,5 t/m² |
|
Cargo capacity |
Grain: 11.271 m³ / 398.268 ft³ |
|
Deck area |
4.070 m² |
|
Max. load |
5 t/m² Tanktop / main deck: 3,5 t/m² |
|
Tank capacities |
Fuel oil: 450 m³ Gas oil: 35 m³ Water ballast: 3.402 m³ Fresh water: 56 m³ |
|
Cargo elevator |
2x SWL 10,0 t each |
|
Manager |
DFDS Logistics Rederi AS |
|
Previous manager |
1998 - 2006 Lys-Line AS |
|
Operator |
DFDS Seaways |
|
Owner |
DFDS Logistics Rederi AS |
|
Previous owners |
1998 - 2006 Lys-Line AS |
