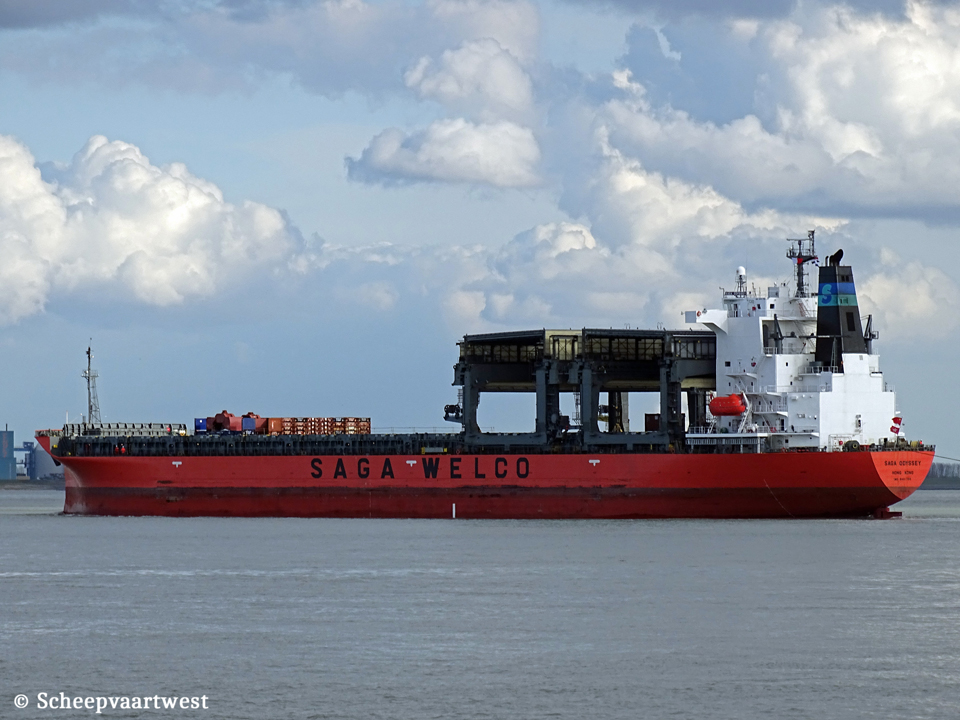

| Westerschelde 24 February 2018 |
|
Name |
SAGA ODYSSEY |
|
Type |
General cargo ship - Open hatch with travelling gantry cranes Adventure class |
|
IMO-number |
9401788 |
|
Call sign |
VRDU9 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.758 t |
|
DWT |
46.550 t |
|
NT |
14.440 t |
|
Light displacement |
11.241 t |
|
Number of 20ft containers |
On deck: 400 In hold: 360 Total: 760 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,58 m extreme |
|
Draught |
Summer: 11,82 m |
|
Depth |
16,40 m |
|
Speed |
Max: 14,9 knots |
|
Built |
2008 |
|
Keel laid |
17/11/2005 |
|
Launch date |
18/03/2008 |
|
Date of completion |
02/05/2008 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10480 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 13 Longitudinal: 2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7RTA52 - 2 stroke 7 cylinder 520 x 1.800 mm combustion engine 9.510 kW / 12.930 hp at 129,0 rpm Builder: Wärtsilä NSD Switzerland Ltd. |
|
Propellers |
1x Fixed pitch propeller Builder: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, composite Builder: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Daihatsu 6DK-20 main diesel generatorsets |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset |
|
Number of hold |
10 |
|
Cargo hold capacity |
Grain: Hold 1: 3.607 m³ / 127.380 ft³ Hold 2: 5.099 m³ / 180.069 ft³ Hold 3: 5.659 m³ / 199.846 ft³ Hold 4: 5.659 m³ / 199.846 ft³ Hold 5: 5.659 m³ / 199.846 ft³ Hold 6: 5.659 m³ / 199.846 ft³ Hold 7: 5.659 m³ / 199.846 ft³ Hold 8: 5.659 m³ / 199.846 ft³ Hold 9: 5.659 m³ / 199.846 ft³ Hold 10: 4.913 m³ / 173.501 ft³ Total : 64.458 m³ / 1.879.872 ft³ Bale: 53.232 m³ |
|
Number of hatches |
10 |
|
Tank capacities |
Ballast: 16.475 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Cargo gear |
2x Travelling gantry cranes with weather protection - SWL 42,0 t each |
|
Commercial manager |
Saga Welco AS Tollbodgaten 22 3111 Tonsberg Norway |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Saga Shipholding Norway AS Tenvikveien 373-375 3140 Notteroy Norway |
|
Latest data adjustment |
17 March 2023 |
