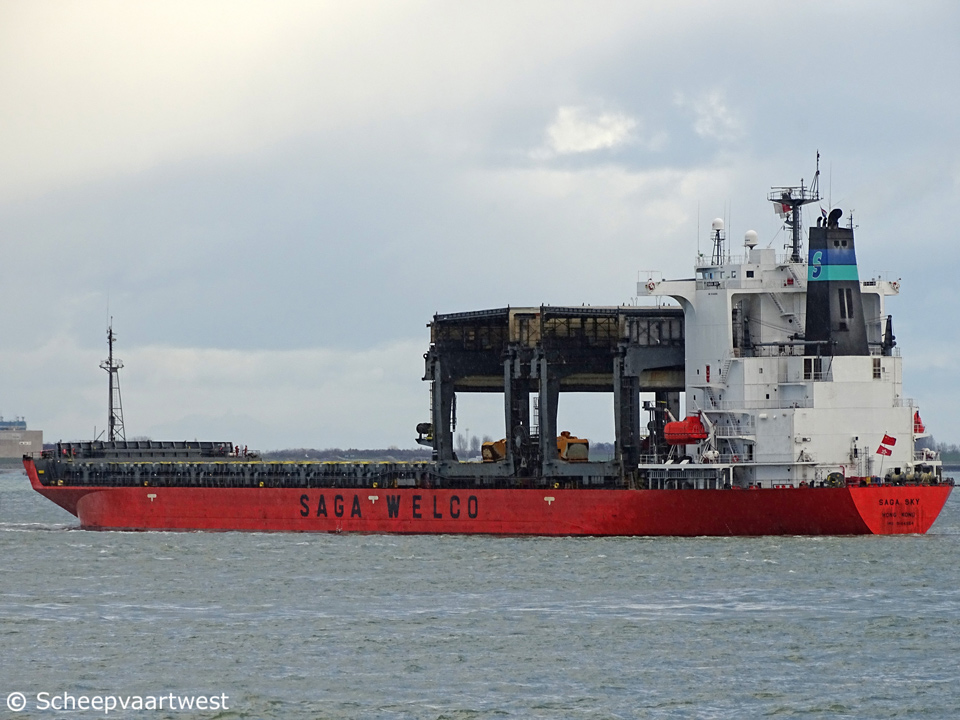

Westerschelde 29 November 2017 |
|
Name |
SAGA SKY |
|
Type |
General Cargo (single deck) - Tide Class - Gantry crained open hatch |
|
IMO-number |
9144354 |
|
Call sign |
VRYB8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.381 t |
|
DWT |
Summer: 47.034 t |
|
NT |
14.155 t |
|
Number of 20ft containers |
On deck: 560 In holds: 1.128 Total: 1.688 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,57 m extreme |
|
Draught |
11,82 m |
|
Depth |
16,40 m |
|
Speed |
Max.: 17,1 knots Service: 14,5 knots |
|
Built |
1996 |
|
Keel laid |
04.10.1995 |
|
Launch date |
14.01.1996 |
|
Date of completion |
28.03.1996 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10197 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 13 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 7RTA52 - 2 stroke 7 cylinder diesel engine 8.952 kW |
|
Propellers |
1x Fixed mono-block propeller |
|
Boilers |
1x Sanwa auxiliary boiler, composite GCS-22 |
|
Generators |
3x Daihatsu 6DL-22 main diesel generatorsets each 700 kW |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset |
|
Number of holds |
10 |
|
Cargo hold capacity |
Hold 1: 3.513 m³ / 124.060 ft³ Hold 2: 4.979 m³ / 175.832 ft³ Hold 3: 5.525 m³ / 195.114 ft³ Hold 4: 5.525 m³ / 195.114 ft³ Hold 5: 5.525 m³ / 195.114 ft³ Hold 6: 5.525 m³ / 195.114 ft³ Hold 7: 5.525 m³ / 195.114 ft³ Hold 8: 5.525 m³ / 195.114 ft³ Hold 9: 5.525 m³ / 195.114 ft³ Hold 10: 4.779 m³ / 168.769 ft³ |
|
Tank capacities |
16.185,5 m³ |
|
Cargo gear |
2x Travelling gantry cranes with weather protection - SWL 40,0 t each |
|
Crew size |
27 |
|
Manager |
Anglo-Eastern Ship Management Ltd. |
|
Previous managers |
1996 - 2002 Patt Manfield & Co Ltd. |
|
Operator |
Saga Welco |
|
Registered owner |
Saga Shipholding (Norway) AS Notteroy |
|
Previous owners |
1996 - 2002 Seven Venus Corporation |
|
Latest data adjustment |
31 December 2017 |
