| Westerschelde 17 January 2018 |
|
Name |

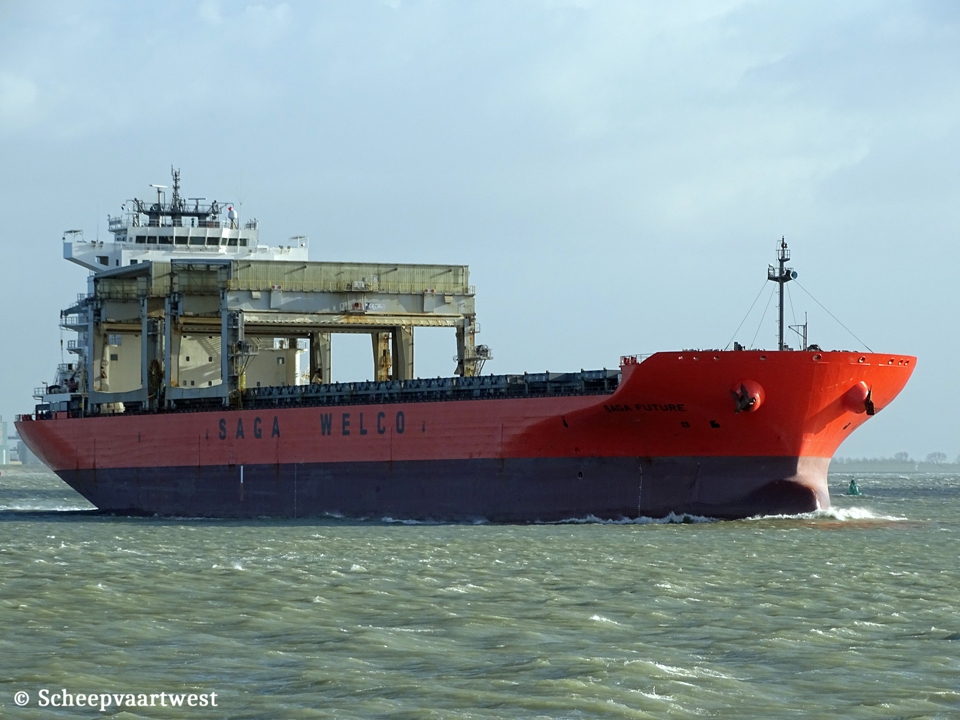

SAGA FUTURE |
|
Type |
General dry cargo - Single deck Future2 Class |
|
IMO-number |
9613836 |
|
Call sign |
VRKX8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
37.499 t |
|
DWT |
55.596 t |
|
NT |
15.791 t |
|
Light ship |
14.450 t |
|
Number of 20ft containers |
On deck: 618 In holds: 1.376 Total: 1.994 |
|
Length |
199,90 m overall 191,20 m between perpendiculars |
|
Breadth |
32,28 m extreme |
|
Draught |
Summer: 13,32 m |
|
Keel to mast end |
52,70 m |
|
Depth |
19,50 m |
|
Speed |
Max: 14,5 knots |
|
Built |
2012 |
|
Keel laid |
26/04/2012 |
|
Launch date |
30/06/2012 |
|
Date of completion |
15/10/2012 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Geoje South Korea |
|
Yard number |
1218 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x STX/MAN-B&W 5S60ME-C - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 9.560 kW / 12.998 hp at 92,0 rpm |
|
Propellers |
1x Fixed pitch mono-bock propeller |
|
Boilers |
1x Auxiliary boiler, composite (composite boiler) |
|
Generators |
2x Hyundai/Himsen 6H21/32 main diesel generatorsets 1x Hyundai/Himsen 5H21/32 main diesel generatorset |
|
Emergency generator |
1x Cummins 6CT-8.3-D(M) diesel generatorset |
|
Bow thruster |
1x Kawasaki KT-157B5 - 1.150 kW |
|
Number of holds |
10 |
|
Cargo hold capacity |
Hold 1: 3.902 m³ / 137.797 ft³ Hold 2: 5.922 m³ / 209.151 ft³ Hold 3: 7.148 m³ / 252.439 ft³ Hold 4: 7.148 m³ / 252.439 ft³ Hold 5: 7.148 m³ / 252.439 ft³ Hold 6: 7,148 m³ / 252.439 ft³ Hold 7: 7.148 m³ / 252.439 ft³ Hold 8: 7.148 m³ / 252.439 ft³ Hold 9: 6.508 m³ / 209.151 ft³ Hold 10: 5.235m³ / 184.900 ft³ Total: 64.458 m³ / 2.276.323 ft³ |
|
Number of hatches |
10 |
|
Tank capacities |
Ballast: 18.630,3 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 84 mm |
|
Cargo gear |
2x Traveling gantry cranes with weather protection each SWL 42,0 t |
|
Commercial manager |
Saga Welco AS Tollbodgaten 22 3111 Tonsberg Norway |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre 19, Wang Chiu Road, Kowloon Bay Kowloon, Hong Kong - China |
|
Registered owner |
Saga Shipholding (Norway) AS Tenvikveien 373-375 3140 Notteroy Norway |
|
Latest data adjustment |
04 June 2024 |
