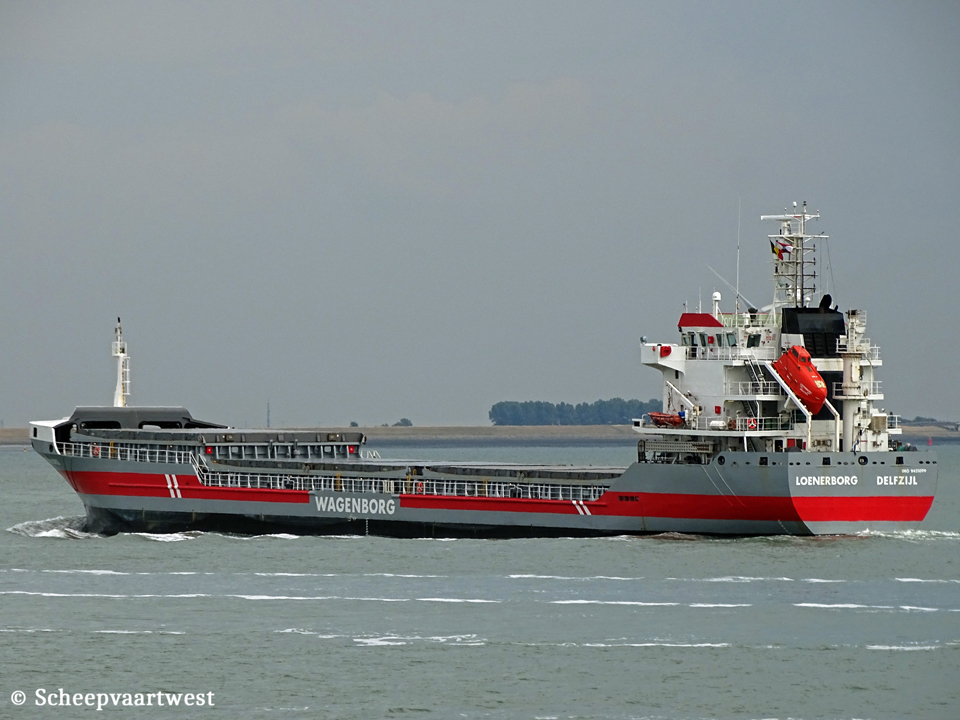

Loenerborg IMO 9421099 01
Westerschelde 30 June 2017


Name

LOENERBORG

Previous names

12/2008 - 02/2017 Loenerdiep

02/2017 - 04/2018 Loenerborg

04/2018 - 05/2018 Manisa Kate

Type

Multi-purpose dry cargo ship - Strengthened for heavy cargo

Single decker

IMO-number

9421099

Call sign

PCHH

Flag

delfzijl

Port of registry

The Netherlands

Previous flags

12/2008 - 07/2011 The Netherlands, Groningen - Call sign: PBON

07/2011 - 02/2017 Liberia, Monrovia - Call sign: A8ZO8

GT

5.598 t

DWT

Summer: 7.600 t

DWCC

Summer: 7.700 t

NT

2.883 t

Light ship

2.868 t

Length

108,24 m overall

103,90 m between perpendiculars

Breadth

18,47 m moulded

Draught

Max: 7,01 m

Keel to mast end

54,00 m

Air draft

28,50 m in ballast

Freeboard

2.005 mm

Depth

9,00 m moulded

Speed

11,5 knot

Built

2008

Keel laid

18/10/2007

Launch date

16/07/2008

Date of completion

12/11/2008

Builder

Nanjing Huatai Shipyard Co., Ltd.

Nanjing

China

Yard number

5406

Hull material

Steel

Hull type

Double skinned

Continuous decks

1

Main engine

1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 3.000 kW / 4.076 hp at 1.800 rpm

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 208 rpm

Boilers

1x CHF 78,70 m² - 6,0 bar

Shaft generator

1x 450 kVA - 360 k

Generators

2x Main diesel generatorsets each 331 kVA - 265 kW - 380 hp

Emergency generator

1x Diesel generatorset 331 kVA - 265 kW - 425 hp

Bow thruster

1x 280 kW

Number of holds

3x Fully open hatch, box shaped and double skinned

Hold 1: 17,50 x 15,20 x 11,40 m

Hold 2: 25,90 x 15,20 x 9,20 m

Hold 3: 25,20 x 15,20 x 9,20 m

Total capacity of holds

Bale/Grain: 10.291,5 m³- 360.202 ft³

Number of hatches

3

Hatch 1: 17,50 x 15,20 m

Hatch 2: 25,90 x 15,20 m

Hatch 3: 25,20 x 15,20 m

Max Permitted loads

Tanktop: 15,0 t/m²

Weatherdeck: 2,2 t/m²

Tank capacities

HFO 293 m³

MGO: 69 m³

Water ballast: 2.200 m³

Fresh water: 100 m³

Manager

Wagenborg Shipping B.V.

Delfzijl

The Netherlands

Previous managers

12/2008 - 02/2017 Feederlines B.V., Groningen - The Netherlands

Owner

Loenerborg B.V.

Delfzijl

The Netherlands

Previous owners

12/2008 - 02/2017 Beheermaatschappij Loenerdiep B.V., Groningen - The Netherlands

Latest data adjustment

19 July 2024
