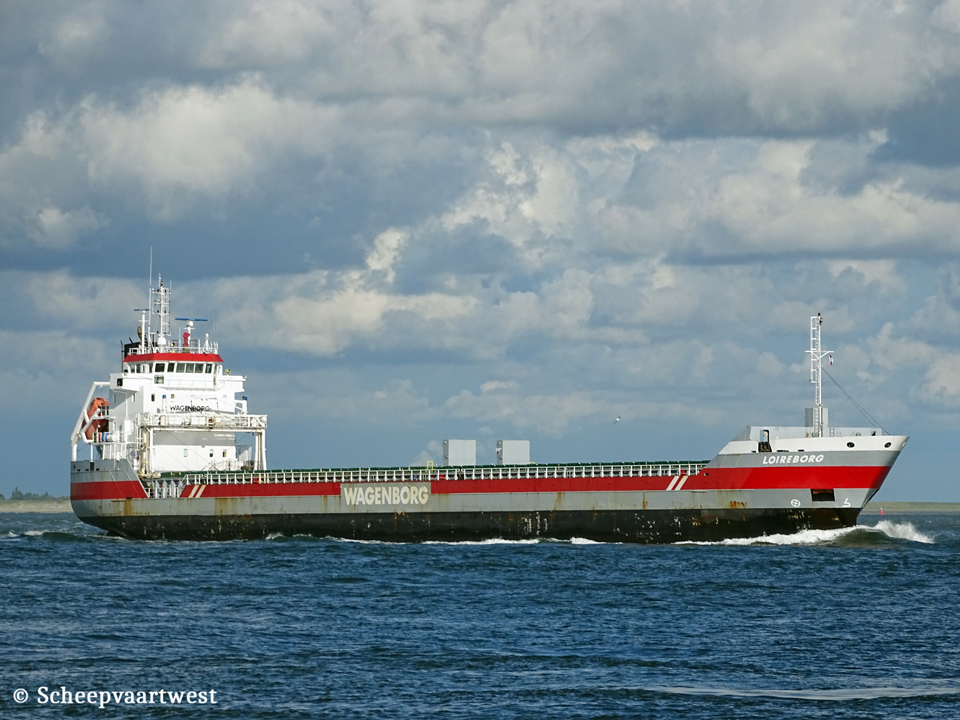

Westerschelde 24 July 2017 |
 |
 |
|

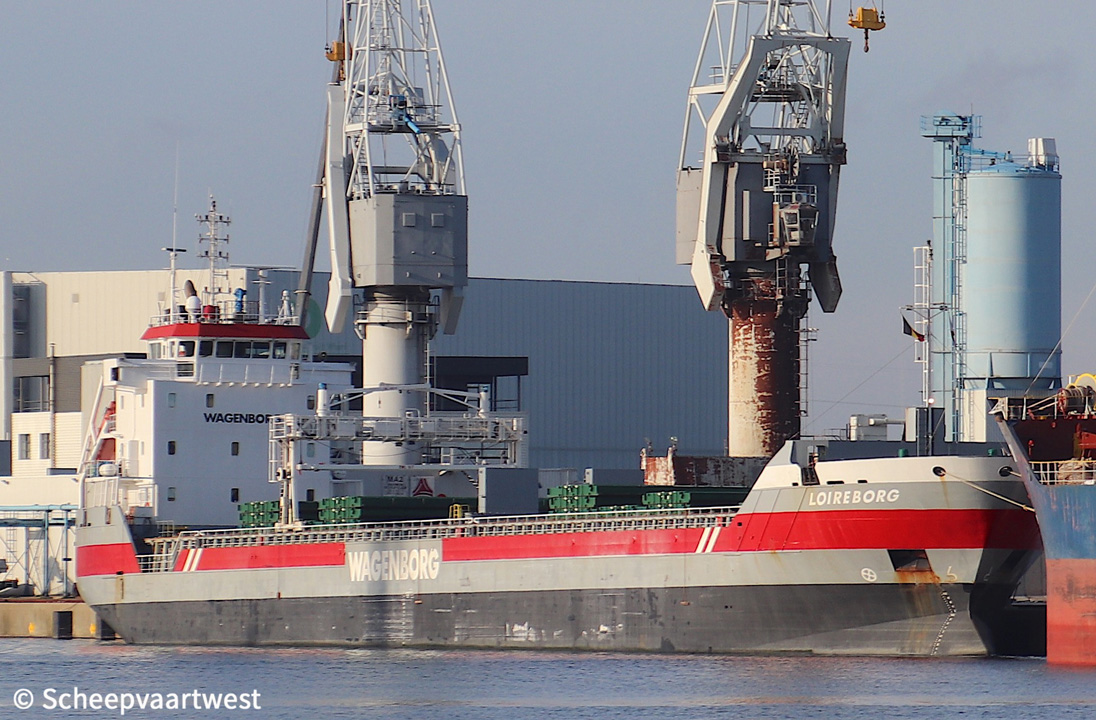

| Westerschelde 20/07/18 | Antwerpen 18/12/19 | |
|
Name |
LOIREBORG |
|
Type |
Multi-purpose dry cargo carrier |
|
IMO-number |
9399404 |
|
Call sign |
PHPT |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
4.695 t |
|
DWT |
Summer: 7.350 t |
|
DWCC |
Summer: 6.900 t |
|
NT |
2.558 t |
|
Number of 20ft containers |
304 |
|
Length |
122,34 m overall 115,97 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
Summer: 6,50 m Winter: 6,36 m |
|
Air draft |
32,40 m in ballast |
|
Freeboard |
1.613 mm |
|
Depth |
8,10 m moulded |
|
Speed |
13,0 knots |
|
Built |
2008 |
|
Keel laid |
20/11/2006 |
|
Launch date |
13/05/2008 |
|
Date of completion |
04/07/2008 |
|
Builder |
Royal Niestern Sander BV Delfzijl The Netherlands |
|
Yard number |
836 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm Built: 2008 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Shaft generator |
1x 344 kVA - 275 kW |
|
Generators |
1x Diesel generatorset 120 kVA - 96 kW - 272 hp 2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp |
|
Bow thruster |
350 kW, forward |
|
Number of holds |
2x Fully box and double skinned Hold 1: 45,18 x 11,71 x 8,98 m Hold 2: 44,48 x 11,71 x 8,98 m |
|
Cargo hold capacity |
Grain: 9.163 m³ / 323.779 ft³ |
|
Hold ventilation |
15 air changes per hour basis empty holds Both holds fitted with dehumidifier system |
|
Number of hatches |
2x Fully open hatches Hatch 1: 45,18 x 11,71 m Hatch 2: 44,48 x 11,71 m |
|
Hatch type |
Rodenstaal steel pontoon hatches |
|
Tank capacities |
HFO: 363 m³ MGO: 89 m³ Water ballast: 3.239 m³ Fresh water: 68 m³ |
|
Manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Scheepvaartonderneming Loireborg BV Delfzijl The Netherlands |
|
Previous owners |
07/2008 - 03/2009 Wagenborg Capital B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
18 August 2024 |
