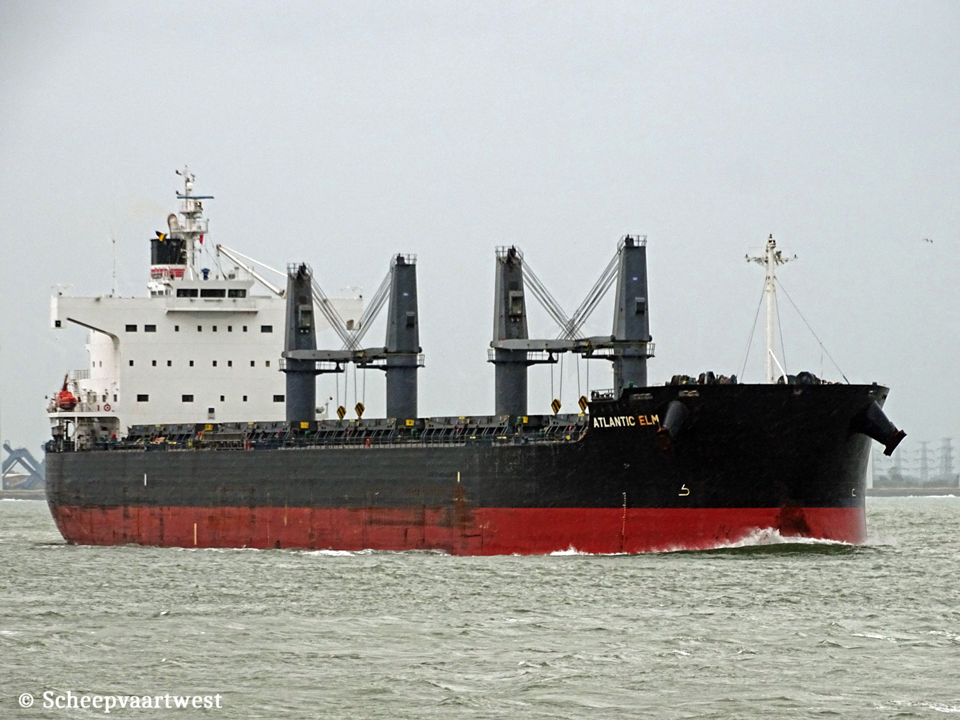

| Westerschelde 28 July 2017 |
 |
|

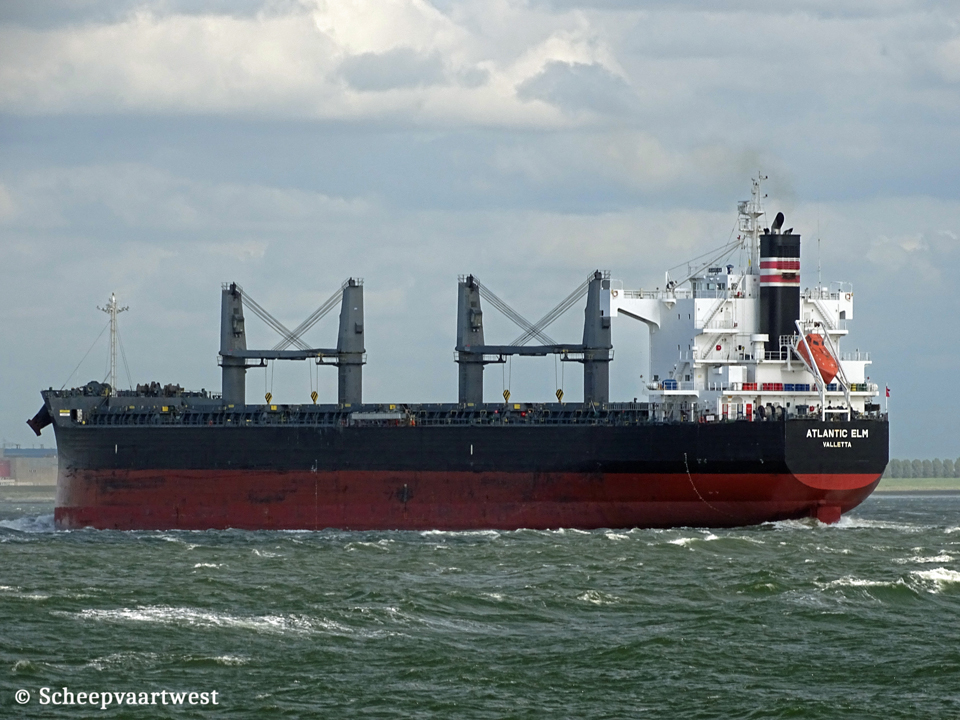

| Westerschelde 20/07/17 | |
|
Name |
ATLANTIC ELM |
|
Type |
Geared / Grab fitted bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9558244 |
|
Call sign |
9HA3054 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GRT |
32.376 t |
|
DWT |
58.028 t |
|
NRT |
19.458 t |
|
Light ship |
9.786 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,83 m |
|
Moulded L x B x D |
185,60 x 32,26 x 18,00 m |
|
Registered L x B x D |
185,78 x 32,26 x 18,00 m |
|
Keel to mast end |
49,23 m |
|
Freeboard |
Summer: 5.225 mm |
|
Depth |
18,00 m moulded |
|
Speed |
Max: 16,0 knots Service: 14,5 knots |
|
Built |
2012 |
|
Keel laid |
08/09/2010 |
|
Launch date |
27/03/2012 |
|
Date of completion |
06/06/2012 |
|
Builder |
Tsuneishi Heavy Industries (Cebu), Inc. Balamban Philippines |
|
Yard number |
168 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.400 kW / 11.421 hp at 113,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 490 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler- 0,70 MPa Evaporation: 2,57 t/th Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 1.900 kVA |
|
Cargo hold capacity |
Bale: 70.122 m³ Grain: 72.689 m³ |
|
Tank capacities |
Fuel oil: 2.388 m³ Fresh water: 313 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Commercial manager |
NYK Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku Tokyo, 100-0005 Japan |
|
ISM manager |
NYK Shipmanagement Pte Ltd. 15-01, HarbourFront Tower One 1, Harbourfront Place Singapore 098633 Republic of Singapore |
|
Registered owner |
Nyk Bulkship Atlantic NV Avenue Building Noorderplaats 7, 3rd floor B-2000 Antwerpen Belgium |
|
Latest data adjustment |
08 August 2024 |
