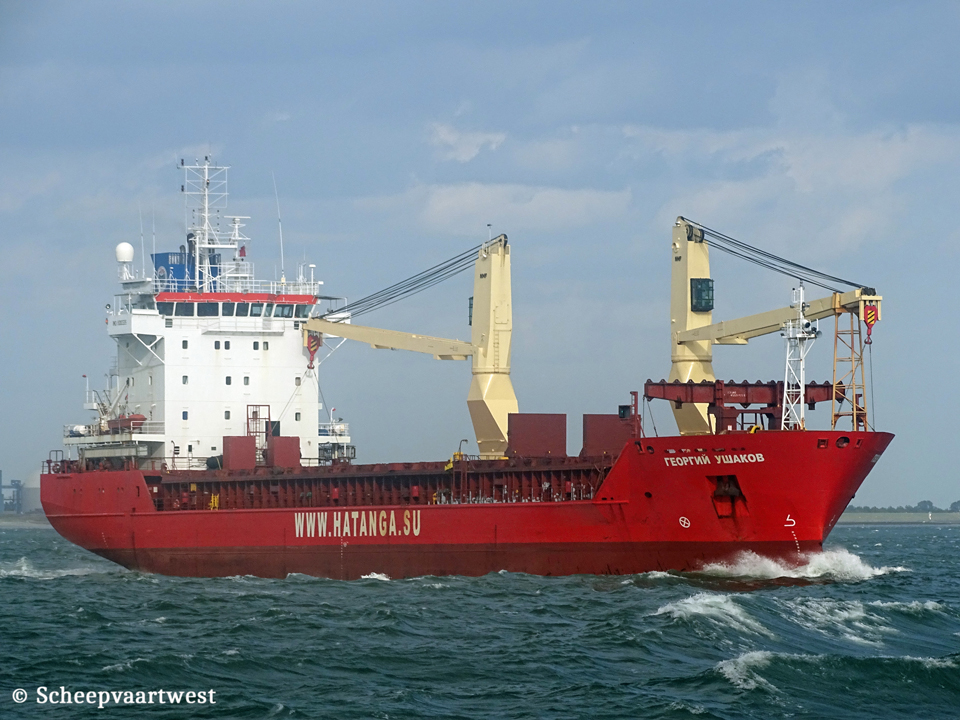

Westerschelde 07 June 2017 |
Name |
GEORGIY USHAKOV |
Russian name |
ГЕОРГИЙ УШАКОВ |
Previous names |
2001 - 2011 BBC Chile 2011 - 2013 Atlantic Islands |
Type |
Multi-Purpose dry cargo ship |
IMO-number |
9210335 |
Call sign |
UHEG |
Flag |
Russian Federation |
Port of registry |
Murmansk (МУРМАНСК) |
Previous flags |
2001 - 2013 Antigua & Barbuda, St. John's - Call sign: V2AK6 |
GT |
6.204 t |
DWT |
7.616 t |
NT |
2.900 t |
Displacement |
7.616 t |
Number of 20ft containers |
Hold 1: 33 Hold 2: 168 Deck: 176 Total: 377 |
Length |
107,78 m overall 102,24 m registered |
Breadth |
18,20 m |
Draught |
7,50 m |
Forecastle |
9,54 m |
Poop |
15,00 m |
Freeboard |
2.612 mm |
Depth |
10,10 m moulded |
Speed |
14,3 knots |
Build |
2001 |
Keel laid |
27/09/2000 |
Launch date |
15/12/2000 |
Date of completion |
02/2001 |
Builder |
Stocznia Gdanska Grupa Stoczni Gdynia S.A. ul. Doki 1 80 958 Gdansk Republic of Poland |
Yard number |
8203/10 |
Hull material |
Shipbuilding steel (standard) |
Hull type |
Double bottom, continuous from peak to peak bulkhead |
Watertight bulkheads |
5 |
Continuous decks |
2 |
Main engine |
1x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.840 kW at 750 rpm Year of Manufacture: 2000 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
Propellers |
1x Controllable pitch propeller - aft at 135 rpm 4 Blades |
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating Surface: 38,4 m² Year of Manufacture: 2000 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 77,0 m² Year of Manufacture: 2000 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany |
Electric installations |
1x Plant 380/220 V - 390 kVA 1x Plant 380/220 V - 390 kVA 1x Plant 380 V - 530 kVA 1x Plant 380 V - 210 kVA |
Shaft generator |
1x 530 kVA |
Generators |
2x Scania Type DI 14 diesel engines each 334 kW connected with generators each 390 kVA |
Emergency generator |
1x Scania Type DI 9 diesel engine 196 kW connected with generator 210 kVA |
Compressed air receivers |
2x Receivers each1.500 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar |
Bow thruster |
1x Transverse thruster ULSTEIN - 350 kW, forward at 1.500 rpm |
Number of holds |
2 |
Cargo hold capacity |
Grain / Bales: 9.904 m³ |
Number of hatches |
2 Hatch 1: 44,50 m x 15,93 m Hatch 2: 19,95 m x 15,93 m |
Tank capacities |
Fuel oil: 421 m³ Water ballast: 2.591 m³ |
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
Cargo gear |
2x Electric hydraulic deck cranes- SWL 80,0 t each |
Manager |
JSC Khatanga Maritime Trade Port 647460, Krasnoyarsk Region, Khatanga, 42 Sovetskaya str Hatanga Russia |
Owner |
Khatanga Maritime Trade Port Khatanga Russia |
Latest data adjustment |
25 October 2024 |
