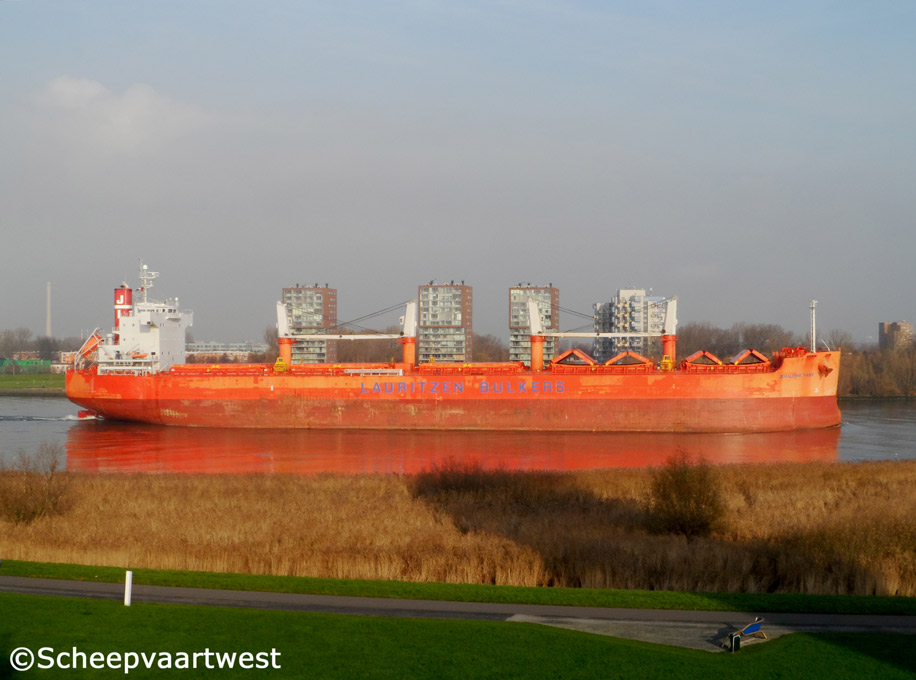

Geraldine Manx 01

Spijkenisse, The Netherlands  03 December 2013



Name

GERALDINE MANX

Type

Supramax bulk carrier - Strengthened for heavy cargo loading

Grabfitted

IMO-number

9496147

Call sign

2CQR9

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

32.354 t

Suez: 33.154,71 t

DWT

Summer: 58.058 t

Winter: 56.524 t

NT

19.458 t

Panama: 26.828 t

Suez: 30.782,44 t

Length

189,99 m overall

Breadth

32,26 m

Draught

Summer: 12,83 m

Moulded L x B x D

185,60 x 32,26 x 18,00 m

Registered L x B x D

185,78 x 32,26 x 18,00 m

Keel to mast

48,42 m

Freeboard

5.225 mm

Depth

18,00 m moulded

Speed

13,5 knots loaded

14,0 knots ballast

Built

2010

Keel laid

06.10.2009

Launch date

28.11.2009

Date of completion

25.01.2010

Builder

Tsuneishi Group (Zhoushan) Shipbuilding Inc.
China

Yard number

068

Hull material

Steel

Main engine

1x MITSUI-MAN B&W D.E. 6S50MC-C2 - stroke single acting 6 cylinder 500 x 2;000 mm diesel engine - 8.400 kW at 113,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 490 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 2,0 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 1.900 kW

Number of holds

5

No. 1: 27,40 x 13,80 m (fwd) 24,00 m (aft)

No. 2: 28,20 x 24,00 m

No. 3: 27,40 x 24,00 m

No. 4: 27,40 x 24,00 m

No. 5: 27,40 x 24,00 m(fwd) 10,80 m(aft)

Cargo hold capacity

Grain / Bales:

Hold 1: 12.720,4 m³ / 12.092,0 m³

Hold 2: 15.378,0 m³ / 14.853,0 m³

Hold 3: 15.320,4 m³ / 14.848,0 m³

Hold 4: 15.384,8 m³ / 14.878,0 m³

Hold 5: 13.886,1 m³ / 13.450,0 m³

Total: 72.689,7 m³ / 70.121,0 m³

Number of hatches

5

Hatch 1: 17,60 x 17,00 m

Hatch 2,3,4,5: 21,06 x 18,60 m

Hatch type

End folding type

Tank capacities

Fuel oil: 2.288 m³ / 2.210 t

Fresh water: 313 m³

Water ballast: 16.437 m³

Cargo gear

4x Mitsubishi hydraulic deck crane - SWL 30,0 t each

Grabs: Fitted - 4x 12 m³ each

Manager

Thome Ship Management Pte., Ltd.

Commercial manager

LTU Management Ltd.

Operator

Lauritzen Bulkers
Copenhagen
Denmark

Owner

LT Ugland Bulk (IOM) Ltd
Isle of Man
United Kingdom

Registered owner

Geraldine Marine Ltd.

Latest data adjustment

09 August 2014
