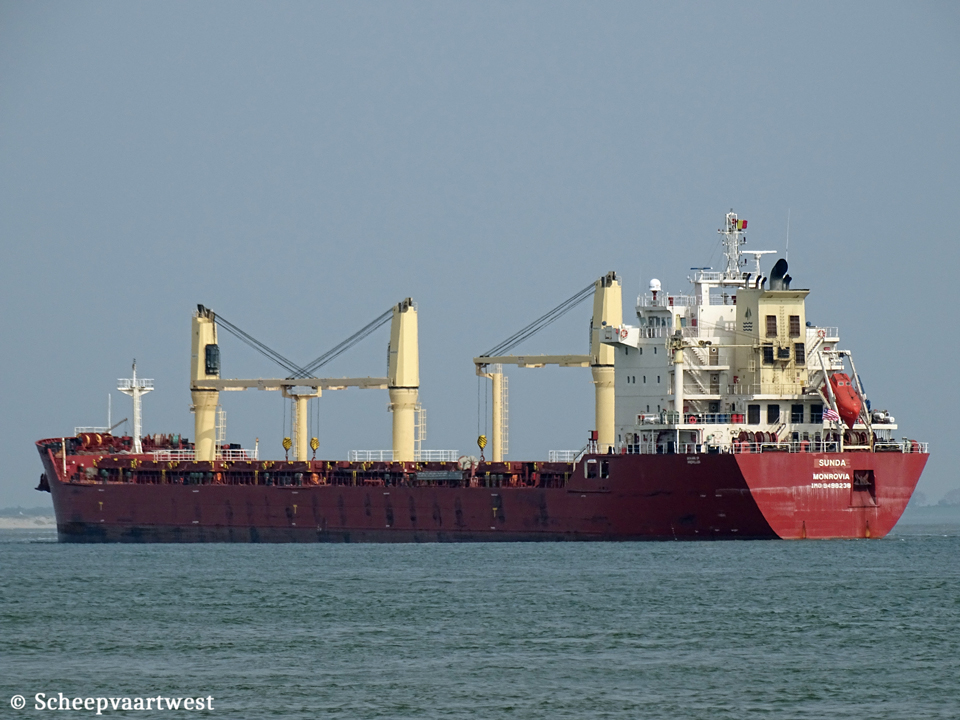

Sunda IMO 9498236 01
Westerschelde 25 May 2016


Name

SUNDA

Previous names

2010 - 12/2015 Emilie

Type

Bulk carrier

IMO-number

9498236

Call sign

D5KB4

Flag

Liberia

Port of registry

Monrovia

GT

19.906 t

Suez: 20.753,21 t

DWT

Summer: 30.691,5 t

Winter: 29.791,6 t

NT

10.279 t

Suez: 18.160,14 t

Panama: 16.626 t

Length

186,00 m overall

178,80 m between perpendiculars

Breadth

23,75 m extreme

Draught

Summer: 10,41 m

Winter: 10,19 m

Keel to masthead

41,05 m

35,78 m in collapsed condition

Depth

14,60 m moulded

Build

2010

Keel laid

04/05/2010

Date of completion

09/11/2010

Builder

Shanhaiguan Shipbuilding Industry

Qinhuangdao

China

Yard number

027

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x MAN-B&W 6S46MC-C - 6 cylinder combustion engine 7.200 kW

Propellers

1

Number of holds

6

Hold #1: 19,20 m x Min 14,20 m / Max 20,00 m

Hold #2: 26,40 m x 23,70 m

Hold #3, #5: 26,40 m x 23,70 m

Hold #4: 23,20 m x 20,00 m

Hold #6: 20,80 m x Min 6,50 m MIN / Max 20,00 m

Cargo hold capacity

Grain:

Hold #1: 4.690,5 m³

Hold #2: 7.678,3 m³

Hold #3: 7.400,2 m³

Hold #4: 6.242,3 m³

Hold #5: 7.400,2 m³

Hold #6: 5.461,3 m³

Total: 38.872,8 m³

Number of hatches

6

Hatch #1: 10,40 m x 13,20 m

Hatch #2, #3, #5: 19,20 m x 17,4 m

Hatch #4: 16,20 m x 17,40 m

Hatch #6: 13,60 m x 17,40 m

Hatch cover type

MacGregor electro-hydraulic folding type

Max permitted loads

Tanktop: 20,0 t/m²

Deck: 2,5 t/m²

Number of pumps

2x Ballast pumps each 560 m³/h

Tank capacities

Ballast: 9.693 m³

Fuel oil: 1.176,4 m³

Cargo gear

3x Mac Gregor deck cranes - SWL 30,0 t each

Commercial manager

CANFORNAV Limited

800 Rene-Levesque Blvd. West Suite # 2300

Montreal, QC H3B 1X9

Canada

ISM manager

Seastar Shipmanagment Ltd.

Seastar House 6, Rizariou Street

Halandri 152 33 Athens

Greece

Registered owner

Blackbear Shipping Limited

11, Grigori Auxentiou Str., Centro Imperio, Office 102

4003, Mesa Geitonia

Limassol

Cyprus

Disponent owner

CANFORNAV Limited

11, Grigori Auxentiou Street Centro Imperio, 1st Floor/Office 102 Mesa Geitonia

4003 Limassol

Cyprus

Latest data adjustment

04 November 2024
