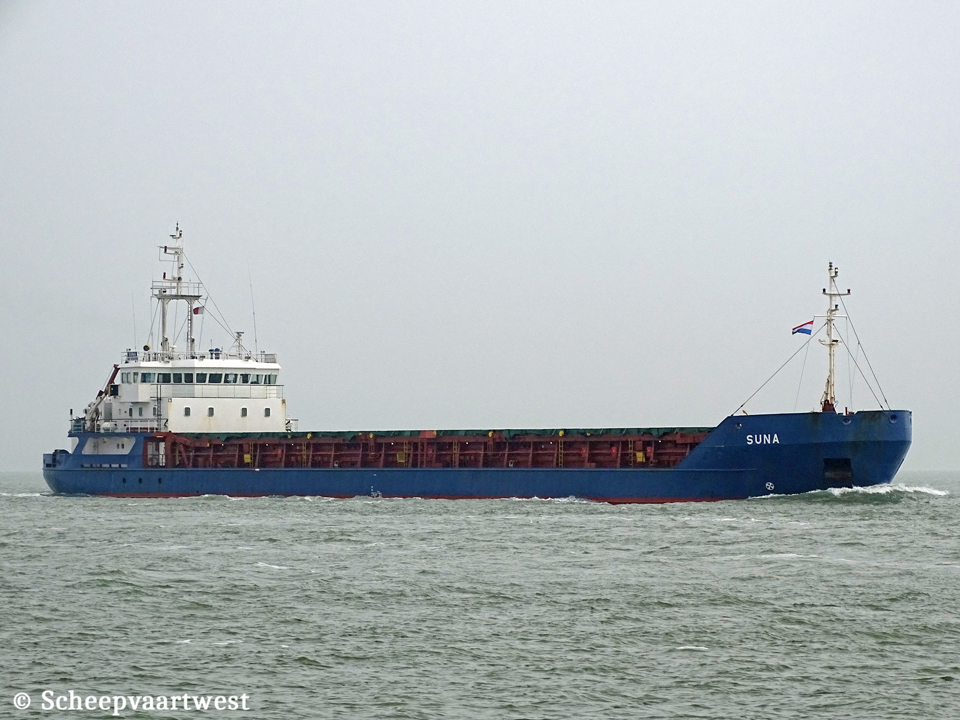

Westerschelde 25 January 2020 |
 |

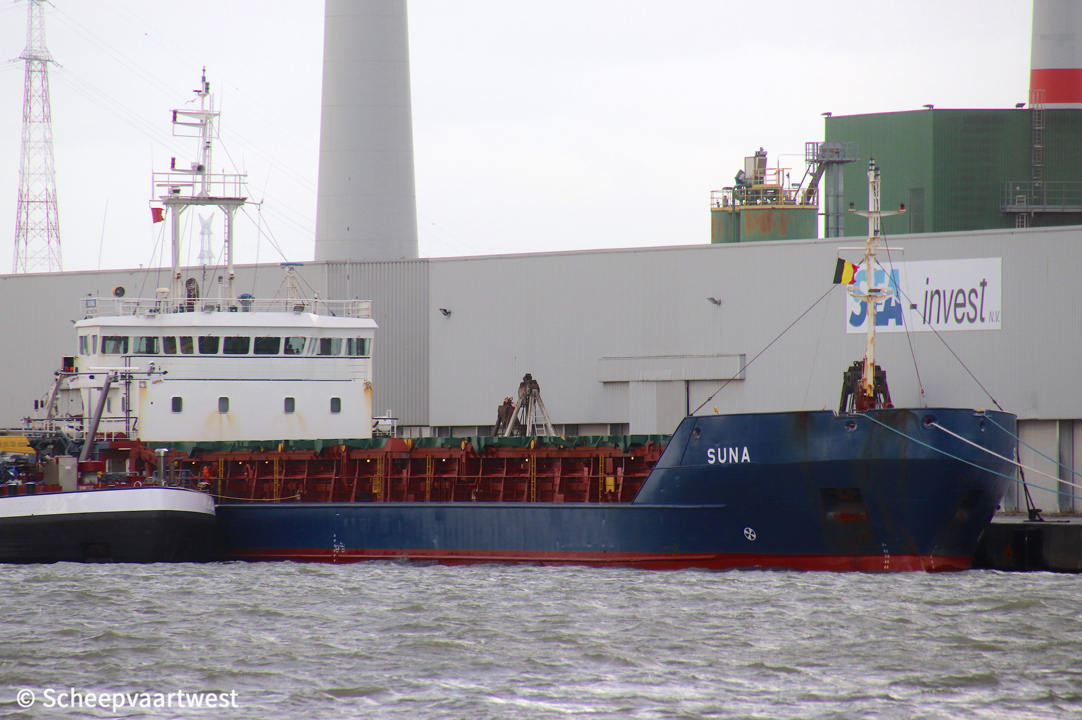

| Antwerpen 11/02/20 |
|
Name |
SUNA |
|
Type |
General cargo ship |
|
IMO-number |
9080986 |
|
Call sign |
3E3451 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
Russia, Saint-Petersburg - Call sign: UHXG 2016 - 2022 Antigua & Barbuda, St. John’s - Call sign: V2QR5 |
|
GT |
2.889 t registered |
|
DWT |
Summer: 4.143 t |
|
DWCC |
Summer: 3.950 t Winter: 3.850 t |
|
NT |
1.471 t registered |
|
Light ship |
1.488,5 t |
|
Displacement |
Summer: 5.631 t |
|
Number of 20ft containers |
150 |
|
Length |
96,00 m overall 93,00 m between perpendiculars |
|
Breadth |
13,40 m |
|
Draught |
Summer: 5,13 m Winter: 5,01 m |
|
Air draft |
26,30 m in ballast 15,30 m with mast lowered |
|
Depth |
6,90 m |
|
Speed |
Max: 11,00 knots Service: 8,5 knots |
|
Built |
1994 |
|
Keel laid |
09/08/1993 |
|
Date of completion |
10/02/1994 |
|
Builder |
Schiffswerft und Maschinenfabrik Cassens Emden Germany |
|
Yard number |
199 |
|
Hull material |
Steel |
|
Bulkheads |
2 |
|
Continuous decks |
1199 |
|
Main engine |
1x Krupp-MaK 8M332C - 4 stroke 8 cylinder 240 x 330 mm combustion engine 1.600 kW / 2.145 hp at 900 rpm |
|
Propellers |
1x Fixed pitch propeller 4 blades |
|
Generators |
2x Generatorsets each 200 kW 1x Generatorsets each 103 kW |
|
Bow thruster |
1x 180 kW / 245 hp |
|
Number of holds |
1x Box 63,70 x 10,40 x 7,63 m |
|
Cargo hold capacity |
185.400 ft³ / 5.250 m³ |
|
Number of hatches |
1 63,70 x 10,60 m |
|
Hatch cover type |
MC Gregor |
|
Pumps |
2x Ballast pumps each 160 m³/h |
|
Max. permitted loads |
Tanktop: 12,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
Ballast: 2.080 m³ MDO: 204 m³ Lube oil: 10,8 m³ Fresh water: 35,4 m³ Bilge tank: 26,2 m³ |
|
Lifting equipment |
1x Provision crane - SWL 1,54 t |
|
Crew |
Max: 11 |
|
Registered owner |
Suna Shipping Ltd. |
|
Latest data adjustment |
19 June 2022 |
