| Westerschelde 24 February 2017 |
|
Name |

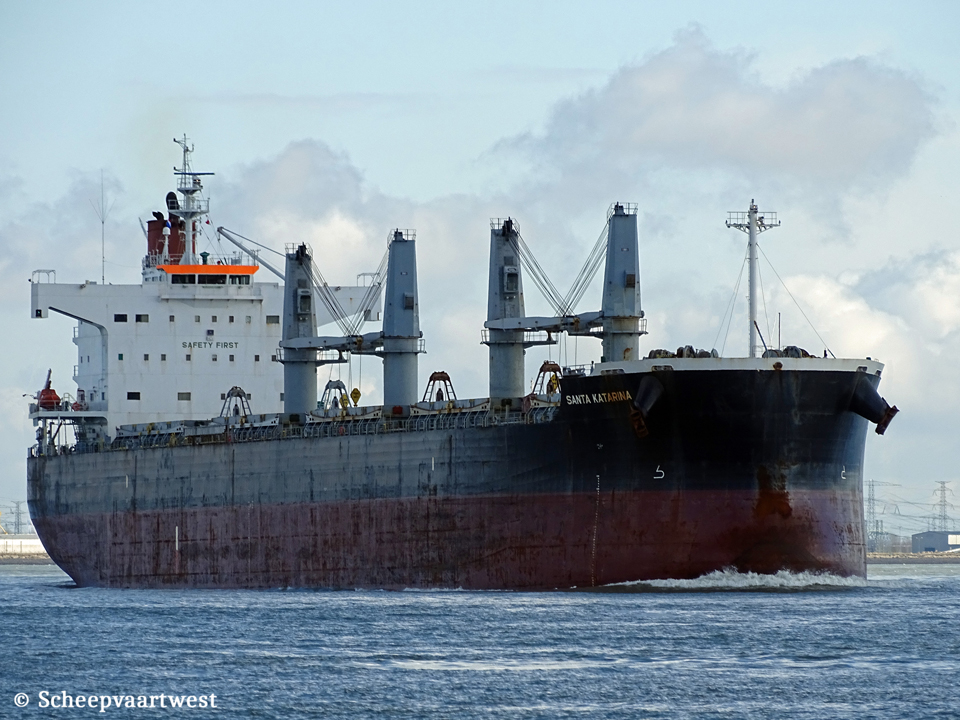

SANTA KATARINA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Supramax |
|
IMO-number |
9425930 |
|
Call sign |
3EVE8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
32.287 Suez: 33.083,10 |
|
DWT |
58.096 t |
|
NT |
19.458 Suez: 30.767,90 |
|
Displacement |
67.802 t |
|
Lightship |
9.706 t |
|
Length |
189,99 m |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,83 m |
|
Moulded L x B x D |
185,60 x 32,26 x 18,00 m |
|
Registered L x B x D |
185,78 x 32,26 x 18,00 m |
|
Keel to mast end |
47,85 m |
|
Freeboard |
Summer: 5.225 mm |
|
Depth |
18,00 m moulded |
|
Speed |
Max: 15,9 knots |
|
Build |
2010 |
|
Keel laid |
02/03/2010 |
|
Launch date |
24/08/2010 |
|
Date of completion |
05/11/2010 |
|
Builder |
Tsuneishi Heavy Industries (Cebu), Inc. Balamban Philippines |
|
Yard number |
126 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Mitsui 6S50MC - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.450 kW / 11.488 hp at 119,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,70 MPa Evaporation: 2,22 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 1.900 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 72.689 m³ Bale: 70.122 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.289 m³ Fresh water: 313 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each 4x Electro-hydraulic grabs each 12,0 m³ |
|
Manager |
Meiho Kaiun KK 1668-9, Kanoura, Hakata-cho, Imabari-shi, Ehime-ken, 794-2302, Japan |
|
Owner |
Meiho Kaiun Imabari Japan |
|
Renamed |
09/2020 Dioni Liberia, Majuro - Call sign: D5YC2 Registered owner: Victrix Shipping Corporation Manager: Olkas Shipping & Trading Co. Ltd. |
|
Latest data adjustment |
12 December 2024 |
