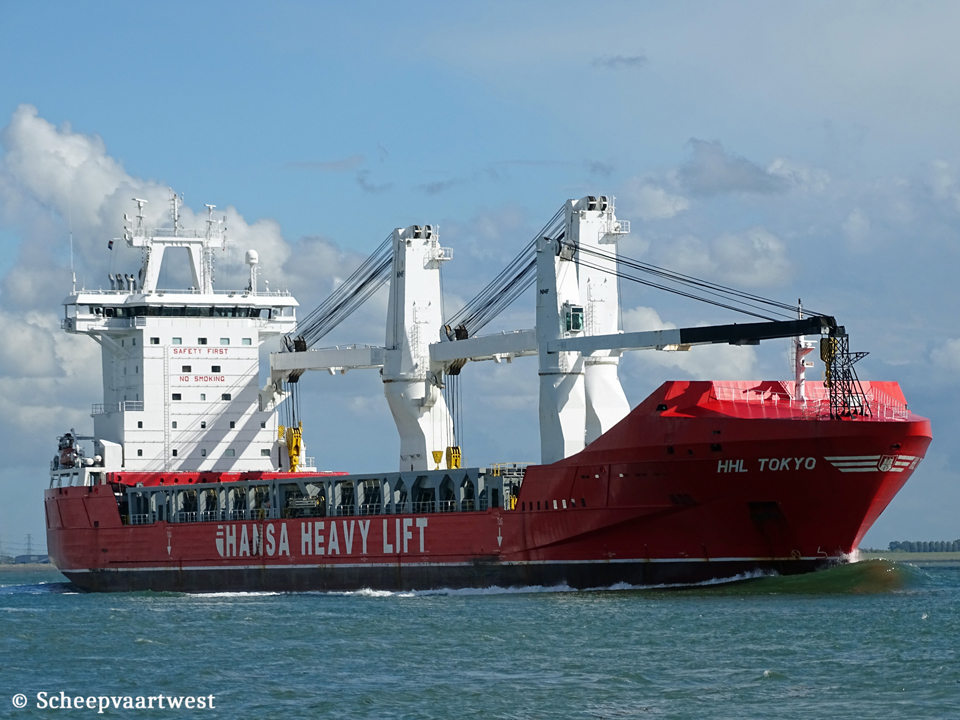

| Westerschelde 09 September 2017 |
|
Name |
HHL TOKYO |
|
Previous names |
28/06/2010 Keel laid Beluga Procession 26/09/2010 Launch as Beluga Tokyo |
|
Type |
Multi purpose dry cargo ship - Heavy Lift - Strengthened for heavy cargoes |
|
IMO-number |
9448346 |
|
Call sign |
V2FH9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
17.644 |
|
DWT |
19.450 t excl. tweendeck |
|
NT |
6.617 |
|
Number of 20ft containers |
912 |
|
Reefer points |
100 |
|
Length |
168,61 m overall 155,79 m between perpendiculars |
|
Breadth |
25,43 m extreme 25,20 m moulded |
|
Draught |
Summer: 9,50 m |
|
Depth |
13,85 m moulded |
|
Speed |
Max: 17,0 knots |
|
Build |
2011 |
|
Keel laid |
28/06/2010 |
|
Launch date |
26/09/2010 |
|
Date of completion |
04/05/2011 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. Shanghai China |
|
Yard number |
H1531A |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7L 58/64CD - 7 cylinder combustion engine 9.800 kW / 13.324 hp |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fire |
|
Shaft generator |
1x 1.200 kW |
|
Generators |
3x Caterpillar C32 ACERT main diesel generatorsets each 850 kW |
|
Emergency generator |
1x Sisu 645 DSBIG diesel generatorset 150 kW |
|
Bow thruster |
1x 800 kW |
|
Cargo hold capacity |
Bale & Grain: 26.337 m³ / 929.696 ft³ |
|
Hold ventilation |
Abt. 6x changes p/h |
|
Number of hatches |
Weather deck: No.1: 22,94 x 14,26 m No.2: 82,40 x 19,16 m Hydraulic folding type, combinable w/pontoons Tweendeck: No.1: 22,94 x 13,76 m No.2: 82,40 x 18,66 m |
|
Floor space |
Tanktop: Hold 1: 281 m² Hold 2: 1.332 m² Tweendeck: Hold 1: 281 m² Hold 2: 1.158 m² Weather deck: 2.200 m² |
|
Max permitted loads |
Weather deck hatch covers: 5,0 t/m² Tweendeck hatch covers: 3,5 t/m² Tanktop: 18,0 t/m² |
|
Tank capacities |
Ballast: 12.026,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Cargo gear |
3x NMF deck cranes (2 starboard, 1 portside.) - SWL 2x 700 t & 1x 1.18 t |
|
Manager |
Liberty Blue Shipmanagement GMBH & Co. KG, Leer Germany |
|
Previous managers |
05/2011 - 01/2019 Hansa Heavy Lift GmbH, Hamburg - Germany |
|
Registered owner |
Hansa Heavy Lift UG (haftungsbeschränkt) & Co. KG ms 'HHL Tokyo' Hamburg Germany |
|
Renamed |
03/2019 Paleisgracht The Netherlands, Amsterdam - Call sign: PCDA Owner: B.V. Firmanten Paleisgracht, Amsterdam - The Netherlands Manager: Spliethoff's Bevrachtingskantoor B.V., Amsterdam The Netherlands 01/2020 Paleisgracht The Netherlands, Amsterdam - Call sign: PCDA Owner: Rederij Paleisgracht, Amsterdam - The Netherlands Manager: Spliethoff's Bevrachtingskantoor B.V., Amsterdam The Netherlands |
|
Latest data adjustment |
15 December 2024 |
