Westerschelde 08 October 2019 |
 |
 |
 |
 |
|||

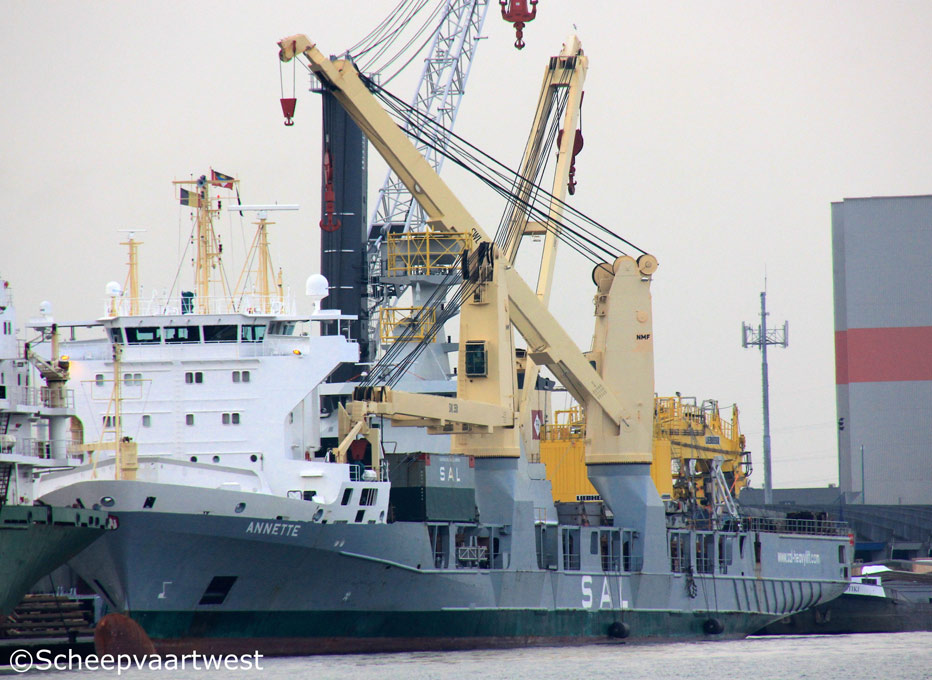

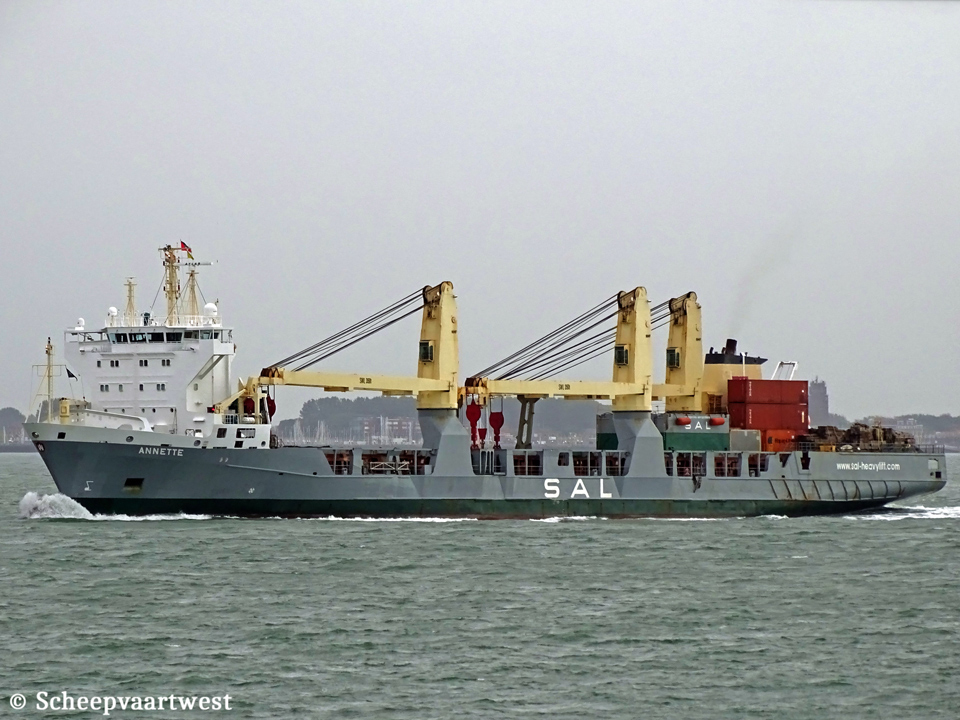

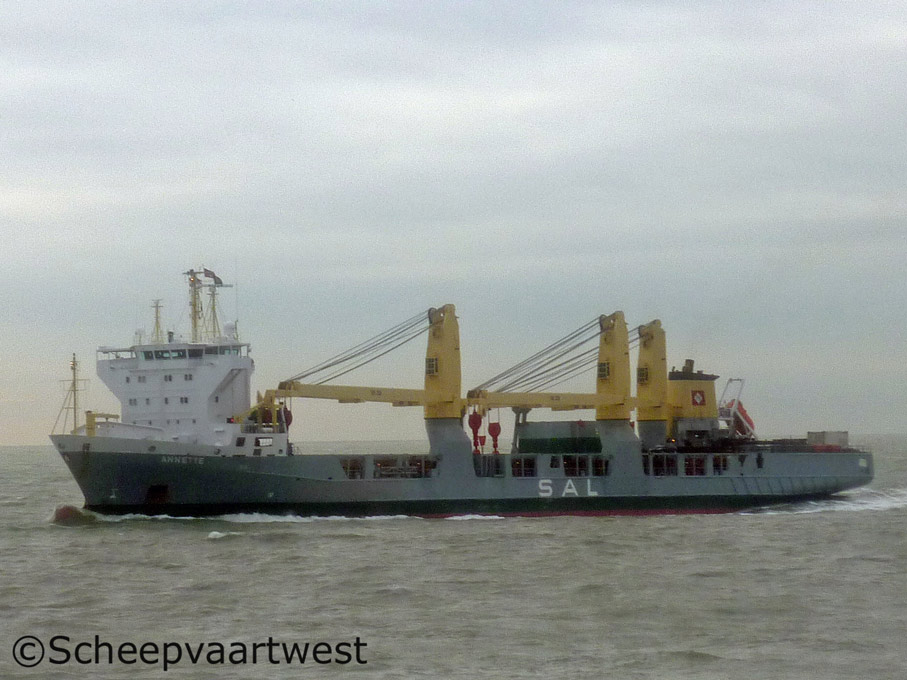

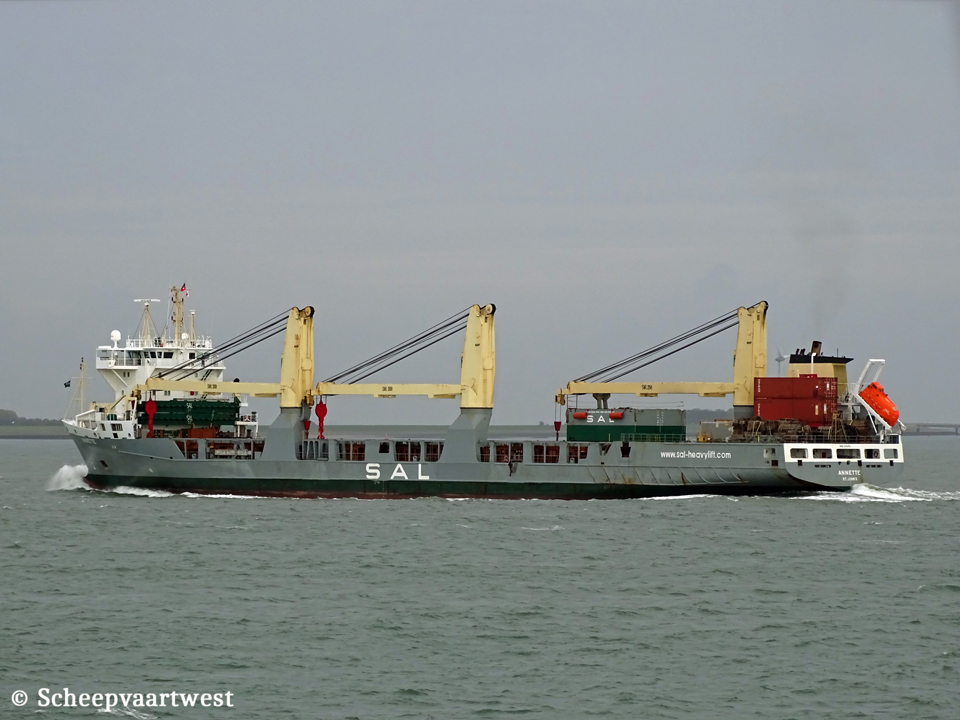

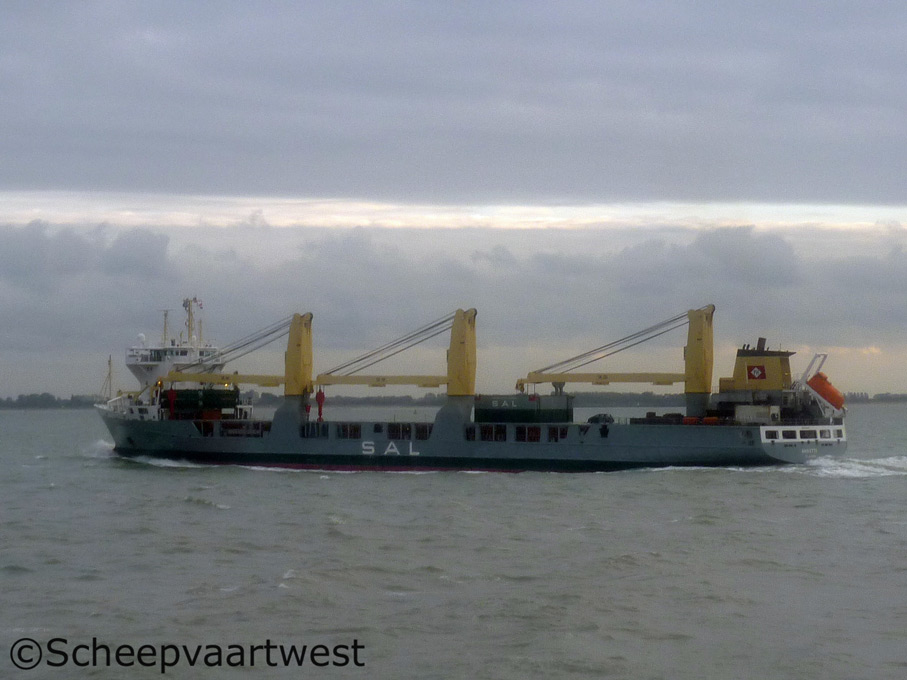

| Westerschelde 08/10/19 | Westerschelde 12/10/11 | Westerschelde 12/10/11 | Antwerpen 14/12/15 |
|
Name |
ANNETTE |
|
Type |
Multi-purpose dry cargo ship - strengthened for heavy cargo - Heavy lift ship |
|
IMO-number |
9266554 |
|
Call sign |
V2OL8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
8.383 t Suez: 8.585,57 t |
|
DWT |
8,919 t |
|
NT |
4.196 t Suez: 6.934,99 t Panama: 7.624 t |
|
Number of 20ft containers |
832 |
|
Cantainer capacity 14t |
600 |
|
Reefer capacity |
50 |
|
Displacement |
14.980 t |
|
Length |
151,67 m overall 142,10 m between perpendiculars 143,32 m registered |
|
Breadth |
20,40 m moulded 21,02 m overall |
|
Draught |
Summer: 7,85 m |
|
Forecastle |
21,78 m |
|
Poop |
23,10 m |
|
Freeboard |
2.179 mm |
|
Depth |
10,50 m moulded |
|
Speed |
20,0 knots |
|
Built |
2003 |
|
Keel laid |
03/03/1999 |
|
Launch date |
01/10/2003 |
|
Date of completion |
05/12/2003 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1137 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9L48/60 - 4 stroke 9 cylinder 480 x 600 mm combustion engine 9.450 kW / 12.852 hp at 500 rpm Reduced Power: 4.995 kW Year of manufacture: 2003 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boiler |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 157,5 m² Year of manufacture: 2003 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH Justus-von-Liebig-Ring 4-6 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
3x Plant 380/220 V - 700 kVA 1x Plant 380 V - 1.625 kVA 1x Plant 380 V - 430 kVA |
|
Shaft generator |
1.625 kVA |
|
Generator |
3x Main diesel generatorsets each 700 kVA |
|
Emergency generator |
1x Diesel generatorset 430 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 475 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 900 kW, forward |
|
Number of holds |
1 82,90 x 15,80 x 10,95 m |
|
Hold capacity |
13.604 m³ / 480.430 ft³ |
|
Number of hatches |
1 |
|
Hatch cover |
MacGregor hydraulic operated combined folding type and lift and roll type |
|
Free deck space |
2.263 m² |
|
Tank capacities |
Gas oil: 224,23 m³ Heavy fuel oil: 1.106,35 m³ fresh water: 137,71 m³ Ballast water: 3.992,12 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m Diameter: 50 mm |
|
Lifting equipment |
2x Cranes - SWL 350 t - Combinable up to 770 t 1x Crane - SWL 250 t Auxiliary hoist 2x SWL 40 t 1x SWL 35 t |
|
Crew |
16 |
|
Manager |
SAL Ship Management UG (haftungsbeschränkt) & Co. KG Brooktorkai 20 20457 Hamburg Germany |
|
Previous managers |
2003 - 2010 Lühe Engineering GmbH, Steinkirchen - Germany 2010 - 2011 SAL Heavy Lift Engineering GmbH |
|
Owner |
SAL Heavy Lift GmbH & Co. Ltd. Brooktorkai 20 20457 Hamburg Germany |
|
Previous owner |
2003 - 2003 MS 'ANETTE' Hans und Klaus Heinrich KG 2003 - 2011 HLL Heavy Lift + Load "ANNETTE" GmbH & Co. KG 2011 - 2012 SAL Schiffahrtskontor Altes Land GmbH & Co. KG, Steinkirchen - Federal Republic of Germany |
|
Special annotation |
Stability pontoon for heavy cargo |
|
Latest data adjustment |
07 May 2021 |
