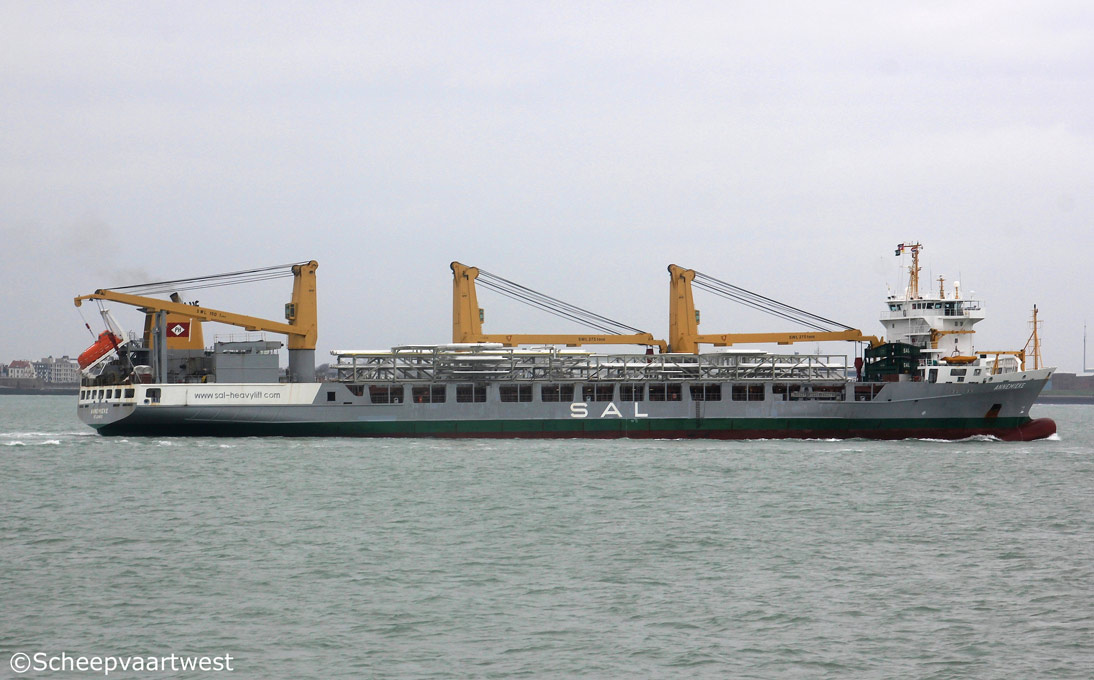

| Westerschelde 11 November 2015 |
 |
 |
 |
 |
|||

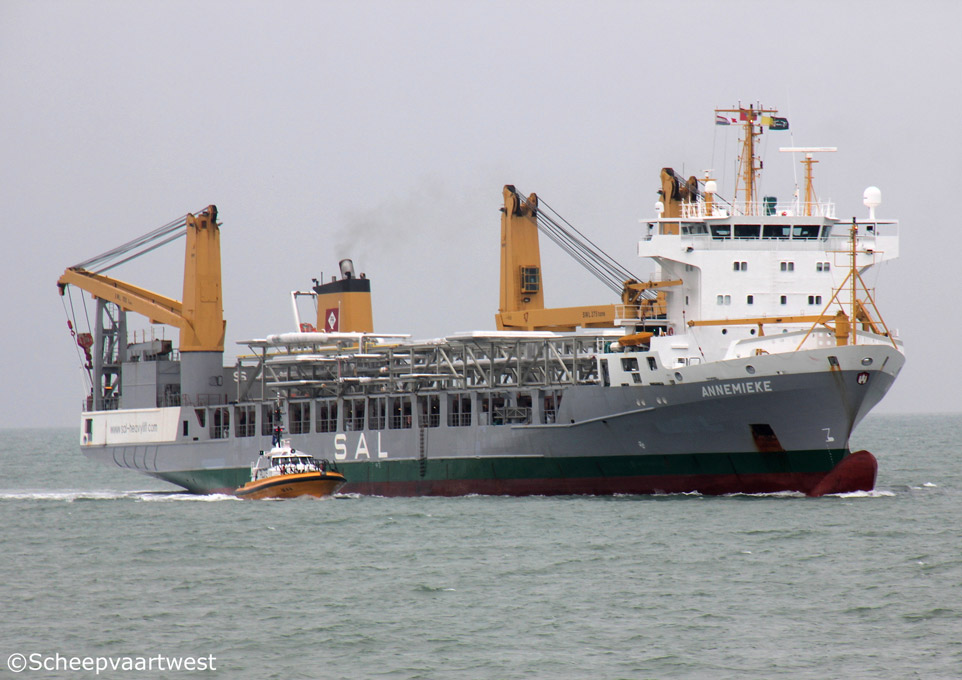

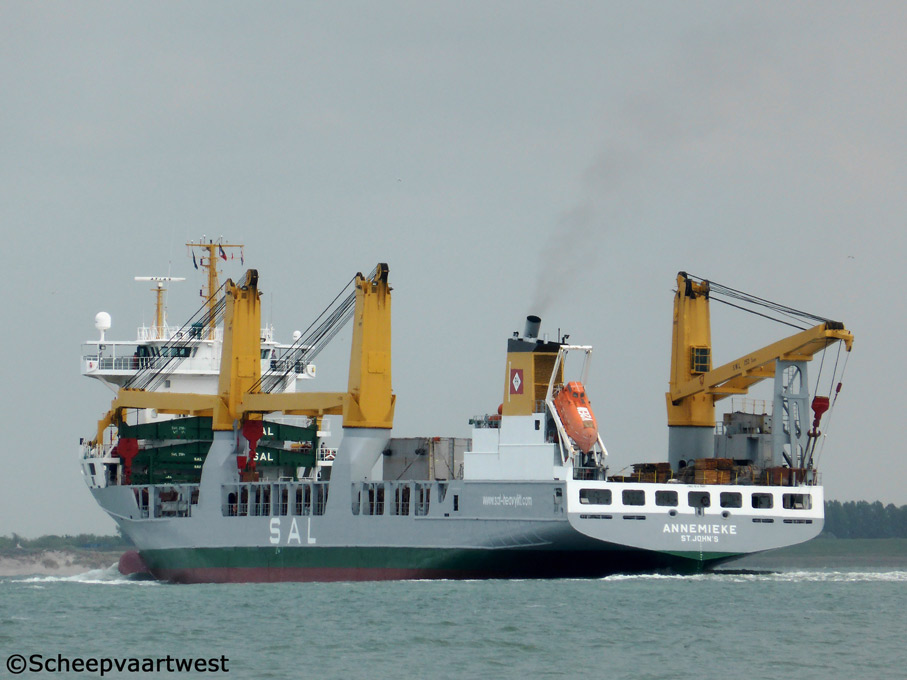

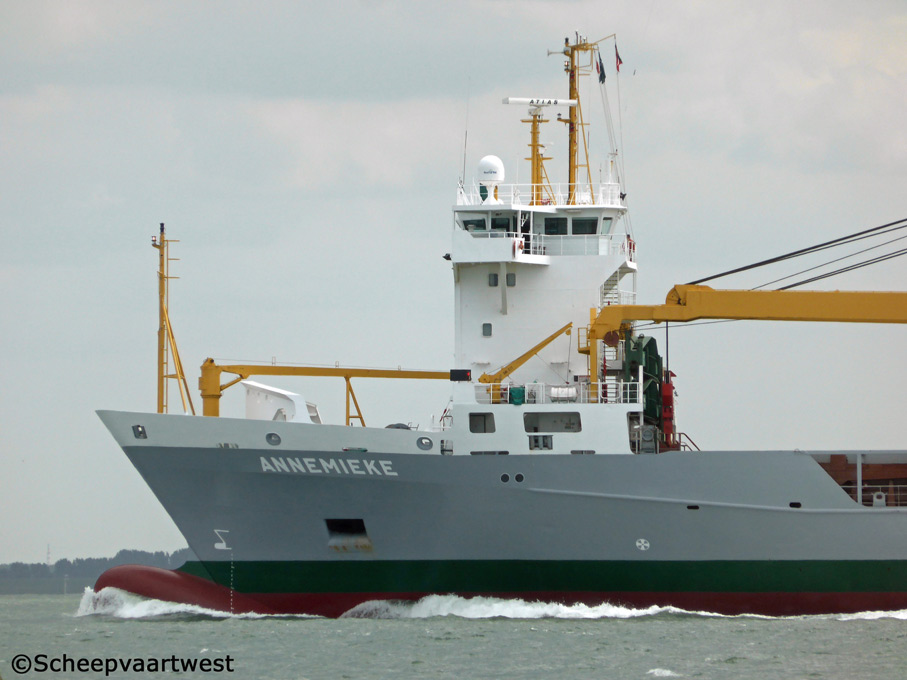

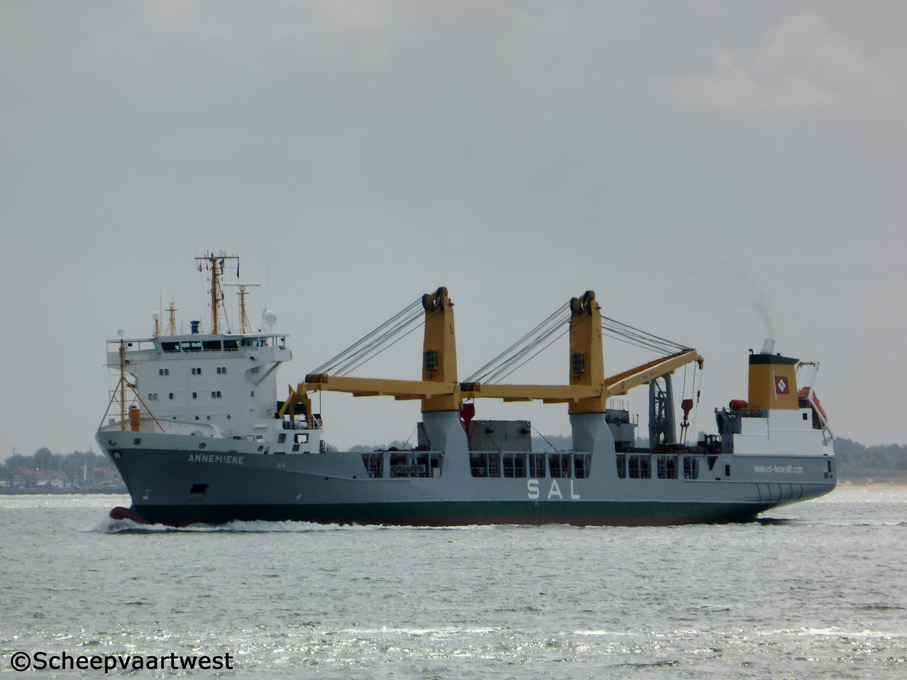

| Westerschelde 11/11/15 | Westerschelde 01/06/15 | Westerschelde 01/06/15 | Westerschelde 01/06/15 |
|
Name |
ANNEMIEKE |
|
Previous names |
1998 - 02.2011 Annemieke 02.2001 - 07.2012 Green Ocean |
|
Type |
General cargo ship - Strengthened for heavy cargo - |
|
IMO-number |
9147681 |
|
Call sign |
V2EM |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
8.388 t Suez: 8.561,34 t |
|
DWT |
Summer: 9.544 t |
|
NT |
4.178 t Suez: 6.903,77 t Panama: 7.628 t |
|
Displacement |
Summer: 14.880 t |
|
Length |
151,63 m overall 142,10 m between perpendiculars 143,32 m registered |
|
Breadth |
20,40 m moulded 20,65 m overall |
|
Draught |
Summer: 7,84 m |
|
Forecastle |
21,78 m |
|
Poop |
23,10 m |
|
Freeboard |
Summer: 2.679 mm |
|
Depth |
10,50 m moulded |
|
Speed |
19,0 knots |
|
Built |
1998 |
|
Keel laid |
15.02.1996 |
|
Launch date |
17.03.1998 |
|
Date of completion |
04.1998 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1121 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 9L48/60 - 4 stroke 9 cylinder 480 x 600 mm diesel engine - 9.450 kW / 12.852 hp at 500 rpm Reduced power: 4.995 kW Year of manufacture: 1997 Manufacturer: MAN B&W Diesel GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 157,5 m² Year of manufacture: 1998 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
3x Plant each 380/220 V - 380 kVA 1x Plant 380 V - 1.250 kVA 1x Plant 380 V - 430 kVA |
|
Shaft generator |
1x 1.250 kVA |
|
Generators |
3x Main diesel generatorsets each 380 kVA |
|
Emergency generator |
1x Diesel generatorset 430 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 475 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS 750 kW / 1.020 hp, forward |
|
Number of holds |
1 Dimensions: 82,90 x 15,80 x 11,17 m |
|
Cargo hold capacity |
Grain: 14.007 m³ Bales: 13.614 m³ |
|
Number of hatches |
1 |
|
Hatch cover type |
MacGregor hydraulic operated combined folding type and lift and roll type |
|
Free deck space |
2.120 m² |
|
Tank capacities |
Fuel oil: 1.083,35 m³ Water ballast: 3.979,10 m³ Fresh water: 123,99 m³ Gas oil: 214,22 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Cargo gear |
2x Cranes - SWL 275 t each (in combination 550 t) 1x Crane - SWL 150 t SWL |
|
Manager |
SAL Heavy Lift GmbH (member of the “K” Line Group) |
|
Registered owner |
SAL Heavy Lift GmbH |
|
Latest data adjustment |
21 July 2015 |
