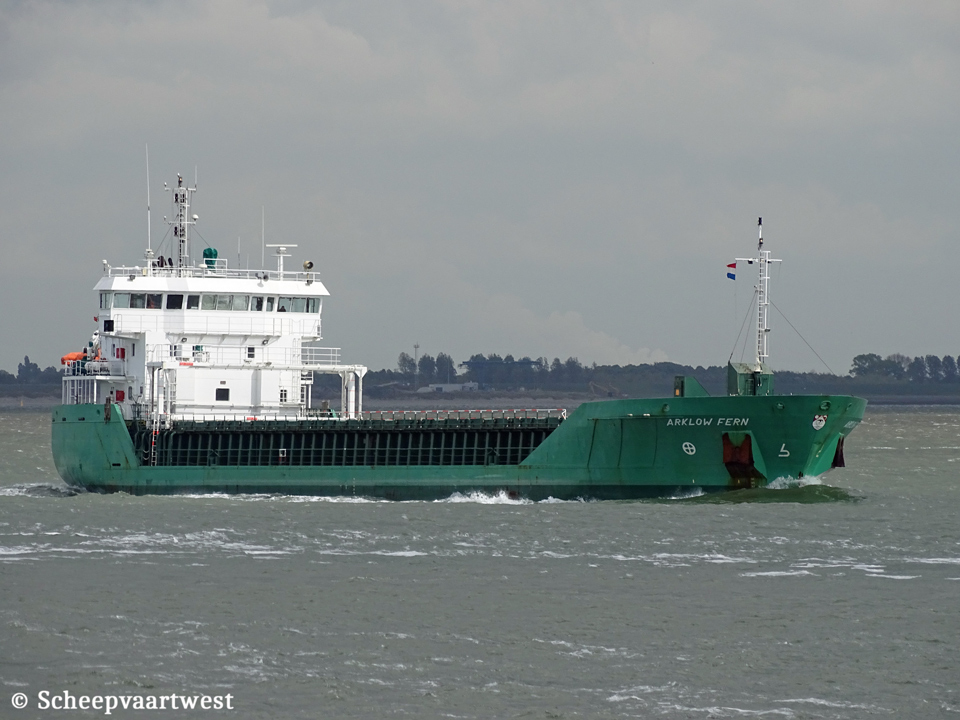

Westerschelde 08 May 2019 |
 |
 |
|

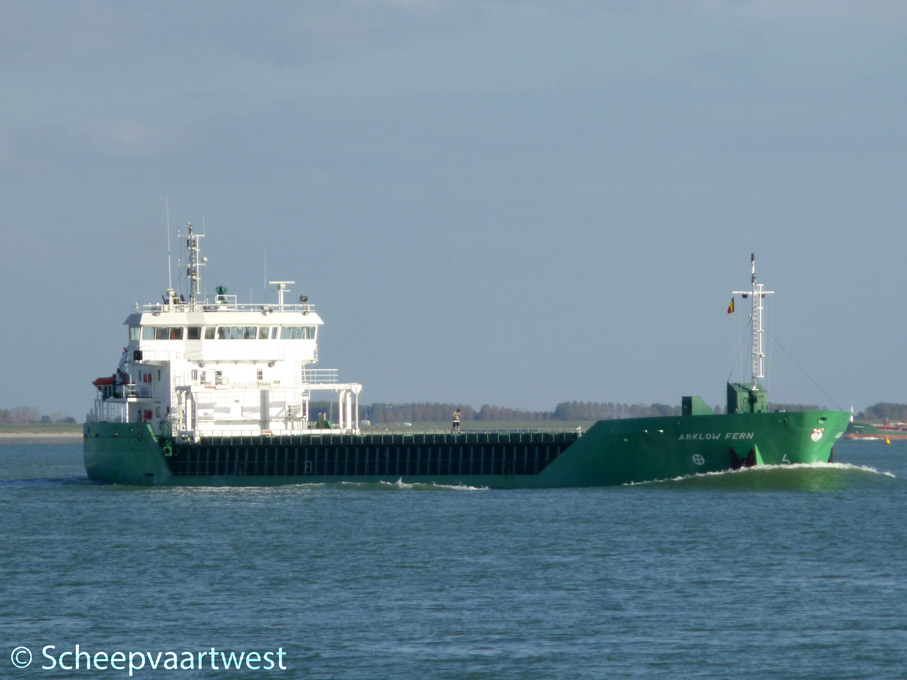

| Westerschelde 10/10/12 | Westerschelde 26/04/18 | |
|
Name |
ARKLOW FERN |
|
Previous names |
2010 - 09/2010 Arklow Femme |
|
Type |
General cargo ship - heavy cargo |
|
IMO-number |
9527661 |
|
Call sign |
EIJW5 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
4.960 t |
|
NT |
1.673 t |
|
Displacement |
6.479 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
5,79 m |
|
Air draft |
Min: 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
12,5 knots |
|
Built |
2010 |
|
Date of completion |
16/09/2010 |
|
Builder |
Astilleros De Murueta S.A. Murueta Vizcaya Spain |
|
Yard number |
285 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x May be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L27/38- 4 stroke 6 cylinder 270 x 380 mm combustion engine 2.040 kW / 2.772 hp at 800 rpm Built: 25/02/2010 Builder: MAN B&W Diesel A/S, Frederikshaven - Denmark |
|
Propellers |
1x Screw propeller controllable pitch at 154 rpm |
|
Boilers |
1x CHO Viessmann 6,30 m² - 4,0 bar |
|
Shaft generator |
1x Stamford 643 kVA - 514 kW |
|
Generators |
2x Guascor SH74TAB-SG main diesel with generators Stamford HCM434C2 each 190 kVA - 152 kW - 231 hp at 1.500 rpm |
|
Emergency generator |
1x Guascor H33TSG diesel with generatorset Stamford UCM224G2 - 60 kVA - 48 kW - 72 hp at 1.500 rpm |
|
Bow thruster |
250 kW |
|
Number of holds |
1 |
|
Total capacity of holds |
Grain & Bales: 6.074 m³ - 214.491 ft³ |
|
Max. permitted loads |
Max. hatch top loading: 1,75 t/m² Max. tank top loading: 15 t/m² |
|
Hatch type |
Coops & Nieborg pontoon system |
|
Tank capacities |
Water ballast: 2.030 t Fuel oil: 165 t / 228,8 m³ Gas oil: 37 t Fresh water: 46,8 t Lub oil: 12,1 t |
|
Ventilation |
6 changes per hour |
|
Manager |
Arklow Shipping Wicklow Ireland |
|
Registered owner |
Arklow Shipping North Quay Arklow Ireland |
|
Latest data adjustment |
02 April 2021 |
