Westerschelde 13 February 2019 |
|
Name |

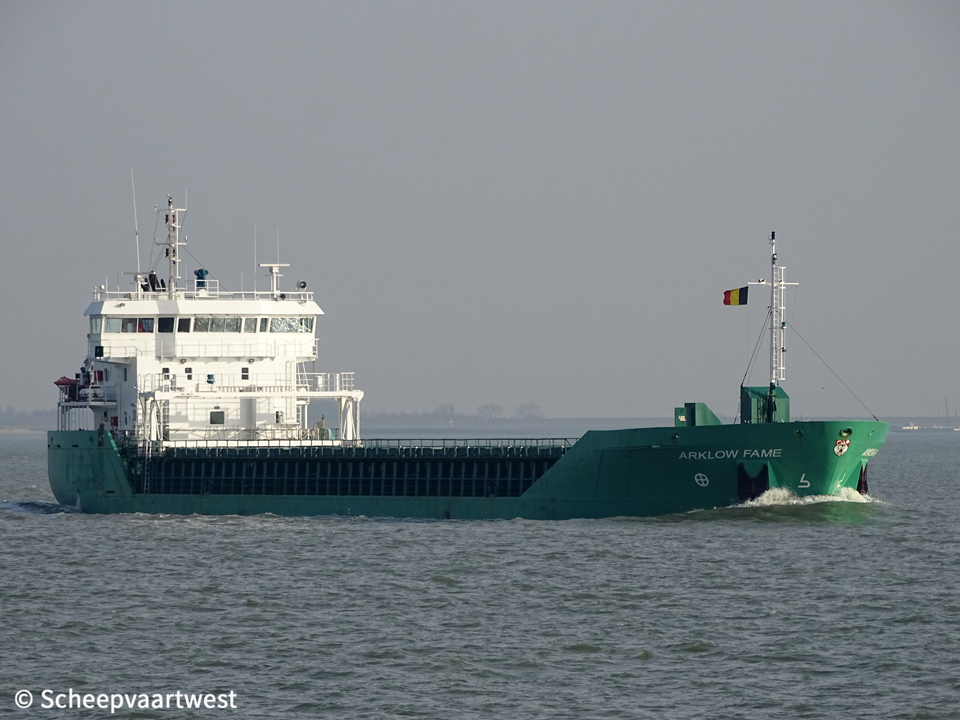

ARKLOW FAME |
|
Type |
General cargo ship - heavycargo - Container ship |
|
IMO-number |
9361720 |
|
Call sign |
EIXN |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
Summer: 4.889 t |
|
NT |
1.673 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,50 m extreme 14,40 m moulded |
|
Draught |
Max: 5,84 m 3,80 m ballast |
|
Air draft |
Min: 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2006 |
|
Date of completion |
17/10/2006 |
|
Builder |
Astilleros De Murueta S.A. Guernica Spain |
|
Yard number |
262 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.692 hp at 750 rpm Build: 2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 158 rpm |
|
Boilers |
1x CHO Viessmann 8,47 m² - 4,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x Stamford HCM534C2 390 kVA - 312 kW |
|
Generators |
2x Guascor SH74TAB-SG diesel engines each 175 kW at 1.500 rpm coupled with Stamford HCM434C2 each 190 kVA |
|
Emergency generator |
1x Guascor H33TSG diesel engine 50 kW at 1.500 rpm coupled with Stamford UCM224G2 - 60 kVA |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of cargo holds |
1 |
|
Total capacity of holds |
213.855,53 ft³ / 6.056 m³ incl. bulkheads 214.491.16 ft³ / 6.074 m³ excl. bulkheads |
|
Number of hatches |
1 63,00 x 11,70 m |
|
Hatch type |
Roden Staal pontoon system |
|
Max permitted loads |
Hatch top loading: 1,75 t/m² Tanktop loading: 15,0 t/m² |
|
Tank capacities |
HFO: 182 t Gas oil: 37 t Fresh water: 46,8 t Lub oil: 12,1 t Ballast: 2.030 t |
|
Crew size |
10 |
|
ISM & commercial manager |
Arklow Shipping ULC North Quay, Arklow, Co Wicklow Ireland |
|
Registered owner |
Invermore Shipping Ltd. Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC), North Quay, Arklow, Co Wicklow Ireland |
|
Renamed |
12/2021 Natalie Cyprus, Limassol - Call sign: 5BXE5 |
|
Latest data adjustment |
27 January 2022 |
