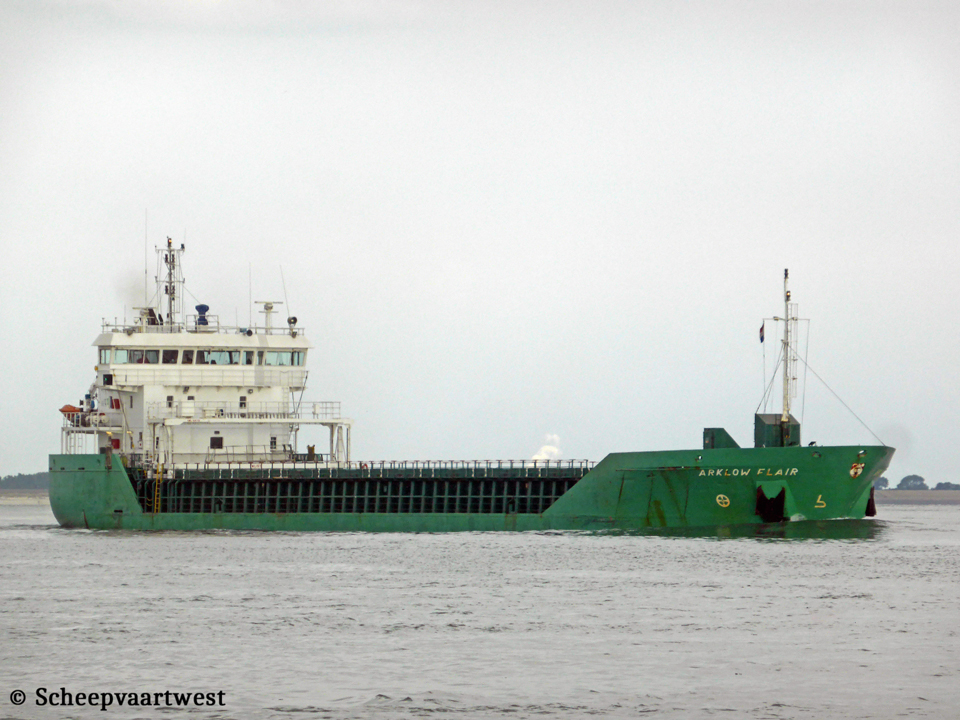

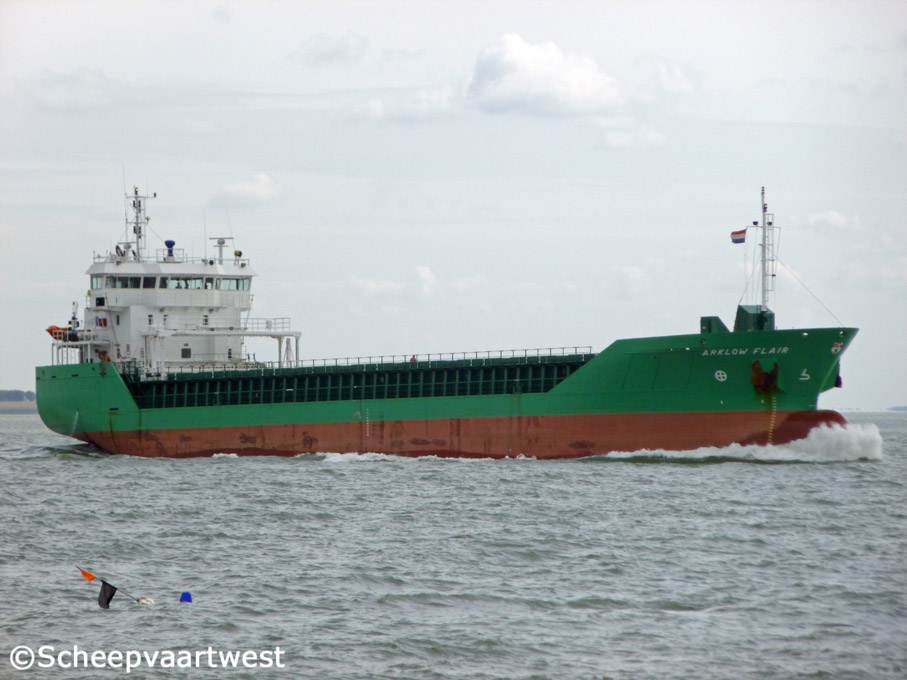

| Westerschelde 20 September 2012 |
 |
 |
 |
 |
|||

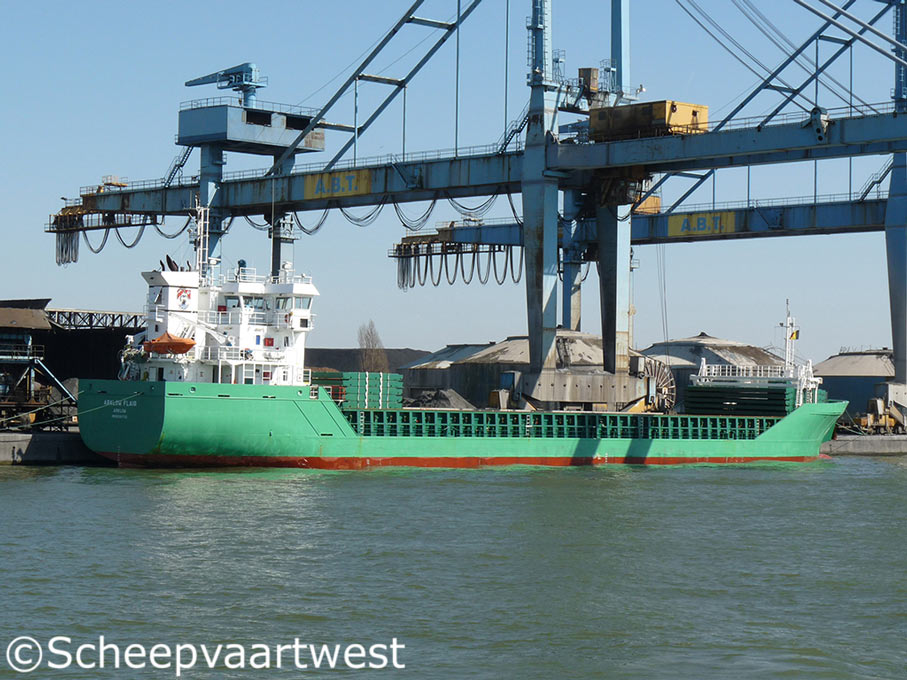

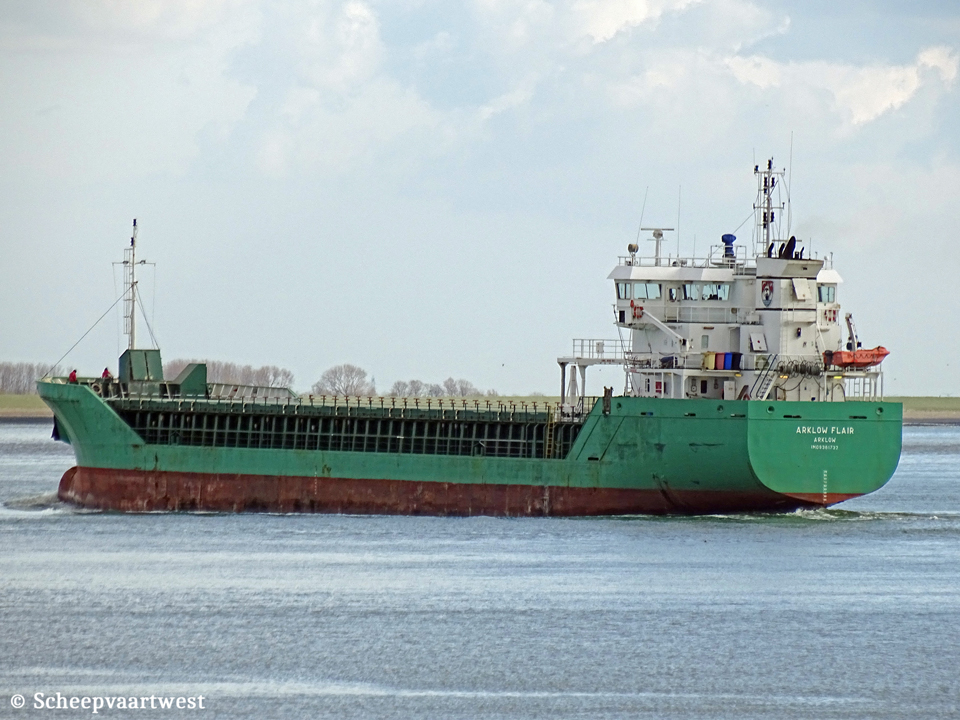

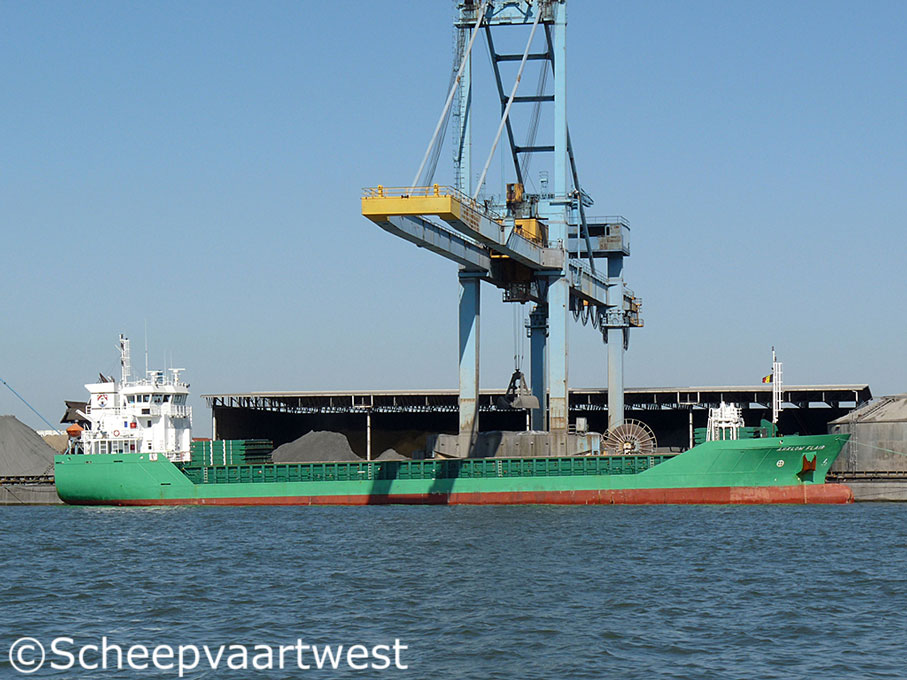

| Antwerpen 06/04/10 | Antwerpen 06/04/10 | Westerschelde 24/02/16 | Westerschelde 23/07/15 | |||
|
Name |
ARKLOW FLAIR |
|
Type |
Multi-purpose dry cargo carrier - Heavycargo |
|
IMO-number |
9361732 |
|
Call sign |
EIFW |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
4.855 t |
|
NT |
1.673 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,50 m over all 14,40 m moulded |
|
Draught |
6,27 m |
|
Air draft |
Min.: 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2007 |
|
Date of completion |
18/05/2007 |
|
Builder |
Astilleros De Murueta SA Guernica Spain |
|
Yard number |
263 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm with Reinjtes gearbox Build: 2006 Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany |
|
Electrical propulsion gen. |
1x 312 kW - 400 Volt |
|
Propeller system |
1x Controllable pitch propeller - aft at 158 rpm |
|
Boiler |
1x CHO Viessmann 8,47 m² - 4,00 bar |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x Stamford HCM534C2 |
|
Generators |
2x Guascor SH74TAB-SG diesel engines each 175 kW connected with 2 Stamford HCM434C2 generators each 190 kVA at 1.500 rpm |
|
Emergency Generators |
1x Guascor H33TSG diesel engine 50 kW connected with Stamford UCM224G2 generator 60 kVA at 1.500 rpm |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1 63,00 x 11,70 x 8,43 m |
|
Cargo capacity |
Grain & Bale: 213.855,53 ft³ / 6.056 m³ |
|
Number of hatches |
1 63,00 x 11,70 m |
|
Hatches type |
Roden Staal pontoon system |
|
Max permitted loads |
Maximum hatch top loading: 1,75 t/m² Maximum tank top loading: 15 t/m² |
|
Tank capacities |
Water ballast: 2.030 t Fuel oil: 183,3 m³ Diesel oil: 37 t Fresh water: 46,8 t |
|
Crew size |
10 |
|
ISM & commercial manager |
Arklow Shipping Limited North Quay Arklow Co. Wicklow Ireland |
|
Operator |
Arklow Shipping Limited |
|
Registered owner |
Invermore Shipping Ltd.,Arklow - Ireland Care of Arklow Shipping Unlimited Co. Wicklow Ireland |
|
Renamed |
20/05 2022 Schouwenbank The Netherlands, Delfzijl - Call sign: PETT Reg. owner: Bankship III B.V., Delfzijl - The Netherlands Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
15 July 2022 |
