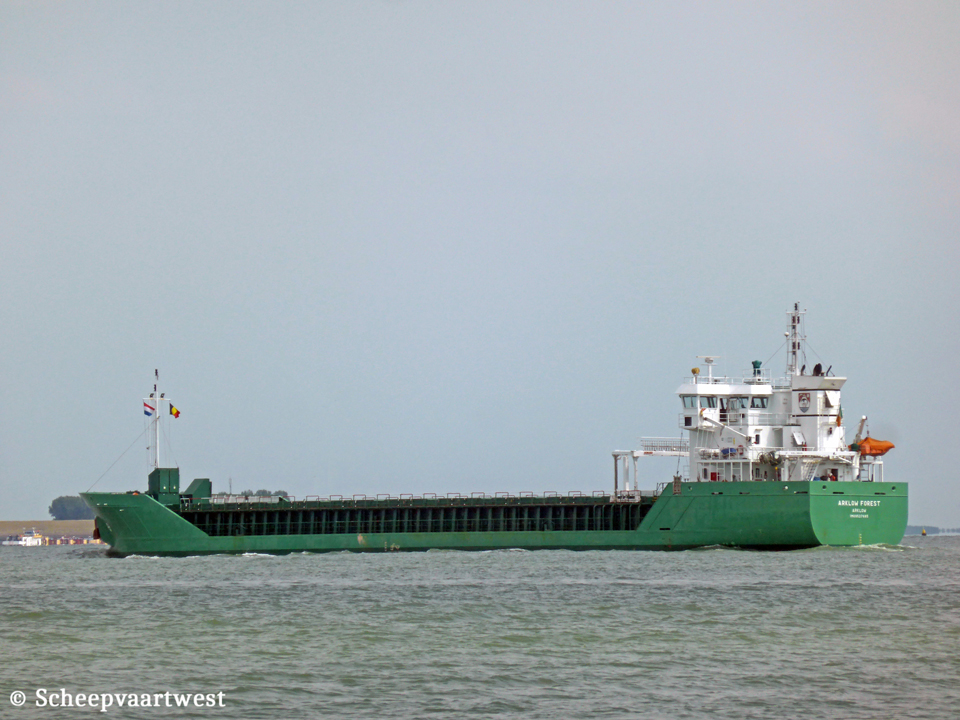

Westerschelde 28 September 2013 |
 |
|

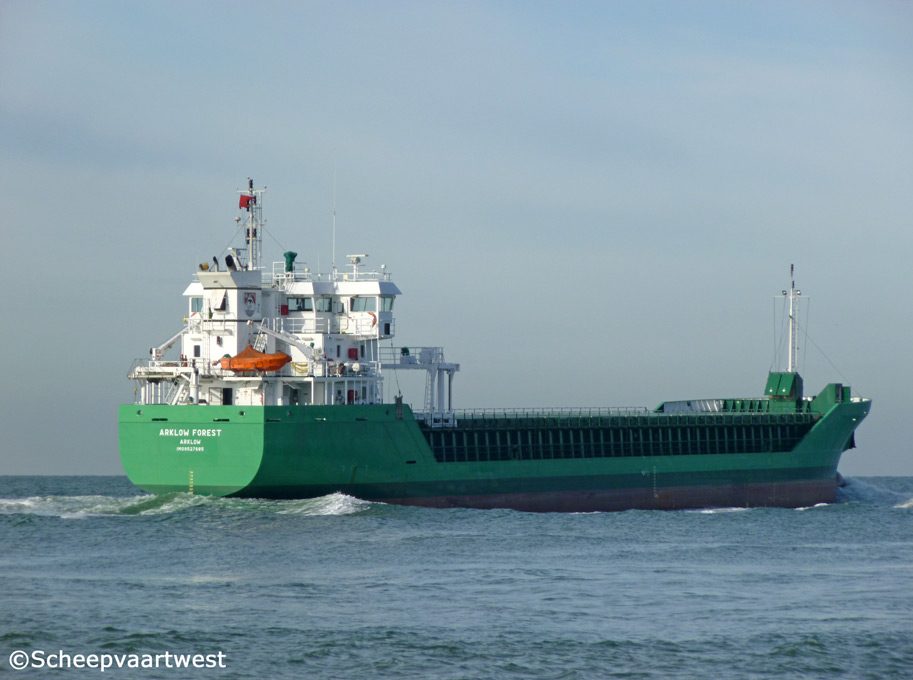

| Westerschelde 23/07/15 | |
|
Name |
ARKLOW FOREST |
|
Previous names |
Build as: Arklow Falcon |
|
Type |
General cargo - Carriage of dangerous goods - heavycargo |
|
IMO-number |
9527685 |
|
Call sign |
EILN7 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
Summer: 4.853,5 t winter: 4.734,5 t |
|
NT |
1.673 t |
|
Displacement |
6.479 t |
|
Light ship |
1.519 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,50 m extreme 14,40 m moulded |
|
Draught |
Summer: 6,28 m Winter: 6,14 m Ballast: 3,80 m |
|
Air draft |
Min. 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2011 |
|
Keel laid |
19/12/2008 |
|
Date of completion |
06/10/2011 |
|
Builder |
Astilleros De Murueta SA Guernica Spain |
|
Yard number |
287 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Movable bulkhead |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engine 2.040kW / 2.772 hp at 800 rpm Built: 07/09/2010 Builder: MAN-B&W Alpha Turbo ARS, Frederikshaven - Denmark |
|
Propellers |
1x Controllable pitch propeller - aft at 154 rpm |
|
Boilers |
1x CHO Viessmann 6,30 m² - 4,0 bar |
|
Shaft generator |
1x Shaft alternator Stamford 642 kVA - 514 kW |
|
Generators |
2x Guascor SH74TAB-SG diesel engine each175 kW connected with Stamford HCM434C2 generators each 190 kVA |
|
Emergency generator |
1x Guascor H33TSG diesel engine 50 kW connected with UCM224G2 generator 60 kVA |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1x Parallel hold 63,00 x 11,70 x 8,43 m |
|
Hold capacity |
Grain & bale: Incl. Bulkheads: 213.855,53 ft³ / 6.056 m³ Excl. bulkheads: 214.491,16 ft³ / 6.074 m³ |
|
Number of hatches |
1 63,00 x 11,70 m |
|
Hatch type |
Coops & Nieborg pontoon system |
|
Max. loading |
Hatch top loading: 1,75 t/m² Tank top loading :15,0 t/m² |
|
Ventilation |
Mechanical ventilation – 6 changes per hour in empty hold |
|
Tank capacities |
Ballast: 2.030 t Fuel oil: 165 t Diesel oil: 37 t Fresh water: 46,8 t Lub oil: 12,1 t |
|
ISM & commercial manager |
Arklow Shipping ULC North Quay Arklow Ireland |
|
Registered owner |
Arklow Shipping ULC North Quay, Arklow Co Wicklow Ireland |
|
Latest data adjustment |
02 July 2024 |
