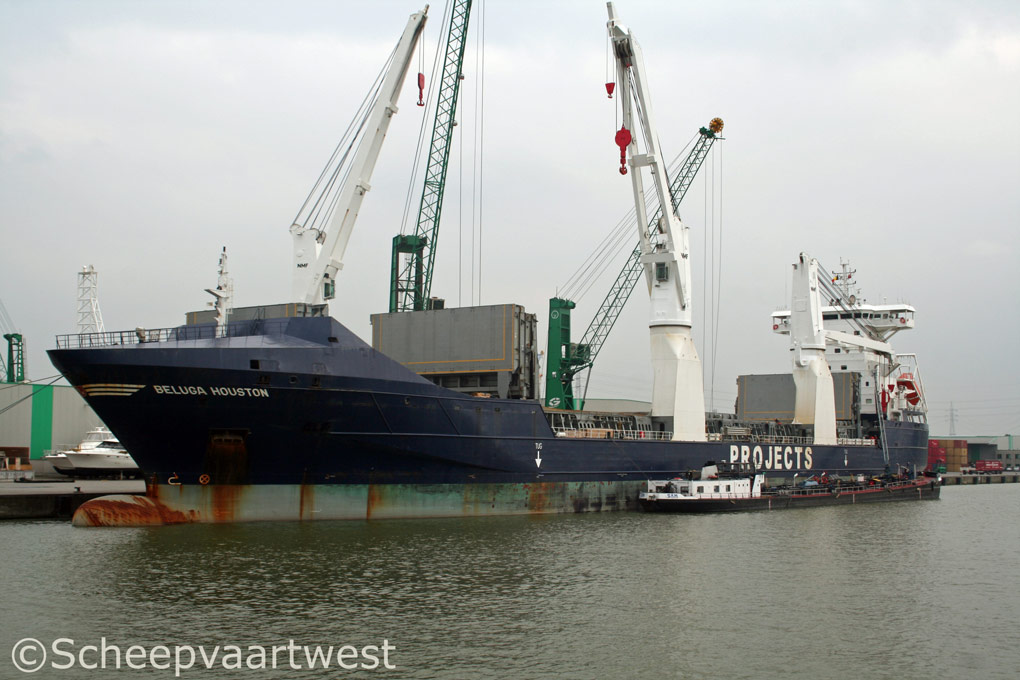

Beluga Houston 01
Antwerpen 20 May 2011



Name

BELUGA HOUSTON

Previous names

Beluga H

Type

Multi-purpose dry cargo ship
Super heavy lift ship

IMO-number

9424546

Call sign

ZDJM8

Flag

Gibraltar

Port of registry

Gibraltar

GT

17.628 t

DWT

20.170 t

NT

6.617 t

Number of 20ft containers

974

Length

168,65 m overall

155,79 m registered

Breadth

25,20 m registered

Draught

9,50 m

Forecastle

15,77 m

Poop

16,20 m

Depth

13,85 m moulded

Speed

17,0 knots

Built

2009

Keel laid

02.03.2009

Launch date

07.10.2009

Date of completion

28.11.2009

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.
2851, Pudong Dadao
226361 Shanghai
People's Republic of China

Yard number

H1526A (B677)

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAN 7L58/64 - 4 stroke 7 cylinder 580 x 640 mm diesel engine - 9.800 kW at 428 rpm

Year of manufacture: 2008

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 146 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 115,0 m²

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 32,0 m²

Year of manufacture: 2009

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 450 V - 1.063 kVA

1x Plant 450 V - 1.063 kVA

1x Plant 450 V - 1.063 kVA

1x Plant 450 V - 1.200 kVA

1x Plant 450 V - 187,5 kVA

1x Plant 24 V - 170 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 1.200 kVA

Generators

3x Main diesel generatorsets each 1.063 kVA

Emergency generator

1x diesel generatorset 187,5 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for UPS radio each 200 Ah

2x Batteries for automation each 170 Ah

Compressed air receivers

2x Receivers each 1.500 litres - 30,0 bar

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres- 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

1x Receiver 400 litres - 8,0 bar

1x Receiver 100 litres - 8,0 bar

Bow thruster

1x Transverse thruster 800 kW, forward

Water ballast

12.000 m³

Cargo gear

1x Crane - SWL 120,00 / 95,00 / 75,00 / 55,00 t

2x Cranes - SWL each 400,00 / 325,00 / 200,00 t

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Crew size

27

Manager

Beluga Fleet Management GmbH & Co. KG
Teerhof 59
28199 Bremen
Federal Republic of Germany

Operator

Projects

Owner

Beluga Shipping GmbH & Co. KG MS "BELUGA HOUSTON"
Teerhof 59
29199 Bremen
Federal Republic of Germany
