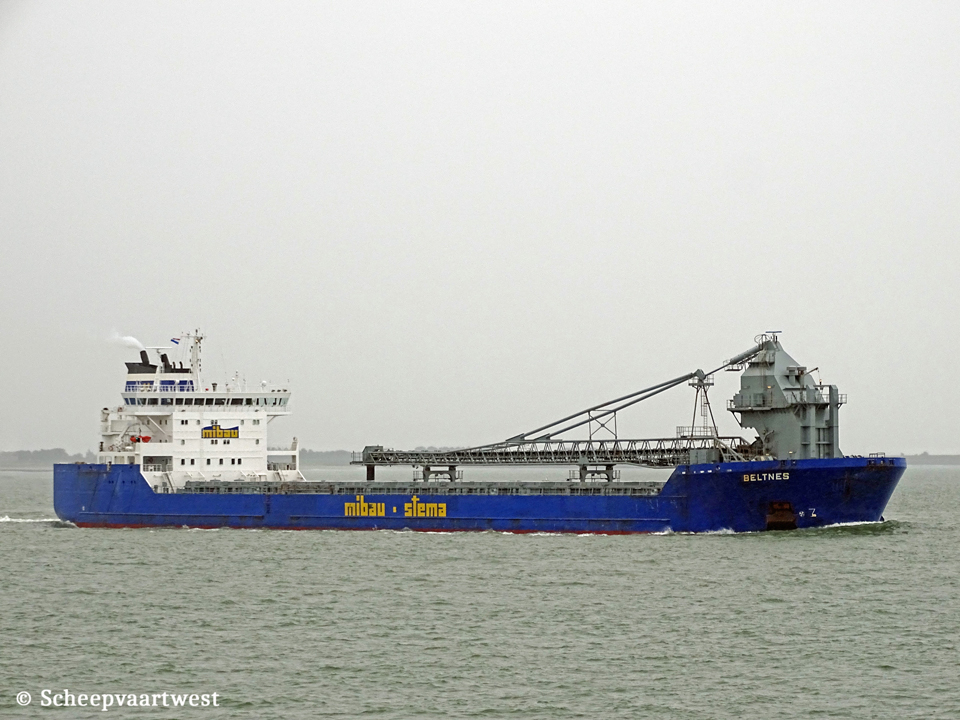

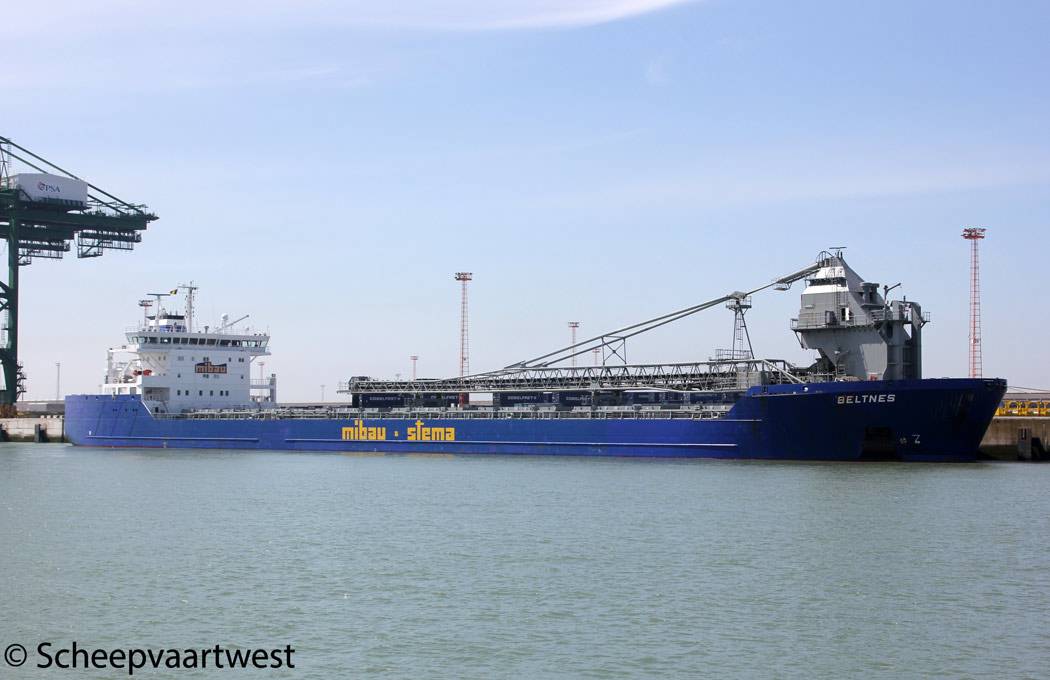

Beltnes 03
Zeebrugge 06 May 2013

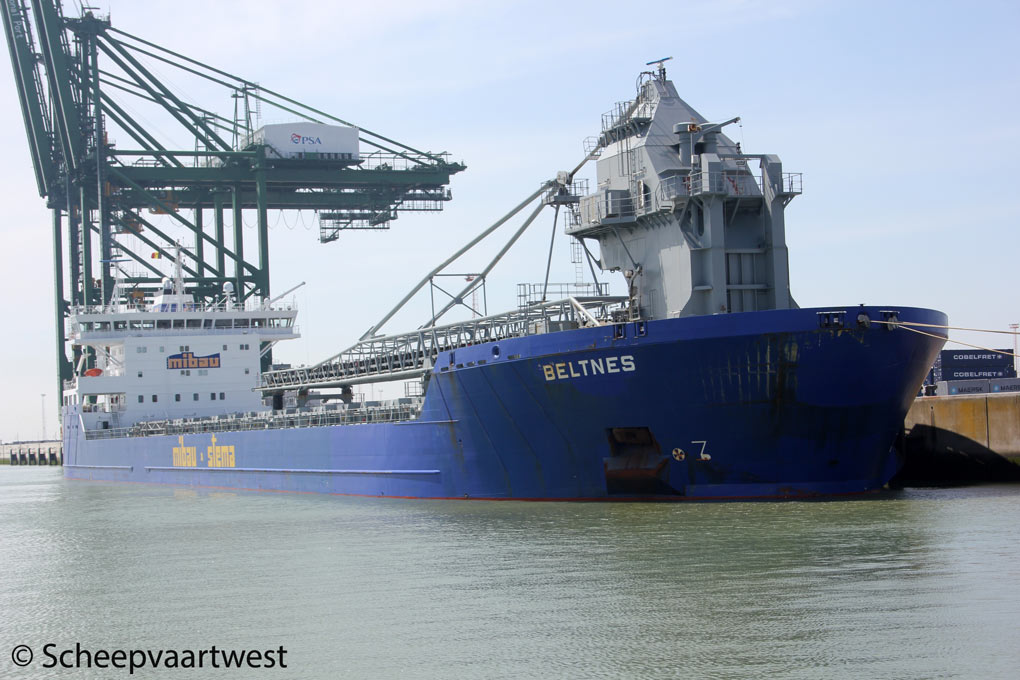

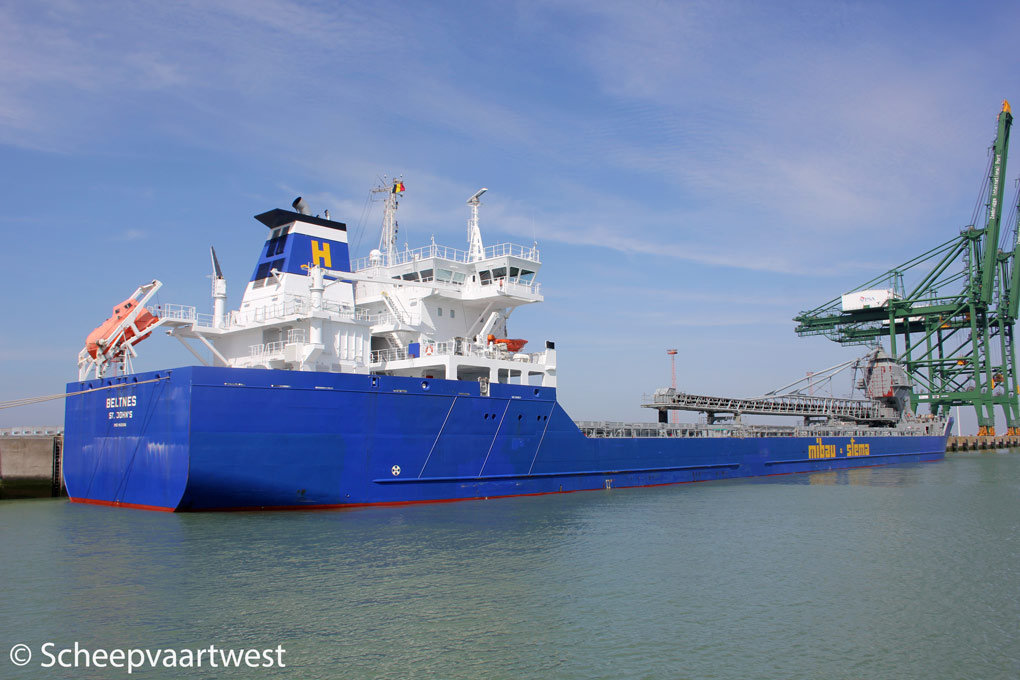

Beltnes 01   Beltnes 02
Zeebrugge 06/05/13 Zeebrugge 06/05/13



Name

BELTNES

Type

Self discharging bulk carrier

IMO-number

9432206

Call sign

V2EG7

Flag

Antigua & Barbuda

Port of registry

St. john's

GT

20.234 t

DWT

33.173 t

NT

7.085 t

Light ship

8.394 t

Length

175,60 m overall

169,36 m registered

Breadth

26,00 m registered

Draught

10,81 m

Air draft

Abt.: 37,00 m

Forecastle

19,56 m

Poop

26,60 m

Depth

15,10 m moulded

Speed

14,0 knots

Built

2009

Keel laid

18.12.2007

Launch date

29.05.2009

Date of completion

14.08.2009

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1310

Hull material

Shipbuilding steel (standard)

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAK 8M43C - 4 stroke 8 cylinder 430 x 610 mm diesel engine - 7.300 kW at 500 rpm

Year of manufacture: 2009

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 137,0 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 43,6 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 272,6 m²

Year of manufacture: 2008

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

3x Plants each 450 V - 1.138 kVA

1x Plant 450 V - 2.250 kVA

1x Plant 450 V - 220 kVA

1x Plant 24 V - 180 Ah

Shaft generator

1x 2.250 kVA

Generators

3x Caterpillar main diesel generatorsets each 1.138 kVA / 970 kW

Emergency generator

1x Diesel generatorset 220 kVA

Batteries

2x Batteries for start emergency engine each 180 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

1x Receiver 750 litres - 11,0 bar

Bow thruster

1x Pitch Brunvoll transverse thruster - 1.500 kW, forward

1x Pitch Brunvoll transverse thruster - 950 kW, aft

Number of holds

7

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Crew size

25

Manager

HJH Shipmanagement GmbH & Co. KG
Finkenhoerne 4
21781 Cadenberge
Federal Republic of Germany

Operator

Stema Shipping AS
Nyhavn 28
Aabenraa
Denmark

Registered owner

Reederei Hans-Jürgen Hartmann MS "BELTNES" GmbH & Co. KG
Gewerbestr. 3
21781 Cadenberge
Federal Republic of Germany

Last update

21.05.2013
