| Antwerpen 06 April 2010 |
|
Name |

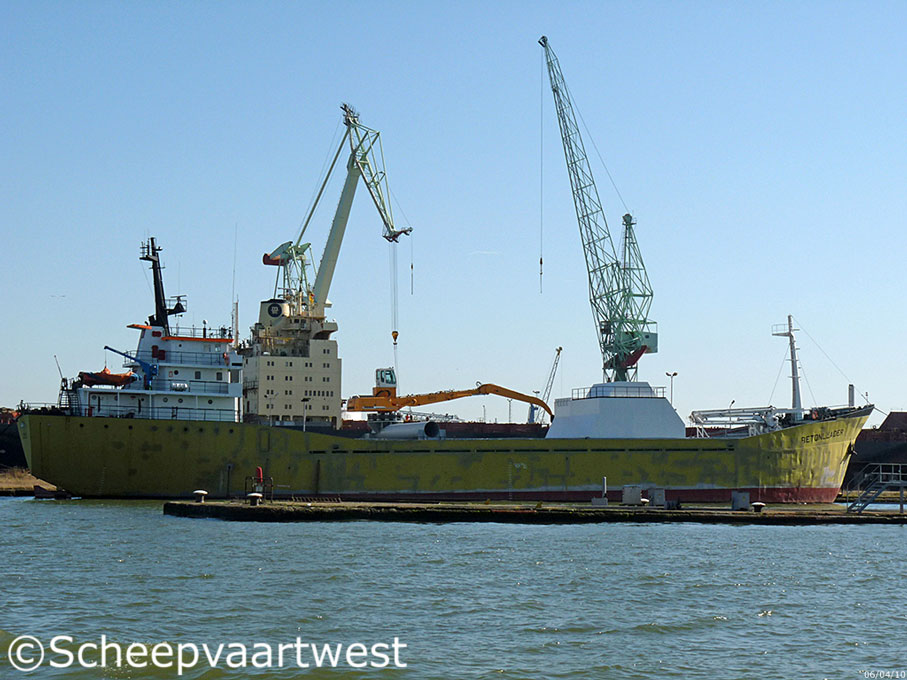

BETON LEADER |
|
Previous names |
1977 Centotre 1988 Depatre 1991 Blue Dream 1994 Nancy 2002 Aliza |
|
Type |
General cargo / multi-purpose Fully self supporting |
|
IMO-number |
7432848 |
|
Call sign |
D6CQ9 |
|
Flag |
Union of Comoros |
|
Port of registry |
Moroni |
|
GT |
1.788 t |
|
DWT |
3.200 t |
|
NT |
1.045 t |
|
Lightship |
1.072,96 t |
|
Length |
81,35 m overall 75,20 m between perpendiculars |
|
Breadth |
13,54 m |
|
Draught |
Summer: 6,53 m |
|
Depth |
6,51 m moulded |
|
Speed |
10,5 knots |
|
Built |
1977 |
|
Date of completion |
07.1977 |
|
Builder |
Cantieri Navale Visentini S.p.A. |
|
Yard number |
1599 |
|
Hull type |
Fully flat bottom |
|
Main engine |
1x Ansaldo SA Q320/12RSN - 12 cylinder diesel engine - 1.471 kW Builder: Ansaldo SPA, Genova - Italy |
|
Propeller |
1x Fixed - Right turning |
|
Generators |
2x MWM D 232 V8 - 8 cylinder diesel engine - each output 80 kW |
|
Emergency generator |
1x MWM type 226/4 - 4 cylinder diesel engine - Output 60 kW |
|
Capacities |
Cement: 500 t ( pneumatic loading in 4 silos) Fresh water: 240 m³ Aggregate/ sand: 2.000 t Additives: 28 t |
|
Concrete plant |
Type: Swing M2 Capacity: 80 m³/h Mixer: 2 m³/charge Concrete pumps: 1x 100 m³ Pump distance max.: 1.000 m Placing boom 30,00 m |
|
Crane |
1x Liebherr P944 crane |
|
Manager |
Levra N.V. |
|
Registration Owner |
Levra N.V. Belgium |
